Siemens Electrical Buttons Small Concrete Polisher For Large Building Floor
Siemens Electrical Buttons Small Concrete Polisher For Large Building Floor
Siemens Electrical Buttons Small Concrete Polisher For Large Building Floor
Siemens Electrical Buttons Small Concrete Polisher For Large Building Floor
Specifications
Brand Name :
HONWAY
Model Number :
HW--G10
Certification :
CE SGS ISO9001
Place of Origin :
China
MOQ :
1Set/Sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
100 Set/Sets month
Delivery Time :
7 working days
Packaging Details :
High Density Polyethylene pallet; Conform to export standard.
Voltage :
220V-240V/1P/3phrase 380V-440V 3phrase
Frepuency :
50/60HZ
Power output :
10hp(7.5KW)
Inverter power :
15hp（11KW）
Motor speed :
300-1800rmp
Grinding width :
650mm
Disc diameter :
250mm*4 plates
Description

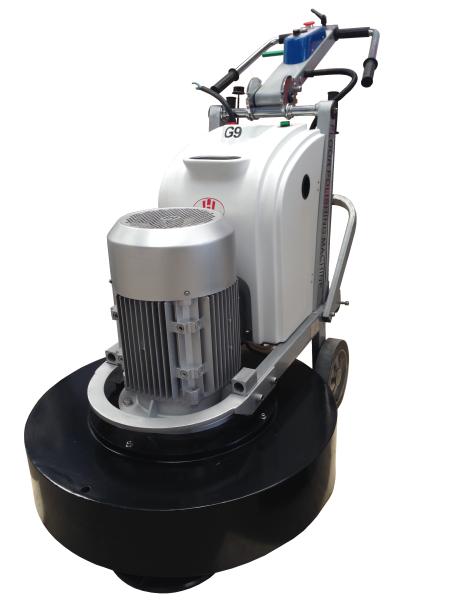

Siemens Electrical Buttons Floor Grinding and Polishing for Large Building Floor

HW-G10, grinding width 650mm, motor 10hp, inverter 15hp, 220V and 380V are both available.

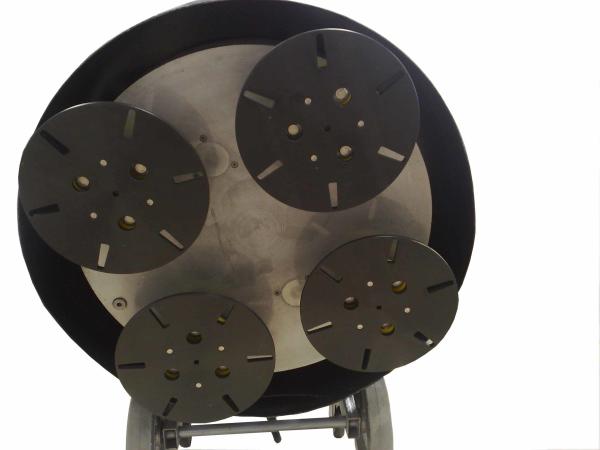

Four small plates and the big plate rotate smoothly, zero torque force, even a 10 years old child can operate it.

Four disc planetary type, offers high performance and efficiency than the ones with only 3 plates.

Application:

Grinding and polishing floors of concrete, stone, terrazzo, epoxy and etc.

Fits kinds of tools including resin bond diamond pads, metal bond diamond pads, frankfurt, PCD blades, sandpaper, etc.

Parameters

Voltage 220-240V ,1P/3phrase 380V-440V, 3phrase
Frequency 50/60HZ 50/60HZ
Current 26.7A 15.5A
Power Output 10hp(7.5KW) 10hp(7.5KW)
Inverter power 15hp(11KW) 15hp(11KW)
Motor speed 300-1800rpm 300-1800rpm
Grinding width 650mm 650mm
Disc Dianeter 250mm*4plate 250mm*4plate
N.W 270KG 270KG
Water Tank 30L 30L
Dimension 970*650*950mm 970*650*950mm

Features

1, Dual rear wheel, independently driven, steering easily.

2, Automatic level adjust system ensures good smoothness and stable operation.

3, Easily changes the rotation of the grinding discs.

4, Multifunctional operation panel, adiustable height.

Siemens Electrical Buttons Small Concrete Polisher For Large Building Floor

Siemens Electrical Buttons Small Concrete Polisher For Large Building Floor

Company introduction

Changsha Honway Machinery Co., Ltd is the professional manufacturer for floor scarifying & grinding & polishing machine in China. We are located in Changsha city which is well known as the capital of construction machinery in China. This city has the abundant supply of machinery engineers, workers, technique, workcraft, etc. Our company develops here and builds up as a manufacturing the machines for ‘Concrete Superflat floor’.

After Sell Service

  1. One year of warranty for machine.
  2. We always supply the consumables.
  3. We always supply the spare parts for all the old models.
  4. The spare parts can be sent out immediately at any time, delivered by DHL.
  5. The CD and operation manual is sent with machine to guide the installation process works and repair problems.
  6. All machines are tested, and the testing record will be kept, before it leaves factory.
  7. If the customers visit our factory, we could provide the training lessons.

FAQ

Q: Where is your factory?

A: It is located in Changsha, Hunan province. Welcome you come to our factory and produce process at any time.

Q: What kind of machine you supply?

A: Concrete grinding machine, concrete scarifying machine, diamond tools.

Q: What voltage of your machine?

A: 380V three phase,220V three phase and 220V single phase.

Q: What certificates of your machine?

A: 3C CE SGS
