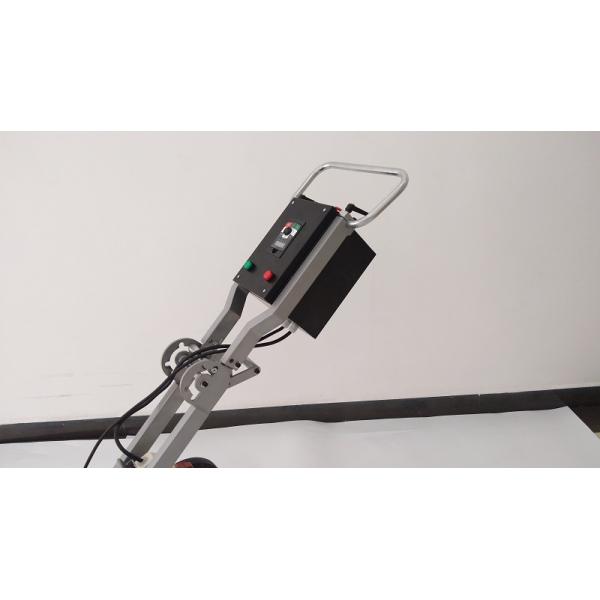

G2 is a powerful machine for rough grinding on concrete, epoxy, terrazzo floor. With 5.5kw inverter, this model can be used under 220V now, motor speed can be 0-1600rpm.
Grind fall and down floor
The fall and down floor between 25-35mm, it is no problem for G2 to grind it evenly.
Begin with #30, then #60, last #120;
Parameters
Model | HW-G2 |
Voltage: | 220V-240V, 1 Phase |
Power output: | 4KW, 5.5hp |
Inverter Power: | 7.5hp (5.5 KW) |
Motor Speed: | 0-1600rmp |
Frequency: | 50/60HZ |
Current: | 19A |
Grinding Width: | 400mm/15.7” |
Grinding Pressure: | 69KG/152lbs |
Additional Weight: | N/A |
Dust Port: | Φ50mm |
NO.of grinding plate | Single one |
Diamond Pad Holder: | 8 Pieces |
Machine L*W*H: | 760*420*1200mm |
Package L*W*H: | 800*450*1000mm |
Net Weight: | 100KG |
Advantages
SUNYE inverter protects the motor and human safety.
Compacted design, easy to transport, even can be put in the car trunk.
Redi-lock slot ensures the grinding pads never fly out.
Floating grinding cover prevents dust from entering working site.
Closer Look
After Sell Service
FAQ
Q: How about the floating cover of HW-G2?
A: The floating cover follow floor up and down, preventing dust from entering work site.
Q: If the machine vibrates when it works?
A: HW-G2 has a chassis which is made of triangle structure. It is more stable and less anti-vibrate. Besides, the machine frame is made of steel tubes, not steel plate, so it could support machine more and decrease vibration.
Q: What is the brand of motor and electrical element?
A:The motor is from the old motor factory over 50 years. Honway uses it since the factory is built up. The motor is made up of pure copper coils and the fault rate is below 0.5%; The electrical elements are Schneider, world brand. The brand of buttons is Dehli, famous China brand.
