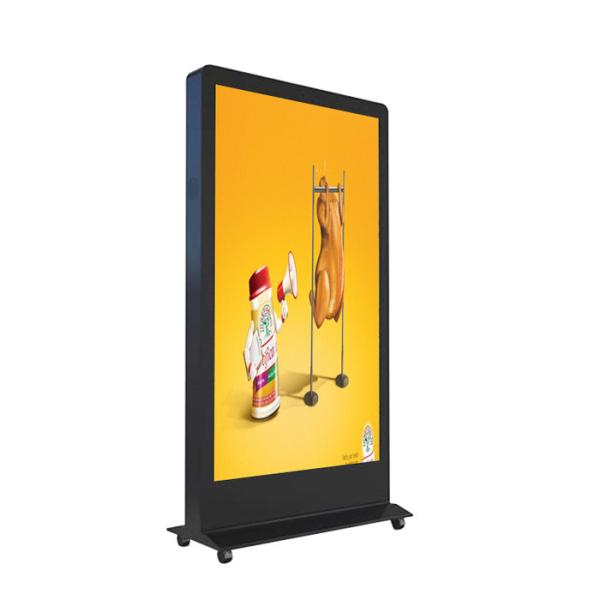

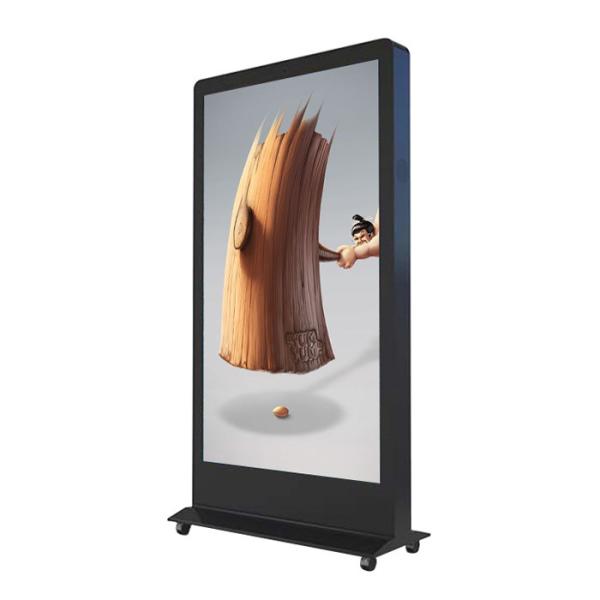

Face Recognition Camera LCD Advertising Digital Signage Display Kiosk With Wheels
KINDLO-HW-65
Quick details:
1. Has screen size from 32inch to 86inch
2. 10-point PCAP foil touch screen
3. 5.0Mpx face recognition camera inbuilt
4. Wheels on the base
5. Android system, also can be with WIN 10 10
6. To be installed outside, waterproof
7. Sunlight readable, 2000nits high brightness
Description:
Electronic Control System:
Leakage protection switch, leakage protection, overvoltage protection;
Microcomputer time switch, control the start and stop of the machine by time-sharing;
Lightning protection device, lightning protection level C, to prevent instantaneous lightning strikes;
Industrial grade power supply, stable and reliable power supply;
Cooling System:
1. Integrated Intelligent fan temperature control, heating system, outdoor environment between -30-+50 degrees, the display is not in black, the whole machine works normally;
2. Imported centrifugal/axial flow fan, equipped with fan speed control board, automatic temperature sensing, automatic adjustment of fan speed, energy saving and extended fan life; Another solution is with an air-conditioner inbuilt.
3. Efficient multi-layer filtration system to isolate harmful dust into the machine, the overall protection level reaches IP55
Testing System:
Spray waterproof test; High and low temperature test; Solar radiation test; Machine aging test
Explosure-proof Glass:
5mm AR anti-reflective glass, imported glass original film, anti-glare by AR coating; light transmittance 97%, reflectivity 3%; 99% solar ultraviolet light isolation, 52% solar radiation heat; tempered explosion-proof
High brightness:
2000cd/m2 high bright panel inbuilt, has brightness sensor to adjust brightness as per environment daylight automatically, save power consumption and make it readable in day light.
Wheels on the base:
We added wheels on the base to make it walk anywhere you want, the bigger the screen is, the heavier the kiosk will be, so difficult to carried out
Specification:
Resolution | 1920*1080 | |||||
Display area | 1428*803mm | |||||
Glass | AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
Brightness | 2000cd/m2, Brightness: has brightness sensor, auto-adjustment as per different daylight to lower power consumption, standard maximum 2000nits. | |||||
Number of Color | 16.7M | |||||
Response time | 8 (ms) approximately | |||||
Contrast | 1100:1 | |||||
View angle | 178°/178°(H/V) | |||||
Life Time | > 50000 (hours) | |||||
Power Supply | AC 110V~240V,50/60HZ, | |||||
Electronic part | Electricity leaking protection, lightning protection | |||||
Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
Heat Dissipation | Air cooling fans built-in, with patent fully intelligent temprature control technology including heating function | |||||
Speaker | 10W*2 | |||||
Power Consumption | 300W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
Touch screen | 10-point PCAP foil touch screen | |||||
Wheels | Yes | |||||
Camera | Face recognition camera inbuilt | |||||
Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
Audio formats | MP3,WAV,WMA | |||||
Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
Bare dimension | TBC | |||||
Wooden box packing size | TBC | |||||
Normal Working Temperature | -40 to 55 Celsius degree |
Monitor mainboard | H D M I in*1, DVI in*1, VGA in*1 | |||||
CPU | A83T eight core 1.2GHz | |||||
RAM | DDR3 2G | |||||
Memory | 8G | |||||
System | Android 6.0, support Google Play | |||||
Internet connection | WIFI, LAN, 4G/5G on option | |||||
Interface | USB*1,USB-OTG*1,H D M I*1,RJ45*1,SD card*1 |
FAQ:
1) Q:What is the minimum order quantity?
A: Qty: 1 unit. Different order quantity different price.
2) Q:What payment methods your company accept?
A:We accept most often payment methods,but mainly accept bank wire transfer T/T, L/C at sight, Western Union.
3) Q:How long is the warranty time for your products?
A: We warranty 1 year for all of our products and supply life-time maintenance.
During 1 year warranty period, for small part defective,we will send replacement parts for free of charge to customers,so customers can replace defective parts by new parts by themselves. We also will pay for shipping cost. For big defective problem,customers have to ship back defective units to us and we will repair or replacement for them for free of charge. Customers will pay for shipping cost from their address to China and we will pay for shipping cost from China to customers' address.
For life-time maintenance (out of 1 year warranty period),any defective parts or units,customers will pay for replacement parts and shipping cost.We will charge a bottom cost for parts.
The man-made damage and misusing damage is not under warranty.
4) Q:I haven't done business with your company before,how can i trust your company?
A: We're a facotry here focus on digital signage for 16 years, and our company is a registered golden member on Alibaba for 10 years. We have many business partners and order histories all over the world. We also can do a skype video call for you to check our factory production line, office and show room.
5) Q:what's the shipment terms and delivery time of your company?
A: It depends on order quantity, shipping address and shipping methods.
6) Q:Do you give any discount ?
A: Different order quantity different price. We will always offer customers the lowest price based on the best quality.
7) Q:I would like to ask you if it's possible to have my logo on the product.
A: Logo printing service is available based on order quantity.
Applicable places:
Financial institutions: banks, securities, funds, insurance companies, pawn shops, etc .;
Public places: bookstores, exhibition halls, stadiums, museums, conference centers, talent markets, etc .;
Entertainment and leisure: cinemas, fitness gyms, resorts, entertainment venues, foot baths, KTV bars,
beauty salons, golf courses, etc .;
Commercial institutions: Western restaurants, fast food restaurants, supermarkets, chain stores, 4S stores,
specialty stores, star hotels, travel agencies, drug stores, etc .;
Industrial sites: food processing equipment, machinery control, office automation equipment, automated testing,
automotive testing equipment, etc .;
Transportation place: bus station, passenger station, subway, high-speed rail, airport, etc .;
Medical places: hospitals, medical institutions, pharmacy chain institutions, etc.
