Tension Alloy Steel / Stainless Steel Load Cell Weighing Sensor 1 Ton 10 Ton 30 Ton
Tension Alloy Steel / Stainless Steel Load Cell Weighing Sensor 1 Ton 10 Ton 30 Ton
Tension Alloy Steel / Stainless Steel Load Cell Weighing Sensor 1 Ton 10 Ton 30 Ton
Tension Alloy Steel / Stainless Steel Load Cell Weighing Sensor 1 Ton 10 Ton 30 Ton
Specifications
Brand Name :
OEM
Model Number :
LC203
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Supply Ability :
100pcs/m
Delivery Time :
25days
Packaging Details :
CARTONS OR DO AS CUSTOMER'S REQUIREMENT
Material :
Alloy steel ,stainless steel
Theory :
Resistance Sensor
Output :
Analog Sensor
Usage :
Weighing
sealing class: :
IP67-IP68
name :
alloy steel load cell
Description

Tension alloy steel or stainless steel Load Cell weighing sensor 1 ton 10 ton 30 ton

Specifications:

Tension Alloy Steel / Stainless Steel Load Cell Weighing Sensor 1 Ton 10 Ton 30 Ton

Cap./Size A B C D E F G H1×H2 J1×J2
1~3t 443.0 260.0 98.0 110.0 56.0 43.0 68.0 60×70 74×84
5t 547.0 303.0 118.0 120.0 68.0 54.0 92.0 65×90 85×110
10t 611.0 325.0 133.0 130.0 80.0 60.0 99.0 76×110 100×130
20t 740.0 354.0 158.0 148.0 106.0 70.0 146.0 80×130 110×160
30t 911.0 436.0 188.0 170.0 102.0 80.0 184.0 96×136 120×160
Rated Load: 1/2/3/5/1/20/30t Operating Temp. Range: -30~+70℃
Sensitivity: (1.5±0.1%) m V/V Maximum Safe Over Load: 150%F.S
Combined Error: ±0.02% F.S Ultimate Over Load: 200%F.S
Creep Error(30min): ±0.02% F.S Recommend Excitation: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation: 15V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Temp. Effect On Span: ±0.02% F.S/10℃ Element Material: Alloy / Stainless Steel
Input Resistance: 750±5Ω Cable: Length=L:1m
Output Resistance: 702±2Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection: Red(Input+),Black(Input-),Green(Output+),White(Output-)

Description:

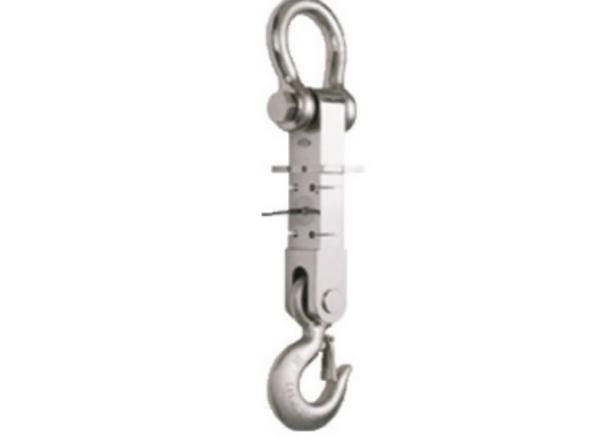

1. Tension link crane scale load cell LC203 series is special load cell for crane scale.

2.Element material made of alloy steel or stainless steel according to customer’s requirement.

3. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, low profile scale beam load cells, high temperature load cell, anti-lighting load cell, High precision, strong overload protection capacity and anti-deflective loading.

4. The load cell with special hook and ring, easy installation.LC203 Weigh modules are used for tank weighing, hopper weighing, conveyor scales, scale conversion.

5. Tension weigh modules are designed for use with suspended tanks, dosing hoppers and other devices that are suspended from a support structure.

6. We offer a wide range of capacities to meet the needs of a variety of weighing applications.

Tension Alloy Steel / Stainless Steel Load Cell Weighing Sensor 1 Ton 10 Ton 30 Ton

Applications:

High precision, strong anti-deflective loading, good shock resistance, simple to install, moisture proof sealed, used in various crane scale

Competitive Advantage:


1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
