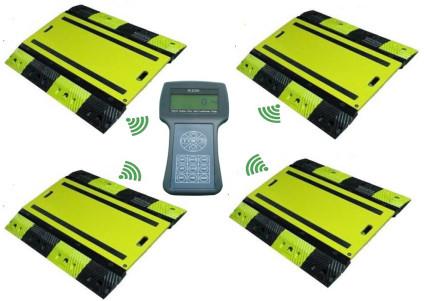

Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales
Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales
Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales
Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales
Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales
Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales
Specifications
Brand Name :
SKYERSCALE
Model Number :
AS001W
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiation
Supply Ability :
500pcs/M
Delivery Time :
15days
Packaging Details :
Aluminium box, carton
Type :
Axle Scale, aluminum pad
Power Supply :
220V/50HZ
Display Type: :
LCD or LED, LCD
Safe overload: :
120%FS
Material :
Aluminum
Description

4PCS wireless Wheel Axle Weigh System,Portable Axle Digital vehicle Weight Scale(fast delivery from factory&cheap shipping cost)

Specifications:

Configuration table:

AS001 350×350×35 1000/2000/3000Kg

4pcs LC348 LoadCell,10m Cable

Capacity:500/1000/1500Kg
400×500×56.5 3000/5000/6000/10000Kg

4pcs LC348 LoadCell,10m Cable

Capacity:1500/2500/3000/5000Kg
450×700×56.5 10000/20000/30000Kg

4pcs LC348 LoadCell,10m Cable

Capacity:5000/10000/15000Kg
500×900×56.5 20000/30000/40000Kg

4pcs LC348 LoadCell,10m Cable

Capacity:10000/15000/200000Kg

Outline dimension:

Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales

Product Parameters
Rated load:1/2/3/5/6/10/20/30/40T Compensated temp.range(℃): -10~+50
Dynamic error (%F.S): 3 (5~10km/h) Static error (%F.S):0.1~0.3
Static comprehensive error(%F.S): 0.1~0.5 Insulation resistance(MΩ): ≥5000(100VDC)
Rated output(mV/V): 1.0±0.1 Use temp.range(℃): -30~+80
Non-linearity(%F.S): 0.2 Temp.effect on zero(F.S/10℃): 0.03
Error on corners(%F.S): 0.2 Temp.effect on span(F.S/10℃): 0.05
Repeatariy(%F.S): 0.05 Safe overload(%): 120
Zero balance(%F.S): ±1 Ultimate overload(%): 150
Excitation voltage(VDC): 9~15 Net weight(kg): 45
Recommended voltage(V): 10 Defend grade: IP66
Wireless Specification
A/D conversion method Σ-Δ 24bit
Input signal range –19.5mV~19.5mV
Load cell excitation DC 5V
Max. connection number of load cell 1~4
Load cell connection mode 4 wire
Operating temperature -10 °C ~40 °C
Allowable working temperature -40 ° C ~ 70 ° C
Wireless transmission frequency 430MHz to 470MHz
Wireless transmission distance 300 meters (In Open Place)

Description:

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.

Digital Aluminum Alloy 4PCS Wireless Portable Axle Scales weight scales

Applications:

1. Load control and weighing for the vehicles.
2. Measuring the weight and barycenter of aeroplane.

3. Measuring weight for special purpose.

Competitive Advantage:

1. We have more than 10 year experience for manufacturing truck scale, floor scale, animal scale, axle weighing scale etc. We have advanced manufacturing equipment, moreover we are the leader in weighing scale field.
2. Full scale weight debugging and calibration
3. We can supply superior quality weighing scale with reasonable price and provide best service
