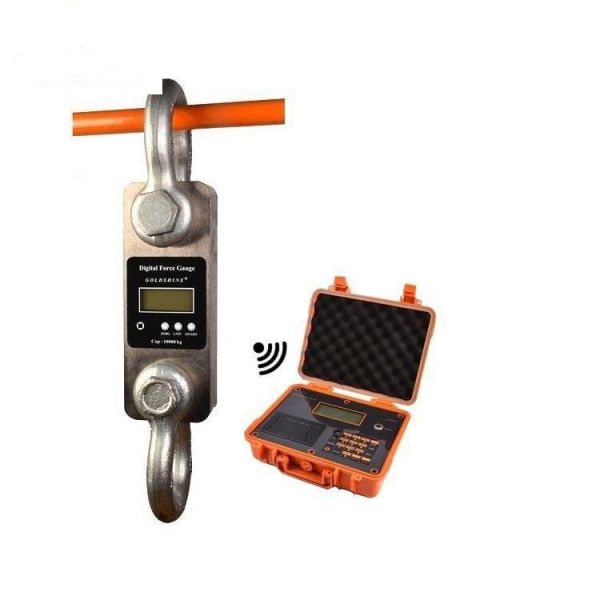

Wireless Digital Dynamometer Load Test Remote Control Load Cell 10t~50t
Wireless Digital Dynamometer Load Test Remote Control Load Cell 10t~50t
Wireless Digital Dynamometer Load Test Remote Control Load Cell 10t~50t
Wireless Digital Dynamometer Load Test Remote Control Load Cell 10t~50t
Wireless Digital Dynamometer Load Test Remote Control Load Cell 10t~50t
Wireless Digital Dynamometer Load Test Remote Control Load Cell 10t~50t
Specifications
Brand Name :
SKYERSCALE
Model Number :
SW6
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Supply Ability :
1000pcs/m
Delivery Time :
25days
Packaging Details :
CARTONS OR DO AS CUSTOMER'S REQUIREMENT
Product name :
Wireless Digital Dynamometer
Rated load :
50t
Type :
Wireless Dynamometer
Display Type :
LCD
Usage :
Loading test
warranty :
1year
Description

Wireless Digital Dynamometer Load Test Remote control Load Cell 10t~50t

Specifications:

(Dimensions shown are nominal and subject to tolerances)

Model Cap. Div A B C D φ H Material
(Kg) (mm) (mm) (mm) (mm) (mm) (mm)
CS-SW6-01 1t 0.5 245 112 37 190 43 335 Aluminum
CS-SW6-02 2t 1 245 116 37 190 43 335 Aluminum
CS-SW6-03 3t 1 260 123 37 195 51 365 Aluminum
CS-SW6-05 5t 2 285 123 57 210 58 405 Aluminum
CS-SW6-10 10t 5 320 120 57 230 92 535 Alloy Steel
CS-SW6-20 20t 10 420 128 74 260 127 660 Alloy Steel
CS-SW6-30 30 10 420 138 82 280 146 740 Alloy Steel
CS-SW6-50 50t 20 465 150 104 305 184 930 Alloy Steel
CS-SW6-100 100t 50 570 190 132 366 229 1230 Alloy Steel
CS-SW6-200 200t 100 725 265 183 440 280 1380 Alloy Steel
CS-SW6R-250 250t 100 800 300 200 500 305 1880 Alloy Steel
CS-SW6R-300 300t 200 880 345 200 500 305 1955 Alloy Steel
CS-SW6R-500 550t 200 1000 570 200 500 305 2065 Alloy Steel

Weight:

Model 1t 2t 3t 5t 10t 20t 30t
Weight(kg) 1.6 1.7 2.1 2.7 10.4 17.8 25
Weight with shackles(kg) 3.1 3.2 4.6 6.3 24.8 48.6 87
Model 50t 100t 200t 250t 300t 500t
Weight(kg) 39 81 210 280 330 480
Weight with shackles(kg) 128 321 776 980 1500 2200

Available options:

1. Hazardous area Zone 1 and 2

2. Built-in-display option

3. Available with a range of displays to suit each application

4. Environmentally sealed to IP67 or IP68

5. Can be used singularly or in sets

Description:

Rugged construction. Accuracy: 0.05% of capacity. All functions and units are clearly display on the LCD (with backlighting) .Digits are 1 inch high for easy distant viewing. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. Long battery life on 3 standard “LR6(AA)”size alkaline batteries. All commonly used internationally recognized units are available : kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).Infrared Remote control easier to calibration(with password). Infrared Remote control with many functions : “ZERO”, “TARE”, “CLEAR”, “PEAK”, “ACCUMULATE”,“HOLD”, “Unit Change”, “Voltage Check” and “Power OFF”.4 local mechanical keys u:“ON/OFF”, “ZERO”, “PEAK” and “Unit Change”. low battery warning

Wireless Load Links Typical Specifications:

Rate Load: 1/205/5/12/25/35/50/75/100/150/200/250/300/500T
Battery Type: 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah)
Proof Load: 150% of rate load Max. Safety Load: 125% F.S.
Ultimate Load: 400% F.S. Battery Life: ≥40 hours
Power On Zero Range: 20% F.S. Operating Temp.: - 10℃ ~ + 40℃
Manual Zero Range: 4% F.S. Operating Humidity: ≤85% RH under 20℃
Tare Range: 20% F.S. Remote Controller Distance: Min.15m
Stable Time: ≤10seconds; System Range: 500~800m
Overload Indication: 100% F.S. + 9e Telemetry Frequency: 470mhz

Wireless Digital Dynamometer Load Test Remote Control Load Cell 10t~50t

Wireless Digital Dynamometer Load Test Remote Control Load Cell 10t~50t

Applications:

1). Weighing

2). Net weight/tare

3). Weight accumulation

Competitive Advantage:

1. High quality and Durable

2. Competitive Price

3. Adequate Stock

4. Fast Delivery

5. Convenient Transportation

6. Good Service
