Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Specifications
Brand Name :
FIMETER
Model Number :
BJJ-20-AH2
Place of Origin :
Mexico
Price :
$720.00(1 - 9 Pieces) $660.00(>=10 Pieces)
MOQ :
1 Piece
Packaging Details :
Non-fumigation wooden case
Pressure :
Low Pressure
Structure :
PISTON PUMP
Usage :
Oil
Application :
Metering
Power :
Electric, 0.5KW
Fuel :
Diesel
Theory :
Electromagnetic Pump
Standard or Nonstandard :
Standard
Flow rate :
20-60 L/min
Accuracy :
0.2%
Voltage :
12/24V
Max pressure :
3Bar
Description
Product Description

Product Application

Owns many patents, which is developed by Anhui ruiling meter manufacturing co.,ltd. This model of fuel dispenser is widely used in industrial and mining enterprises, middle and small oil depot, gas station for transporting diesel and kerosene etc. This Anti- Explosion fuel dispenser owns many advantages, for instance, reasonable design, compact structure, small and fine, convenient for carry, high accuracy, big flow rate convenient for usage, easy for maintenance, and so on.

Our design is much more compact, layout is more reasonable,increasing the operation efficiency.

SPECIFICATIONS FOR GASOLINE FUEL DISPENSER
Model No.:
AH2
Accuracy:
±0.2%
Flow range:
20-60L/min
Max.pressure:
4 Bar
Voltage:
DC 12v/24v
Single Range:
0.0-99999.9L
Suction/Lift:
25m/25m
Accumulative Range:
0-99999L
Total weight:
48kg
Range of Price:
0.00-$99.99
Temperature range:
-20°c-50°c
Total Amount Range:
0-$99999
Inhalation caliber:
25mm
Measure Minimum:
5L
Discharge caliber:
20mm
Size:
550*450*380mm
Medium
Gasoline, Petrol, Diesel, Kerosene, Water, Methanol and other liquid.

Detailed Images
Detailed Images
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure

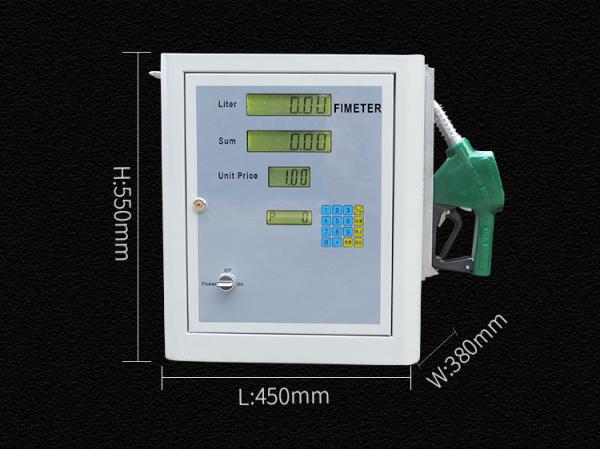

No Pump Gasoline Fuel Dispenser Size Map and Internal Structure Show.

Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure

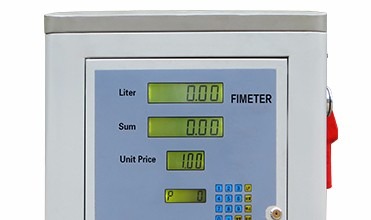

Machine Parts

Name: Anti-Explosion No Pump Gasoline Fuel Dispenser;

Brand: FIMETER;

6 Digits LCD Display;

Show Unit Price, Total Amount, Total Volume.

Machine Parts

Lift Handle;

All English and Arabic Numeral Panel;

3 Version of Computer Motherboards, Work Independently;

All-Round Visual Mirror, Monitoring Fuel Volume At Any Time.

Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure

Machine Parts

12V 24V Battery Power;

Use with Truck Battery also.

Internal Structure

F Class Insulation;

Without Pump Design;

Solenoid Valve Control System;

High Accuracy 4 Cylinder Piston Flowmeter.

Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure

Standard Configuration

1 Set Manual;

5M Inlet Pipe;

5M Output Pipe;

1 Set 11A Automatic Fuel Nozzle.

Dose No Pump Gasoline Fuel Dispenser BJJ-20-AH2 Low Pressure
Packaging
Size
61 * 75 * 98CM
Weight
85 KGS
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated. Package also can according to customer special requirements.
