Specifications
Brand Name :
SANWEIHE
Model Number :
SWF-590
Certification :
CE
Place of Origin :
QINGDAO CHINA
MOQ :
1set
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10 Sets / Month
Delivery Time :
25 working days
Packaging Details :
Wooden Box Packaging
Packaging :
Bag Packing
Packaging Material :
Film
Transport Package :
Wooden Box Packing
Specification :
5700*1050*1700mm
Trademark :
sanweihe
Origin :
Qingdao China
HS Code :
84224000
Automatic Grade :
Semi-Automatic
Application :
Cosmetics, Drinks, Skin Care Products, Vegetable, Fruit, Fish, Meat
Type :
Forming Filling Sealing Machine
Forming Function :
Forming, Filling, Seal
Driven Type :
Electric
Customization :
Available | Customized Request
Description

Swf-590 Film Feeding From Below Type Automatic Horizontal Wrapping Packaging Machine

What is horizontal flow wrapper packaging machine?

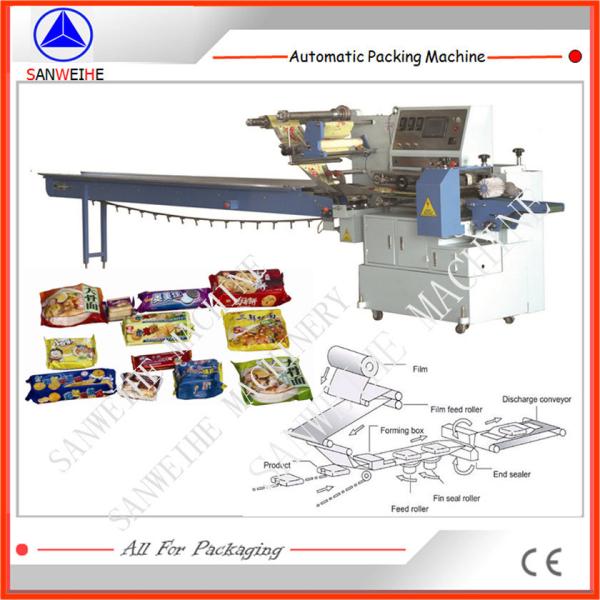

The drawing below shows a horizontal flow wrapper packing machine in motion:

Film Feeding Flow Wrapping Machine CPP Horizontal Flow Wrapper Machine

The flow wrapper machine packages product by wrapping it in film. The flow wrapper machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.

For this packaging machine, the film enters the former from below the product. This ensures a smooth product transfer and secure product

handling of multipack and flexible products, not possible on a typical flow wrapping packaging machine.

Parameters of the Pillow Type Automatic Packing Machine
Max width of film 450mm
Packaging range L:53~300mm, W:20~100mm, H:5~70mm
Packing speed 30-180Bags/min
Category of film Heat-melt-cut sealing film like PAPER/PE, OPP/PE, OPP/AL/PE, CPP/PE
Power of main motor 1.5KW
Power of electrical 2.5KW
Total power 4.6KW single phase 220V
Overall dimension L×W×H 5700×960mm×1480mm
Weight About 1000kg

Film Feeding Flow Wrapping Machine CPP Horizontal Flow Wrapper Machine

Application:

Single Piece product packaging:

Bread, chocolate enrobed cheese bar, soaps, popsicles, cookies, waffles, trowels, cotton wool.

Group packaging:

Waffles, meat chops, bakery, soap, sponges, biscuit with tray etc.

Non standard products (customization):

Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.

Features of Pillow Type Automatic Packaging Machine :

1. Be controlled by double transducer, flexible cutting and setting of bag length, time and film saveable.
2. Human-machine operation, convenient and quick parameter setting.
3. Self diagnosis of failure function, clear failure display.
4. High sensitivity photoelectric eye tracking color mark and digital input of cut position make the sealing and cutting more accurate.
5. Separate PID control temperature, suitable for various packing materials.
6. Stopping the machine in the selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working and convenient maintenance.
8. Stainless steel product contact parts
9. Easily exchangeable former

We have both the button controlled flow packaging machine and the PLC touch screen controlled flow packaging machine
Film Feeding Flow Wrapping Machine CPP Horizontal Flow Wrapper Machine
Why choose us:
1. We are manufacture but not trade company
2. We have professional staff who can advise you the suitable choice for your specific need
3. Our professional workers will make the perfect product for you
4. Well trained and experienced staff will answer your inquiry timely
5. We provide competitive price and fine quality products

Film Feeding Flow Wrapping Machine CPP Horizontal Flow Wrapper MachineFilm Feeding Flow Wrapping Machine CPP Horizontal Flow Wrapper Machine

Film Feeding Flow Wrapping Machine CPP Horizontal Flow Wrapper MachineFilm Feeding Flow Wrapping Machine CPP Horizontal Flow Wrapper Machine

Film Feeding Flow Wrapping Machine CPP Horizontal Flow Wrapper Machine
Our Services
We provide after-sale services both onsite service and email/phone services, the email/phone service will be free of charge, if you meet any problem during using our machine, just send email to us or call us, we will provide any support as we can.
We also provide related spare parts of our packing machine
We also provide customized products according to customer's request
FAQ :
Q: When you can finish the machine at earliest. Please inform. As we need the machine ASAP.
A: We can finish the machine within 2 weeks(with extra working time) if you need it urgently
Q: What material is used as printed film?
A: The packing film is heat sealable film, such as OPP/PE film,CPP/PE, OPP/ALU/PE
Q: Is there any guarantee covering the machine?
A: Our guarantee time for the machine is 1 year
Q: Do you offer after sale service, or else if any part is damaged could you send us
the spare part to replace?
A: Yes we offer after sale service, you can send email or call us when have some
problem, we will help you to solve the problem freely, we will also send the spare
parts for replacement, of course the spare parts are not for free
