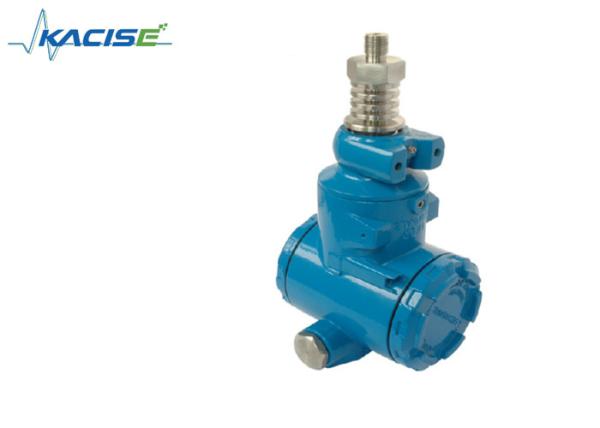

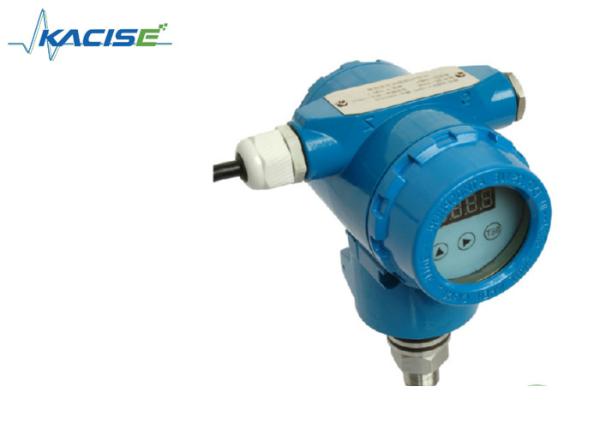

Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter
Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter
Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter
Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter
Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter
Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter
Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter
Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter
Specifications
Brand Name :
Kacise
Model Number :
GXPS210A /210B
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Packaging Details :
Standard export packing carton
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Pressure tap :
M20X1.5, G1/4, G1/2, NPT1/2
Pressure range :
0～0.2MPa...100MPa
Electrical Performance :
3- wire system
Output signal :
4~20mA
Power supply :
10~30Vdc
Digital output :
RS485
Description

Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter

Introduction

GXPS210A Pressure transmitter is facing pressure testing of the digital output pressure test equipment, It periodic measurement field stress and displayed in the cabin LED screen, And according to epistatic machine instruction will pressure value through the RS485 communication interface transmission to the computer. GXPS210B pressure transmitter is in the GXPS210A at the same time on the basis of measuring the pressure power conversion into 4-20 ma current signal output

Feature

☆ LED screen

☆ RS485 digital output

☆ Temperature compensation

☆ Whole temperature range accuracy 0.25%

☆ Support network control and locale control

☆ Digital output with current output

Electronic interface and signals definition
Mining Machinery Electronic Pressure Transmitter , Digital Pressure Transmitter

Parameter

Specification Value
PS210A PS210B
Measuring range

0～0.2MPa...100MPa

PSI: 0~20PSI…14000PSI

BAR : 2BAR….1000BAR

20000mmH2O…10197000mmH2O

Atm: 0~1,97atm….986atm

InchHg: 0~59inchHg… 29500inchHg
Power supply 10～30VDC
Digital output RS485
Static working current <15mA
Composite accuracy 0.25%
Electrical Performance 3- wire system
Analogue output signal 4～20mA
Display LED LED
Stability 0.2%F.S/year
Pressure type Gauge pressure G, Absolute pressure A
Compensate temperature -25～85℃
Working temperature -40～85℃
Over load capacity 150%
Pressure tap M20X1.5, G1/4, G1/2, NPT1/2


Application

☆ Hydrological test
☆ Geological exploration
☆ Petrochemical industry
☆ Mining machinery
☆ Chemical metallurgy


Ordering information

GX-Type-Range-Output-Power-Pressure port- Electrical connection--Cable length-Package

Type : 210A=RS485 output 210B=RS485+4~20Ma output, RSV=Reserved

  • Range: 0~0.2MPa …100MPa= the upper limitation of the range
  • Output:: A=4~20mA, RS4=RS485
  • Power: 10~30Vdc
  • Pressure port : M=M20X1.5, G=G1/4, G2=G1/2, N2=NPT1/2;
  • Electric connection: C=solid line sets outlet
  • Cable length: XXm=XX meter 1-150m
  • Package: Bb, Foam

e.g. GXPS210-2.5m-A-0.5-DC24-T-5m-Foam

PS450 with Piezoelectric capacitance ceramic core, test range is 0-2.5mH2O,24Vdc power supply 4-20mA output, submersible type with 5m cable, foam packaged.
