Specifications
Brand Name :
kacise
Model Number :
GXPS480
Certification :
CE
Place of Origin :
Shaanxi, China (Mainland)
MOQ :
1 PIECE
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000 Piece/Pieces per Week negotiable
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Pressure range :
0~2….200mH2O/ 0–2bar~0~200bar
Operating temperature :
－40℃~85℃
Accuracy :
±0.5%F.S
Output signal :
RS485
Power supply :
10~30Vdc
Pressure port :
Submersible, thread, M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Description

GXPS480 Various Pressure Range Accuracy:±0.5%F.SRS485 Digital output

liquid level Sensor for Water Saving Irrigation

Application

  • Hydrologic monitoring
  • Constant pressure water supply
  • Tail dam water level
  • Sewage treatment
  • Water-saving irrigation
  • Water diversion project
  • Chemical Metallurgy


Feature

  • Accuracy:±0.5%F.S
  • Diffusion silicon oil filled core body
  • Ceramic pressure resistance core body
  • Various of pressure range
  • RS485 Digital output

Introduction

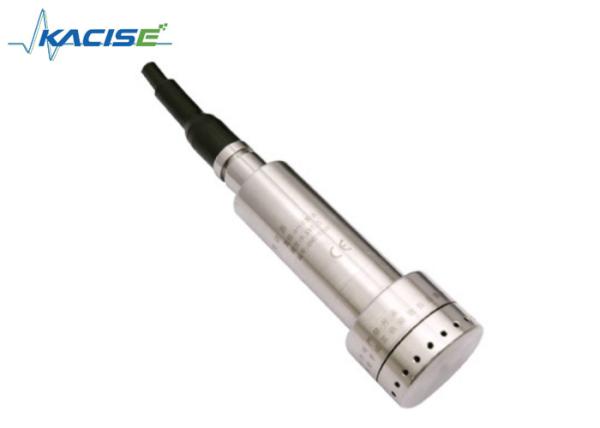

GXPS480 pressure transmitter has high reliability, high stability, with the characteristics of the

digital output. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive

liquids and gases. The series uses 1Cr18Ni9Ti stainless steel structure, RS485 output.

Direct lead way electrical connections
Connection definition Cable color
RS485+ White
RS485- Blue
Power Red
Power ground Black
Shield Yellow

Electronic interface and signals definition

Various Pressure Range ±0.5%F.SRS485 Digital Output Liquid Level Sensor for Water-Saving Irrigation

Parameter

Spec. Value
Pressure range 0~2….200mH2O/ 0–2bar~0~200bar
Load pressure 1.5times nominal value pressure (1.5X)
Rupture pressure 3times nominal value pressure (3X)
Accuracy ±0.5%F.S
Stability Typical value 0.25%F.S, Max. value: 0.4%F.S
Operating temperature －40℃~85℃
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
Output signal RS485
Power supply 10~30Vdc
Insulation ＞100M Ω@50V
Electrical connection water proof cable
Pressure port Submersible, thread, M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure type G, S Response time: 10ms
Certificate Intrinsically safe mode E, CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
