Specifications
Brand Name :
KACISE
Model Number :
KUS-M56
Place of Origin :
China (Mainland)
MOQ :
0-100
Price :
US $50-180 / Pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
5 work days
Packaging Details :
carton or customers requests available
Certification :
CE
Range :
0.1~0.5m、0.15~1m、0.3~3m、0.4~5m、0.5~6m
Resolution :
3mm or 0.1%(which is bigger)
Response time :
< 200ms
Display :
LED (OPTIONAL)
Emission angle :
20°
Analog output :
4~20mA/500Ω LOADING
Switch output :
RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL)
RS232/485 :
MODBUS protocol or customized protocol (optional)
Power supply :
Standard 24VDC (±15%)
Ambient temperature :
-20~+60℃
Protection Class :
IP65 (IP66 is selectable)
Installation :
M56*2
Description

1.Introduction

The Ultrasonic sensor uses sound waves to do non-contact and wear-free detection on target subjects. It can be used to detect either transparent or colored objects, metal objects or non-metallic objects, as well as solid, liquid or powdered substance. Ambient conditions such as environmental smoke, dust, environment or rain have very small affect on the detection performance of ultrasonic sensors.

2. Ultrasonic Ranging principle

Transmitting ultrasonic transducer emits ultrasonic pulses propagated to the measured media through communication media, through reflection and then return to the receiving transducer through the acoustic medium, the measured ultrasonic pulse propagates from the transmitter to the receiver in the acoustic medium of time. Then according to the speed of sound in the acoustic medium, it can be considered from the transducer to the media surface distance. To determine the liquid level. Therefore, we can calculate the distance from the probe to the reflecting surface D = C * t / 2 (divided by 2 is because the sound waves from the transmitter to the receiver is actually a round, D is the distance, C is the speed of sound, t is the time).

3. Product Features

High resolution

Short response time

Digital tube display measuring distance

Various springs available: switch, analog, or RS232/485

4.The Main Technical Index

Range 0.1~0.5m,0.15~1m,0.3~3m,0.4~5m,0.5~6m
Resolution 3mm or 0.1%(which is bigger)
Response time < 200ms
Display LED (OPTIONAL)
Emission angle 20°
Analog output 4~20mA/500Ω LOADING
Switch output RELAY DC 30V/ 5A , PNP/NPN(OPTIONAL)
RS232/485 MODBUS protocol or customized protocol (optional)
Power supply Standard 24VDC (±15%)
Ambient temperature -20~+60℃
Protection Class IP65 (IP66 is selectable)
Installation M56*2

5.Production Flow

Packaging & Shipping

Cases Certificates

Company Information

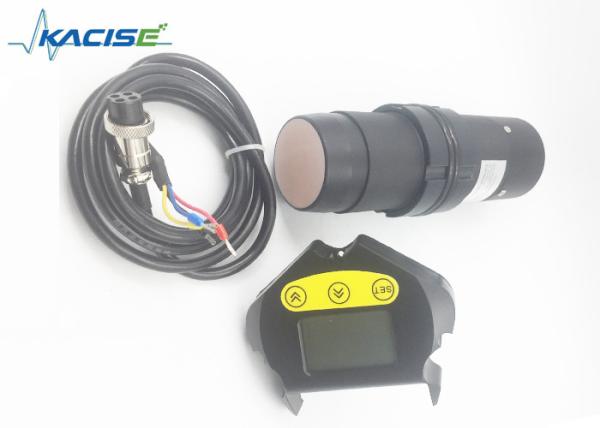

GXUS-M56 High resolution Digital display Short response time ultrasonic sensor

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

FAQ

1. Q: What information need to be provided to choose the suitable model?

A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
