Specifications
Brand Name :
KACISE
Model Number :
KLD2601
Place of Origin :
China (Mainland)
MOQ :
0-100
Price :
US $600-1,100 / Pieces
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 Piece/Pieces per Month
Delivery Time :
7 working days
Packaging Details :
1pc/box, many boxes/ carton, some carton/wooden case, or customers requests available
Certification :
CE
Application :
corrosive liquid / powder / solid
Measuring range :
10m, 20m, 30m, 70m, 80m
pretection grade :
IP67
Frequency Range :
26Ghz
Temperature :
-40~400℃
Signal output :
4...20mA/HART/RS485 Modbus
Description
Grain Silo Radar Type Level Transmitter / Radar Distance Level Sensor with pretection grade IP67

Introduction

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 80 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.

principle

Radar level transmitter antenna microwave pulse is narrow, the downward transmission antenna. Microwave exposure to the medium surface is reflected back again by the antenna system receives, sends the signal to the electronic circuit automatically converted into level signals (because the microwave propagation speed, electromagnetic wave to reach the target and the reflected back to the receiver this time is almost instantaneous).

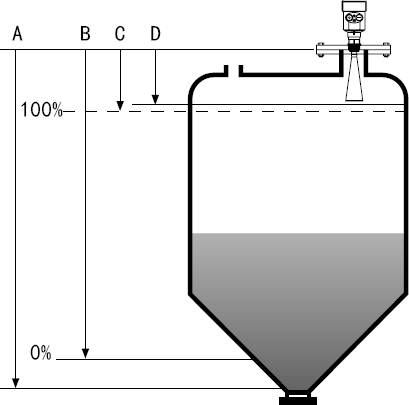

A Range set

B Low adjustment

C High

D Blind area

 Grain Silo Radar Type Level Transmitter / Radar Distance Level Sensor with pretection grade IP67

Parameters

KLD2601

Application: All kinds of corrosive liquid

Measuring Range:10 meters

Process Connection: Thread, Flange

Medium Temperature: -40℃ ~ 130℃

Process Pressure: -0.1~0.3 MPa

Accuracy: ± 5mm

Protection Grade: IP67

Frequency Range: 26GHz

Signal Output:4~ 20mA/HART (Two-wire / Four)

RS485/ Modbus

Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb

KLD2602

Application:Anti-high temperature, Anti-high pressure Liquid, Mildly corrosive liquid

Measuring Range:30 meters

Process Connection: Thread, Flange

Medium Temperature: -40℃ ~ 250℃

Process Pressure: -0.1 ~ 4.0 MPa

Accuracy: ± 3mm

Protection Grade: IP67

Frequency Range: 26GHz

Signal Output:4~ 20mA/HART (Two-wire / Four)

RS485/ Modbus

Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb

KLD2603

Application:Solid material, Strong dust Easy to crystallize, condensation occasion

Measuring Range:70 meters

Process Connection: Universal Flange

Medium Temperature: -40℃ ~ 250℃

Process Pressure: -0.1 ~ 0.1 MPa

Accuracy: ± 15mm

Protection Grade: IP67

Frequency Range: 26GHz

Signal Output:4~ 20mA/HART (Two-wire / Four)

RS485/ Modbus

Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb

KLD2604

Application:Solid material, Strong dust, easy to crystallize, condensation occasion

Measuring Range:80 meters

Process Connection: Universal Flange

Medium Temperature: -40℃ ~ 250℃

Process Pressure: -0.1 ~ 0.1 MPa

Accuracy: ± 15mm

Protection Grade: IP67

Frequency Range: 26GHz

Signal Output:4~ 20mA/HART (Two-wire / Four)

RS485/ Modbus

Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb

KLD2605

Application:Solid material, Strong dust, easy to crystallize, condensation occasion

Measuring Range:80 meters

Process Connection: Universal Flange

Medium Temperature: -40℃ ~ 250℃

Process Pressure: -0.1 ~ 0.1 MPa

Accuracy: ± 15mm

Protection Grade: IP67

Frequency Range: 26GHz

Signal Output:4~ 20mA/HART (Two-wire / Four)

RS485/ Modbus

Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb

KLD2606

Application:Solid particles, Powder Corrosive medium container

Measuring Range:20 meters

Process Connection:Liquid 30m/Solid 20m/powder 15m

Medium Temperature:-40℃ ~ 250℃

Process Pressure:

-0.1 ~ 4.0MPa (Flat Flange)

-0.1 ~ 0.1MPa (Universal Flange)

Accuracy:± 10mm

Protection Grade:IP67

Frequency Range:26GHz

Power Supply: Two-wire (DC24V) / Four-wire (DC24V/AC220V)

Signal Output:4... 20mA/HART (Two-wire / Four) RS485/ Modbus

Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb
