Specifications
Place of Origin :
Shaanxi, China
Brand Name :
Kacise
Model Number :
KLD260 series
Process Connection :
Thread or Flange
Measuring range :
10m, 20m, 30m, 70m, 80m
Signal output :
4...20mA/HART/RS485 Modbus
Explosion-proof Grade :
Exia IIC T6 Ga/ Exd ia IIC T6 Gb
Medium :
corrosive liquid/solid/powder
Temperature :
-40~400℃
Frequency Range :
26GHz
Packaging Details :
1pc/box, many boxes/ carton, some carton/wooden case, or customers requests available
Port :
Shanghai or other
Supply Ability :
200 Piece/Pieces per Month wireless radar water level sensor
Price :
$600.00 - $1,100.00/pieces
Description

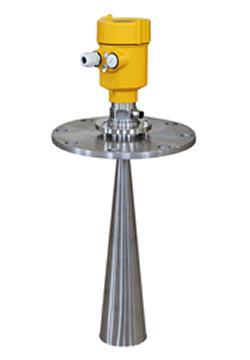

KLD260 series wireless radar water level sensor

We also produce 6G and guided wave radar level meter.

Introduction of KLD260 series guided radar water level sensor

26G radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

Operation principle of wireless radar water level sensor

Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal

Features of wireless radar water level sensor
1). Antenna size is small, easy to install;
2). Non-contact radar, no wear, no pollution.
3). Almost free from corrosion, foam impact;
4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
5). Severe dust working environment has little effect on high-frequency level meter.
6). Shorter wave length that has a better reflection on the inclined solid surface.
Parameters of wireless radar water level sensor

KLD2601

wireless radar water level sensor

Application: All kinds of corrosive liquid
Measuring Range:10 meters
Process Connection: Thread, Flange
Medium Temperature: -40℃ ~ 130℃
Process Pressure: -0.1~0.3 MPa
Accuracy: ± 5mm
Protection Grade: IP67
Frequency Range: 26GHz
Signal Output:4~ 20mA/HART (Two-wire / Four)
RS485/ Modbus
Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb

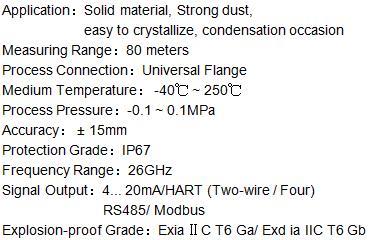

KLD2602

wireless radar water level sensor

wireless radar water level sensor

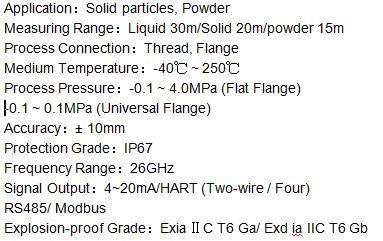

KLD2603

wireless radar water level sensor

wireless radar water level sensor

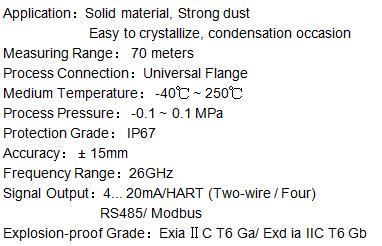

KLD2604

wireless radar water level sensor

wireless radar water level sensor

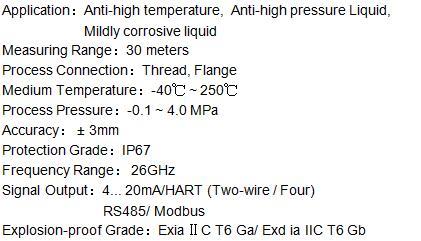

KLD2605

wireless radar water level sensor

wireless radar water level sensor

KLD2606

wireless radar water level sensor

Application:Hygienic liquid storage, Corrosive medium container

Measuring Range:20 meters

Process Connection:Flange

Medium Temperature:-40 ~ 130

Process Pressure:-0.1 ~ 4.0MPa

Accuracy:± 3mm

Protection Grade:IP67

Frequency Range:26GHz

Power Supply: Two-wire (DC24V) / Four-wire (DC24V/AC220V)

Signal Output:4~ 20mA/HART (Two-wire / Four)

RS485/ Modbus

Explosion-proof Grade:Exia C T6 Ga/ Exd ia IIC T6 Gb

Production Flow

wireless radar water level sensor

Packaging & Shipping

wireless radar water level sensor

Cases

wireless radar water level sensor

Certificates

wireless radar water level sensor

Company Information

wireless radar water level sensor

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services

  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
  • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
FAQ

1. Q: What information need to be provided to choose the suitable model?

A: Please provide us: application field, medium, measuring range, output signal, power supply,

temperature, installation method, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ for the KLD260 series 26G High Frequency Radar Level Mete?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.
