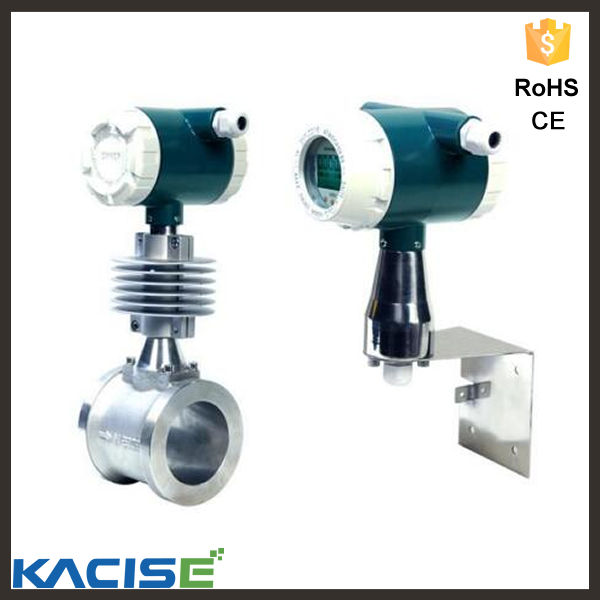

High quality air flow meter sensor
High quality air flow meter sensor
Specifications
Place of Origin :
Shaanxi, China
Brand Name :
Xi'an GX- air flow meter sensor
Model Number :
GX
Accuracy :
up to 1.0%
Power supply :
24VDC, 3*1.2V battery or AC90 ~260V power adapter
Output signal :
Pulse / 4~20mA / RS485 / RS232 /OCT
Pipe diameter :
15mm~6000mm
Measuring medium :
Water, corrosive acid liquid and alkaline liquid, alcohol, beer, etc.
Temperature :
customized available
Protection grade :
IP68
Applications :
water supply,heating supply
product name :
air flow meter sensor
keywords :
air flow meter sensor
Packaging Details :
Carton or customers requests available air flow meter sensor
Port :
Shanghai or other
Supply Ability :
3000 Piece/Pieces per Month air flow meter sensor
Price :
$199.00 - $390.00/pieces
Description
High quality air flow meter sensor
High quality air flow meter sensor

Description

Ultrasonic flow meter is ideal for flow surveys and closed pipe application where non-invasive measurement of liquids is required. The advantages of high measurement accuracy, good consistency, battery power supply, easy operation and portability, make this meter the smallest and lightest flowmeter in domestic and a significant portable ultrasonic flow meter.

High quality air flow meter sensor

Feature

Features

  • Built-in printer
  • Large LCD display
  • Accuracy up to 1.0%
  • Built-in data logger
  • Wide measuring range
  • Non-contact measurement
  • Multi-signal input &output
  • Easy to used for calorimeter
  • Power supply built-in battery or adapter
  • Remote transmission and net work transmission
  • Multi language menu UK, Italy, and other languages
Specifications

GXUMF2000 series smart ultrasonic flow meter

High quality air flow meter sensor

Parts

Detail

Host part

Theory

Ultrasonic time gap

Accuracy

±1.0%

Option method

4-keyboard support magnetic

Signal output

1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm

1 channel OCT pulse output (default pulse width is 200ms, and can be

modify between 6 to 1000ms)

1 channel relay output (3A@220V)

Signal input

3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc.

1 channel mV input use to pt100 for calorimeter

Digital port

RS485 support Mod-bus protocol and support firmware update

Cable

Special cable for RS485 the range up to 1000m

Suit pipe

Pipe material

Steel, cast iron cement, copper, PVC, Aluminum, glass, etc.

Dimension

15~6000mm

Sensor position

It is better the sensor fix at the position of at least 10D far away to stream, or 5D far away to stream, at least 20D far away from the pump outlet.

Suit flow

Medium

Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc.

Temperature

-30~160°C

Turbidity

10000pm not so much baubles

Flow speed

0~±10m/s

Environment

Temperature

Host: -20~60°C; Sensor: -30~160°C

Humidity

Host: 85%RH; Flow sensor: IP68, less than 2m under water

Power supply

DC8~36V or AC85~265V(optional)

Consumption

1.5W

GXUMS2000 series separated type ultrasonic flow meter

High quality air flow meter sensor

Item

Performance and Parameter

Host part

Principle

Ultrasonic time gap

Accuracy

±1%

Display

2×20 character LCD with backlight, support the language of Chinese, English and Italy Convertor dimension:170*180*56cm

Signal output

1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%

1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)

1 way Relay output

Signal input

3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level

Connect the temperature transducer Pt100, can finish the heat/energy measurement

Data interface

Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.

Cable

Twisted-pair cable, generally, the length under 50 meters;

Select the RS485 communication. The transmission distance can over 1000m.

Pipe Condition

Pipe material

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.

Pipe Diameter

15~6000mm

Straight length pipe

Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.

Medium

Type of Liquid

Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids

Temperature

-30~160°C

Turbidity

10000pm not so much baubles

Flow speed

0~±10m/s

Environment

Temperature

Host: -20~60°C; Sensor: -30~160°C

Humidity

Host: 85%RH; Flow sensor: IP68, less than 2m under water

Power supply

DC8~36V or AC85~265V( optional)

Consumption

1.5W

GXUMM2000 series ultrasonic flow module/RTU

High quality air flow meter sensor

Parts

Parameters in detail

Host part

Theory

Ultrasonic time gap

Accuracy

±1%

Option method

4-keyboard support magnetic rod operation

Signal output

1 channel 4~20mA @ 0.1% current loop back, the maxim load resistor up to 1000 ohm

1 channel OCT pulse output (default pulse width is 200ms, and can be modify between 6 to 1000ms)

1 channel relay output (3A@220V)

Signal input

3 channel 4-20mA current loop back @0.1% circuit used to collect Temp. Pressure and liquid level etc.

1 channel mV input use to pt100 for calorimeter

Digital port

RS485 support Mod-bus protocol and support firmware update

Cable

Special cable for RS485 the range up to 1000m

Suit pipe

Pipe material

Steel, cast iron cement, copper, PVC, Aluminum, glass, etc

Inner DN

15~6000mm

Sensor position

It’s better the sensor fix at the position of at least 10D far away of upstream, or 5D far away of upstream, at least 20D far away from the pump outlet(D is the inner diameter of the pipe)

Suit flow

Media

Water, sea water, waste water, liquid alcohol, beer, gas, oil, etc

Temperature

-30~160°C

Turbidity

10000pm not so much baubles

Flow speed

0~±10m/s

Environment

temperature

Host: -20~60°C; Sensor: -30~160°C

Humidity

Host: 85%RH; Flow sensor: IP68, less than 2m under water

Power supply

DC8~36V or AC85~265V( optional)

Consumption

1.5W
Related Products

GXUMH2000 series Ultrasonic Handheld flow meter

High quality air flow meter sensor

GXUMP2000 series Portable ultrasonic flow meter

High quality air flow meter sensor

Our Services

Sensor can be customized by your special request, We can supply technical consulting service for your user.

The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 5-10 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.

Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.

Certifications

High quality air flow meter sensor

Company Information

High quality air flow meter sensor

Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 saleman, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.

When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
