4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project
4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project
4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project
4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project
4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project
4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project
4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project
4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project
Specifications
Brand Name :
Kacise
Model Number :
KUM-A
Certification :
certificate of explosion-proof,
Place of Origin :
China (Mainland)
MOQ :
1pcs
Price :
USD157 to USD610 per pc
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Pieces per Week
Delivery Time :
5 work days
Packaging Details :
Individual carton packaging, gift box packaging, custom packaging
Product type :
integrated
Power Supply :
24 VDC Optional: 220V AC+15% 50Hz
Display :
English Led Display
Cable Probe :
No
Digital Output :
RS485
Resolution :
3mm or 0.1%
Product Name :
Digital Integrated Ultrasonic Level Meter Non-Contact Level Sensor Level Mesurement Used in Municipal Project
Apply :
liquid solid
Description

RS485 Output Ultrasonic Water level Meter Digital Fluid Level Sensor

Note: Range information is very important

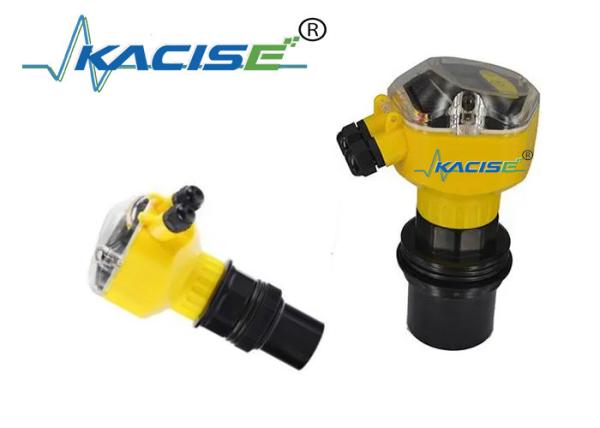

KUM-A ultrasonic level meter is a non-contact and cost-effective level meter with high reliability, high accuracy and easy installation. It does not have to contact the medium and can meet the measuring requirements of most applications.

4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project

Technical Features:

  • Non-contact, can be used in various applications;
  • Various types of probes are available to meet the requirements of various applications.
  • High accuracy: 0.5%, 1%
  • English LED Display

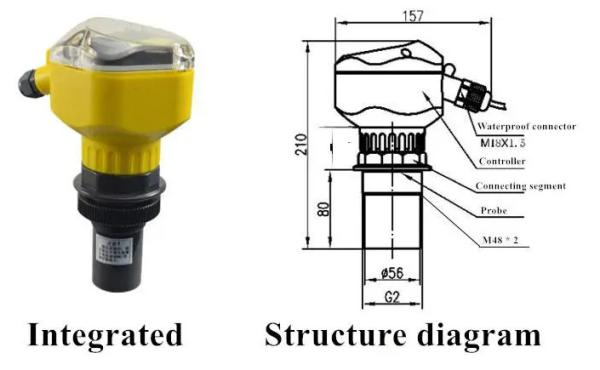

Structure:

4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project

Technical Specifications:

Specs Value
Pressure Voltage 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
Accuracy 0.5%, 1.0%
Display LCD
Ambient Temperature Display instrument-20～+60℃
transducer-20～+80℃
Medium liquid and solid
Analog Output 4-20mA
Digital Output RS485, RS232 (both are optional)
Power Supply 24Vdc
Protection Grade Display instrument IP65,transducer IP68
Probe Type PVDF, aluminum alloy, ABS, stainless steel 316L, teflon, titanium alloy

Model Selection:

KUM-A
Measurement Range
A 5m
B 10m
C 15m
D 20m
E 30m
F 40m
G 50m
H 60m
Output Signal
A 4-20mA
Accuracy
0.5 0.5%
1.0 1%
Power Supply
A 24Vdc
B 11~30Vdc
Probe Type
A PVDF
B Aluminum alloy
C ABS
D Stainless steel 316L
E Teflon
F Titanium alloy

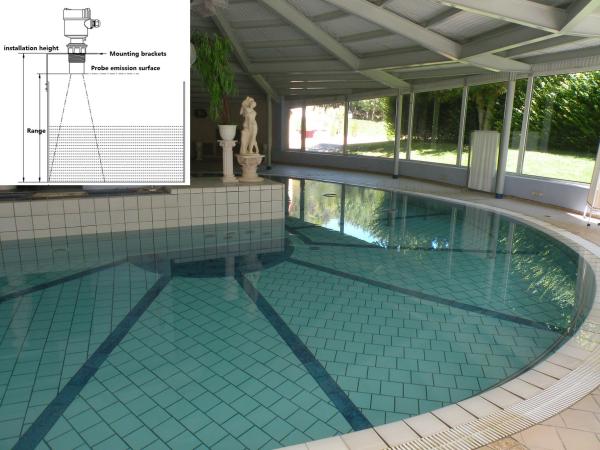

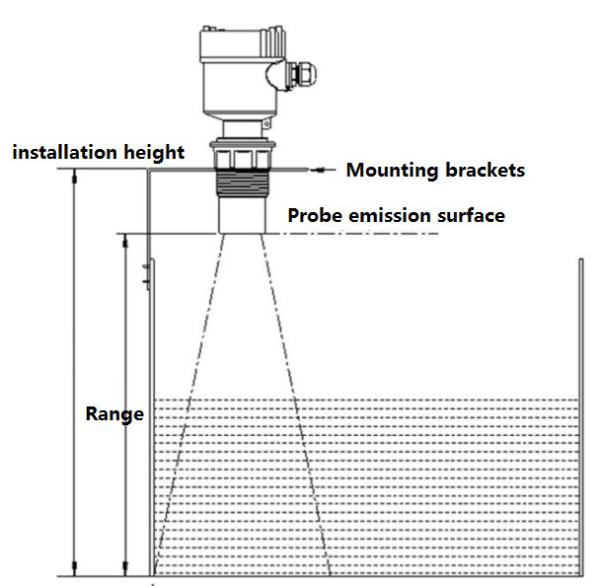

Applications and Installations:

  • Distance measurement
  • Depth measurement

4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project

4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project

4 - 20mA Ultrasonic Water Level Meter 24V Digital Fluid Level Sensor For Municipal Project

Common problems and solutions guidance during installation

Fault description cause of issue Solution
Meter does not display, does not work Wrong power supply Wrong wiring Check whether the DC24v power supply is correct Check whether the wiring is correct
The instrument has display, does not work 1. The level gauge is not aligned with the liquid level or material level
2. The liquid level fluctuates greatly
3. The material surface is extremely uneven
4. The liquid surface has a thicker foam layer
5. The bottom of the container is not flat after the liquid is emptied and the material is emptied
6. Out of measurement range		 1. Adjust the alignment direction of the level gauge, and use a spirit level to calibrate and add a plastic tube to the container
2. Use a level gauge with a larger range
3. Use a level gauge with a larger range or other measurement methods
4. Naturally resume work after adding liquid or material
5. Use a level gauge with a larger range
The instrument display is unstable or the measured value has a large deviation 1. The material level enters the blind spot
2. The distance measurement value is greater than the installation height
3. There is strong electromagnetic interference
4. Objects that block sound waves
5. A metal flange is prepared on the level meter
6. The emitting surface or side of the probe is in contact with metal		 1. Elevate the level meter or prevent the level from being too high
2. Modify the installation height to the correct value
3. The instrument must be connected to the ground, and shield the level gauge
4. Change the installation position or add plastic pipes
5. Switch to plastic flanges
6. Use rubber pads to isolate from metal

For the container with the installation port or the probe placed in the round pipe, the length of the flange connection of the 4m, 6m and 8m type level gauge container should be less than 400mm, and the length of the 12m level gauge container should be less than 400mm.
150mm, 15m, 20m, 30m level sensor probes should protrude from the installation port.
