Specifications
Brand Name :
Kacise
Model Number :
KUFM2000
Place of Origin :
China
MOQ :
1
Price :
238~252USD/pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100+
Delivery Time :
5-8 work days
Packaging Details :
carton
Accuracy :
≤1%
Velocity Range :
0~±10m/s, Bi-directional measurement
Pipe Size :
DN32~DN6000
Temperature :
- 30~160℃
Type of Liquid :
Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe Material :
Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed
Signal Output :
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output
Interface :
RS485, support MODBUS
Power Supply :
DC8~36V
Description

KUF2000 Series Clamp On Ultrasonic Flow Meter

Introduction

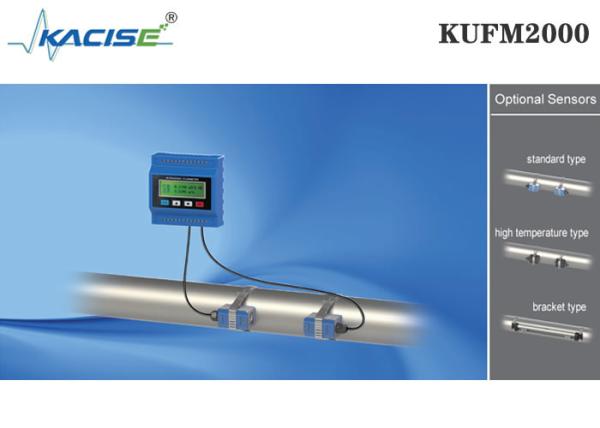

KUF2000 series clamp on ultrasonic flow meter consists of the meter and clamp on sensor.
The clamp on ultrasonic flow meter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.

The KUFM2000 flow meter module has small volume, overall function and low cost.
Main unit uses lead rail installation. Clamp on sensors are installed on the pipe.
Suitable for pipe sizes from DN32mm to DN6000mm.

KUFM2000 Clamp On Type Ultrasonic Flow Meter Module Small Volume Overall Function

Working Condition

Main Unit Sensor
Protection IP65 IP68
Humidity ≤85%RH
Temperature -20~60℃ -30~160℃

Basic Parameters

Accuracy ≤1%
Velocity Range 0~±10m/s, Bi-directional measurement
Pipe Size DN32~DN6000
Temperature - 30~160℃
Type of Liquid Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe Material Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed
Signal Output

1 way 4-20mA output(impedance 0~1K, accuracy 0.1%)

1 way OCT pulse output( Pulse width 6 ~ 1000ms)

1 way relay output
Signal Input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface RS485, support MODBUS
Data Storage SD card regularly store the pre-set results (optional)
Power Supply DC8~36V

Advantage

1. No need to cut off the pipeline, no pressure drop.
2. Easy installation process, simply clamp the transducers on the pipe surface.
3. High accuracy within ±1%.
4. Small size and low cost, suitable for usage in large quantity.
5. Multiple output of 4-20mA, OCT pulse and relay; RS485 interface, support Modbus protocol.
6. Achieve heat measurement by connecting 3-wired heat transducers PT100.

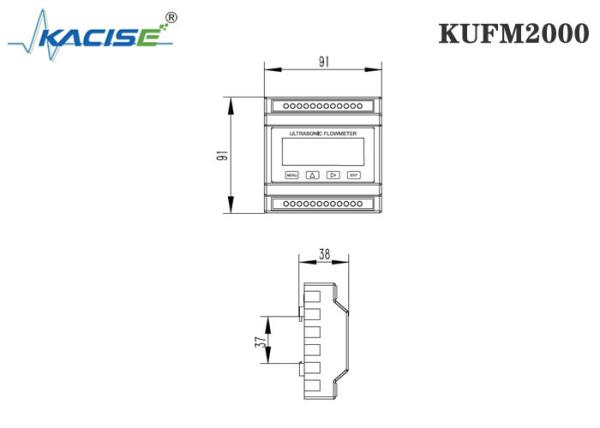

Dimension

KUFM2000 Clamp On Type Ultrasonic Flow Meter Module Small Volume Overall Function

Standard Clamp On Sensor
  • Built-in magnet, easy to be absorbed on pipe
  • IP68
  • Measuring range: DN32~DN6000
  • Temperature range: - 30~90℃

KUFM2000 Clamp On Type Ultrasonic Flow Meter Module Small Volume Overall Function

Type Model Measuring Range Temperature Dimension
Small Size TS-2 DN32~DN100 - 30~90℃ 45×25×28mm
Middle Size TM-1 DN50~DN700 - 30~90℃ 64×39×44mm
Large Size TL-1 DN300~DN6000 - 30~90℃ 97×54×53mm

High Temperature Clamp On Sensor
  • Built-in magnet, easy to be absorbed on pipe
  • IP68
  • Measuring range: DN32~DN6000
  • Temperature range: - 30~160℃

KUFM2000 Clamp On Type Ultrasonic Flow Meter Module Small Volume Overall Function

Type Model Measuring Range Temperature Dimension
Small Size TS-2-HT DN32~DN100 - 30~160℃ 45×25×28mm
Middle Size TM-1-HT DN50~DN700 - 30~160℃ 64×39×44mm
Large Size TL-1-HT DN300~DN6000 - 30~160℃ 97×54×53mm

Mounting Bracket Clamp On Sensor

  • Improve installation efficiency and accuracy
  • IP68
  • Measuring range: DN32~DN700
  • Temperature range: - 40~160℃

KUFM2000 Clamp On Type Ultrasonic Flow Meter Module Small Volume Overall Function

Type Model Measuring Range Temperature Dimension
Standard Small Size Sensor HS DN32~DN100 - 40~90℃ 318×59×85mm
Standard Middle Size Sensor HM DN50~DN300 - 40~90℃ 568×59×85mm
Extended (bracket only) EB-1 ＞DN300 - 40~90℃ 88×59×49mm
High Temp. Small Size Sensor HS-HT DN32~DN100 - 40~160℃ 318×59×145mm
High Temp. Middle Size Sensor HM-HT DN50~DN300 - 40~160℃ 568×59×145mm
Extended (bracket only) EB-1-HT ＞DN300 - 40~160℃ 88×59×49mm

Ordering Information

KUFM2000 Clamp On Type Ultrasonic Flow Meter Module Small Volume Overall Function
