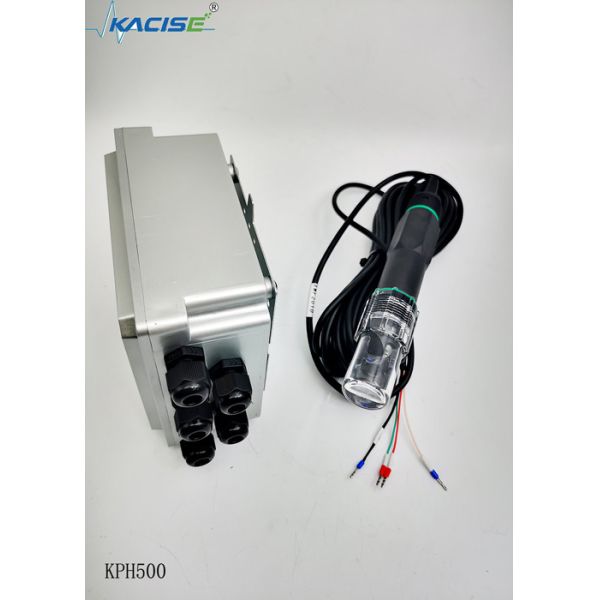

KPH500 Electronic Ph Meter Sensor Online 4 - 20ma Output For Continuous Water Monitoring

Specifications

Brand Name :

kacise

Model Number :

KPH500

Certification :

CE,FDA

Place of Origin :

CHINA

MOQ :

10-1000

Price :

$100-$2000

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

2000pcs/day

Delivery Time :

10-15 days

Packaging Details :

Common package or custom package

Measuring range :

0-14PH;-2000mv-2000mv

Resolution :

0.01PH;1mv

Precision :

2% Calibration accuracy

Operating Temperature :

Transmitter 0-65°C

Material :

PVC

Protection Level :

I65/IP67(customized version)

Signal Output :

485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA Communication (function option)

Supply Voltage :

AC220V or DC24V (choose one of the two)

Power Consumption :

<1W

Display :

LCD Chinese display/TFT color LCD (customized version)

Installation Method :

Bracket drop-in installation

Sensor:Temperature Compensation :

Automatic temperature compensation

Sensor:Protection Level :

ip68

Sensor:Temperature :

0-60°C

Sensor:Material :

PVC

Sensor:Cable Length :

Dedicated PH cable, standard 5 meters (extendable)

Sensor:Operating Temperature :

0-60°C

Sensor:Storage Temperature :

-10-60°C

Description

Production Introduction

The PH/ORP meter is a precision meter used to detect the pH/oxidation-reduction potential of liquids. It is designed with a microcomputer based on the principle of the primary battery and is simple to operate and easy to maintain. Not affected by color, turbidity, colloidal substances, oxidants and reducing agents, it is suitable for the determination of various media such as clean water, wastewater, industrial water, chemical reagents, etc., and is widely used in agriculture, environmental protection and industry.

The sensor uses a composite electrode, which can eliminate the influence of the inconstant "K" value,

A long-term, stable and accurate measurement of PH is realized. The internal structure of the sensor is shown on the right.

KPH500 Electronic Ph Meter Sensor Online 4 - 20ma Output For Continuous Water Monitoring

Features

1. LCD display, Chinese menu operation, stable performance and strong reliability

2. High-performance operational amplifier, ORP positive and negative poles are symmetrical, small drift, high accuracy

3. Data is not lost after power off

4. Dual 4-20mA transmission output, relay high and low alarm control output, RS485 communication

Output

5. Simultaneous display of PH value, temperature value, output current value, high alarm value, low alarm value

PH/ORP size structure chart

Host size

KPH500 Electronic Ph Meter Sensor Online 4 - 20ma Output For Continuous Water Monitoring

Sensor size

KPH500 Electronic Ph Meter Sensor Online 4 - 20ma Output For Continuous Water Monitoring

PH/ORP technical parameters

Class	Performance	PH parameter	OPR parameter
Host	Measuring range	0-14PH	-2000mv-2000mv
	Resolution	0.01PH	1mv
	Precision	2% Calibration accuracy
	Operating Temperature	Transmitter 0-65℃
	Material	PVC
	Protection Level	I65/IP67(customized version)
	Signal Output	485 communication/4-20mA analog output/support HART protocol/NB.GPRS.LORA Communication (function option)
	Supply Voltage	AC220V or DC24V (choose one of the two)
	Power Consumption	<1W
	Display	LCD Chinese display/TFT color LCD (customized version)
	Installation Method	Wall mount
Sensor	Temperature Compensation	Automatic temperature compensation
	Protection Level	ip68
	Temperature	0-60℃
	Sensor Material	PVC
	Cable Length	Dedicated PH cable, standard 5 meters (extendable)
	Operating Temperature	0-60℃
	Storage Temperature	-10-60℃
	Installation Method	Bracket drop-in installation

Ordering Information Selection Table
KPH500	PH/ORP analyzer
	Power supply	DC24V
		AC220V
	Cable length	5m
		10m
		15m
		20m
	Temperature compensation	Sensor without temperature compensation
		Sensor with temperature compensation
	Signal output	Only 4-20mA
		Only 485
		Also with 4-20mA , 485 signal output
		Special custom signal
KPH500-P-DC24V-5m-Sensor without temperature compensation-Only 485	PH host, with DC24V adapter, cable between host and sensor,The cable length is 5 meters, the sensor is equipped without temperature compensation, and is only 485 communication.
KPH500-R-AC220V-10m-Sensor with temperature compensation-Only 485	Optional ORP host, with 220V adapter, line between host and sensor The cable length is 10 meters, the sensor with temperature compensation, and is equipped with only 485 communication signal output.

Website: www.kacise.com

Phone: +86-17719566736

Email: sales@kacise.com

Location: Tangyan South Road, High-tech Zone, Xi'an City, Shaanxi Province, China
