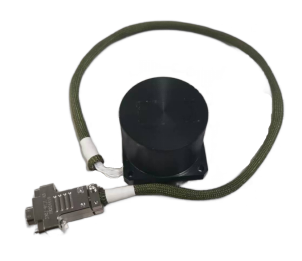

High resolution single-axis precision digital gyroscope, Turn-on time ≤2s, Bias 0°/s±1°/s
High resolution single-axis precision digital gyroscope, Turn-on time ≤2s, Bias 0°/s±1°/s
Specifications
Brand Name :
Kacise
Model Number :
KQ1GY100R75
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Pieces per Week
Delivery Time :
5-8 working days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Power Voltage :
+6V~+20V DC
Turn-on time :
≤2s
Bias :
0°/s±1°/s
Bias stability(1σ)@25°C :
≤15°/h
Bias stability (allan deviation) :
≤2.5°/h
Bias repeatability(1σ)@25°C :
≤15°/h
Bias temperature sensitivity :
≤1°/s
Scale factor nonlinearity :
≤1000ppm
Resolution :
0.01(°/s)
Threshold :
≤0.01°/s
Scale factor :
10000±50(LSB/(°/s))
Interface :
RS422 (bps115200. n. 8. 1)
Data refresh frequency :
≥100Hz
Bias stability :
≤0.03(°/s)@-40°C～+70°C
Size :
35mm×35mm×40mm
Operating temperature :
-40°C～+85°C
Random vibration :
5g rms
Shock :
≥200g
Description

Product Description:

KQ1GY100R75 single-axis digital quartz gyroscope can measure the angular velocity information of the carrier (combat vehicle, UAV, aerial bomb, etc.) in real time. It is suitable for inertial navigation, flight control, attitude stabilization and other systems, and is also widely used in oil, coal, water resources, automobiles, ships, aviation and other fields.

The measurement principle of quartz gyroscope is that the quartz will deform in the process of rotation, which will affect the vibration frequency of the crystal, and the angular speed and direction of the gyroscope can be calculated by measuring the change of the vibration frequency.

Features:

● High resolution

● Digital output

● Wide Bandwidth

● Low Power Consumption

● High Reliability

● Wide Operating Temperature Range

● Small Size

● Fast Start-Up

● Temperature compensation

Technical Parameters:

Parameter KQ1GY100R75
Power supply parameter
Power Voltage +6V~+20V DC
Product performance
Turn-on time ≤2s
Range ±75°/s
Bias 0°/s±1°/s
Bias stability(1σ)@25°C ≤15°/h
Bias stability (allan deviation) ≤2.5°/h
Bias repeatability(1σ)@25°C ≤15°/h
Bias temperature sensitivity ≤1°/s
Scale factor nonlinearity ≤1000ppm
Resolution 0.01(°/s)
Threshold ≤0.01°/s
Scale factor 10000±50(LSB/(°/s))
Interface RS422 (bps115200. n. 8. 1)
Data refresh frequency ≥100Hz
Bias stability ≤0.03(°/s)@-40°C～+70°C
Weight <150g
Size 35mm×35mm×40mm
Environment
Operating temperature -40°C～+85°C
Random vibration 5g rms
Shock ≥200g

Dimensions:

High resolution single-axis precision digital gyroscope, Turn-on time ≤2s, Bias 0°/s±1°/s

Application:

● Petroleum industry

● Spaceflight

● Aviation

● Navigation

● Military weapon

● Vehicle
