Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor
Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor
Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor
Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor
Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor
Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor
Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor
Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor
Specifications
Model Number :
KUM
Place of Origin :
Shaanxi, China
Brand Name :
KACISE
Packaging Details :
The default package for the High Accuracy Low Price Long Distance Water Tank level Ultrasonic Sensor is cartoon, please confirm first before order if the package need custimized.
Supply Ability :
2000 Piece/Pieces per Month
Price :
$200.00/pieces >=1 pieces
Certification :
CE
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
5-8 work days
Type :
Liquid Level Sensor
Usage :
Measuring liquid level, Level Sensor
Theory :
ultrasonic level sensor, Ultrasonic Sensor
Output :
analog, digital, switch, Analog SENSOR
Description :
KUM series
Measuring range :
Min. 0.5 m, Max. 60 m
Output signal :
analog, digital, switch
Blind zone :
Min. 50mm, Max. 200mm
Protection grade :
IP67
Casing :
Stainless steel, Plastic(ABS,PTFE)
Item name :
ultrasonic level sensor
Application :
Liquid level, Grain level, Distance measuring
Port :
Xi'an or other
Description

Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

Brief introduction of Ultrasonic Waste Water Level Sensor

Our Ultrasonic Waste Water Level Sensor and Underground Tank Level Sensor are highly advanced and reliable measurement devices. These sensors are designed with cutting - edge ultrasonic technology.
For the Ultrasonic Waste Water Level Sensor, it is specifically engineered to accurately measure the level of waste water. It can be installed in various waste water treatment facilities, providing real - time data that is crucial for effective waste water management. With its high - precision sensing capabilities, it ensures that the waste water level is constantly monitored within the required range, preventing overflows and other potential issues.
The Underground Tank Level Sensor is an ideal solution for monitoring the liquid level in underground tanks. It is suitable for different types of liquids stored in these tanks, such as fuel, water, or chemical substances. Its robust design allows it to withstand the harsh underground environment, and the ultrasonic principle guarantees accurate and stable level measurements, enabling users to manage and control the tank's contents with confidence.

Features of long range Ultrasonic Waste Water Level Sensor

  • High sensitivity
  • Non-contact
  • Designed for outdoor or indoor environments
  • 9V-28V supply with very low average current draw
  • Sensor operates at 40 KHz, 112 KHz, 175 KHz, 300 KHz, 1 MHz
  • Free run operation can continually measure and output ranger information
  • Multi-kind output type such as analog (40-20mA, 0/1-5V, 0/1-10V), RS485, Can bus.
  • Readings can occur up to every 33mS(30Hz) within 3meters or occur up to every 80ms(12.5Hz) within 10meters.

KUM series

Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

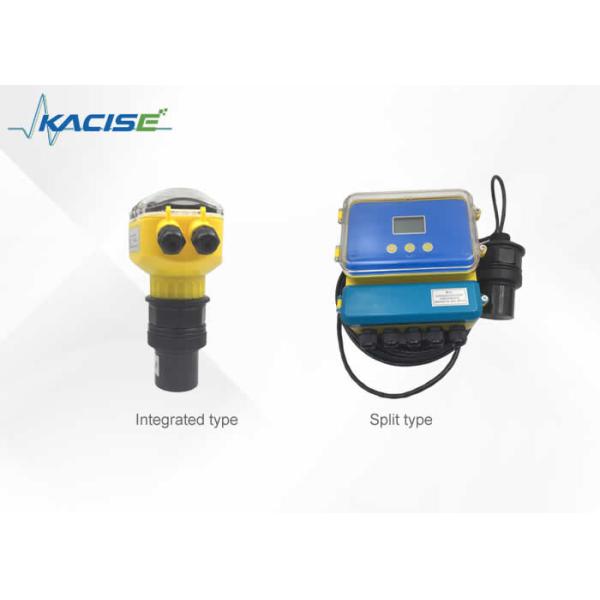

Function Integrated type Split type
Range 5m,10m,15m,20m,30m,40m,50m,60m 5m,10m,15m,20m,30m,40m,50m,60m,70m,
Accuracy 1% 1%
Resolution 3mm or 0.1%(bigger) 3mm or 0.1%(bigger)
Display Chinese and English LED Chinese and English LED
Analog Output

Four-wire 4~20mA/510Ωload

Two-wire 4~20mA/250Ω load

 4~20mA/510Ωload

Relay Output

Two groups:

AC 250V/ 8A or DC 30V/ 5A

Status can be programmed

Two groups for single channel

Four groups for double channels

AC 250V/ 8A or DC 30V/ 5A

Status can be programmed
Power supply

Standard:24VDC

Optional: 220V AC+15% 50Hz

Standard:220V AC+15% 50Hz

Optional:24VDC or 120mA

Customize:12VDC or battery

Environment

Temperature

LED : -20~+60℃,

Probe : 20~+80℃

LED : -20~+60℃,

Probe : 20~+80℃
Communication

Option:485,232 Communication

(manufactures agreement)

Option:485,232 Communication

(manufactures agreement)
Protection Grade

LED: IP65,

Probe: IP68

LED: IP65,

Probe: IP68
Cable Probe No standars:10m longest:100m
Probe installation According to the range and the probe type According to the range and the probe type

Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

Function Integral type
Moasuroment range 5m,10m
Measurement accuracy 0.5%~1%
resolution 3mm or 0.1% ( which is bigger)
display English LCD
Analog output: 2 wires 4~20mA
Power supply 24VDC
Environment temperature

Display instrument-20~+60℃,

transducer-20~+80℃
Protection grade Display instrument IP65. transducer IP68
transducer cable no
Transducer installation According to the range and transducer select
Probe type

There are 6 type probes now and also there are 3 types under development.

Type1:PVDF

Type2: aluminium alloy

Type3:ABS

Type4: stainless steel 316

Type5: Teflon

Type6: titanium alloy

We suggest the customer describe the application field in detail, such as the media type, the pressure surrounded, the temperature and humidity. Our engineer will choose you the proper probe.

Product folw

Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

Application

Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

Company Information

Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

We supply high quality Turbine Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.

Our Services

  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.

FAQ

1. Q: What information need to be provided to choose the suitable Ultrasonic Waste Water Level Sensor Underground Tank Level Sensor?

A: Please provide us: measuring range,medium,power supply,output, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
