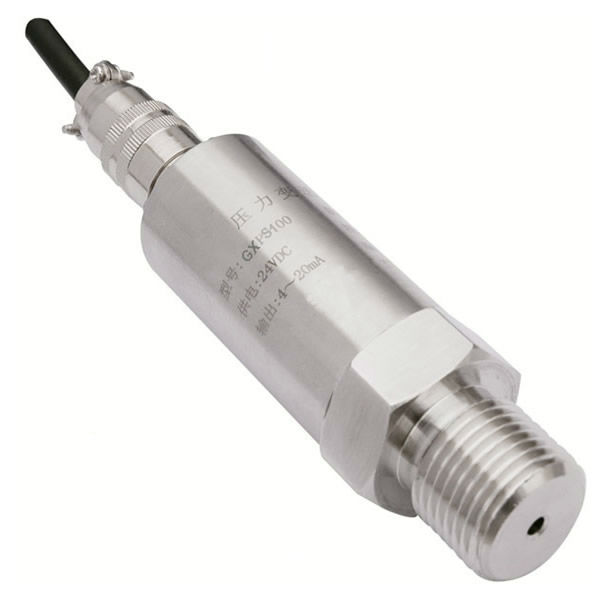

Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Low cost pressure sensor 0-10v
Specifications
Place of Origin :
Shaanxi, China
Brand Name :
KACISE
Model Number :
GXPS series
output :
Optional 0/1-5V 0-10V 4-20mA
Usage :
Pressure Sensor
Theory :
Resistance Sensor
Output :
Analog Sensor
Name :
pressure sensor 0-10v
Pressure range :
0~2bar ......60bar
Accuracy :
±1%F.S, ±2%F.S, ±2.5%F.S
Certification :
CE
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Port :
Shanghai or other
Supply Ability :
10000 Piece/Pieces per Week negotiable
Price :
$35.00 - $60.00/pieces
Description

Low cost Pressure sensor 0-10v

1. Parameter

Spec.

Value

Pressure range

0~2bar ......60bar

Load pressure

2 times nominal value pressure (2X)

Rupture pressure

3times nominal value pressure (3X)

Accuracy

±1%F.S, ±2%F.S, ±2.5%F.S

Stability

Typical value 1%F.S, Max. value: 2%F.S

Operating temperature

-40°C~125°C

Compensation temperature

-10°C~80°C

Medium compatibility

All Caustic Medium Compatible with 1Cr18Ni9Ti

Electrical performance

3 wire system

Output signal

0~5V

Power supply

10~24Vdc

Load pressure

(U-10)/0.02(Ω)

Insulation

>100MΩ@50V

Electric strength

500V@60 second

Vibration/Impact

10g/5~2000Hz, axes X/Y/Z20g sine 11ms

Pressure durable

2×106pressure circle @25°C

Electrical connection

Packard, DJ7032-2.3, water proof joint

Pressure port

M14×1.5, M12×1, G1/2,

Pressure type

G,

Certificate

CE

EMI/EMC

EMI: EN50081-1/-2; EMC: EN50082-2

2. Electrical connection mode & structure:

Low cost pressure sensor 0-10vLow cost pressure sensor 0-10v

Electrical connection

Three wire

Cable

Waterproof joint

Packard

Power

Red

A

A

Output

Blue/green

B

B

Power ground

Black

C

C

Output signal

Three wire

0.5~4.5V, 1~3V, 1~5V (dc)

3. Feature

Accuracy ±1, ±2, ±2.5%F.S

High stability, high reliability

Import German ceramic core body

Digital calibration

Various connectors and pressure port

Zero can be arbitrarily displaced

Variable drive can be between 50 to 100%

CE certificate

RoHS compliant

4. Apllications

Compressor

Floor house water supply

Hydraulic control

Air conditioning unit

Automobile engine

Automatic detection system

Hydraulic unit

Refrigeration equipment

1). The sensor is desgined specially for space flight, petroleum, chemical, mining machinery Testing System, micropressure measurement, high-speed railway carriage usage.

2). The customer is spreading all over the world for shipbuilding ,special truck,chemical industry,

3). Help our customer cut the cost obviously.
