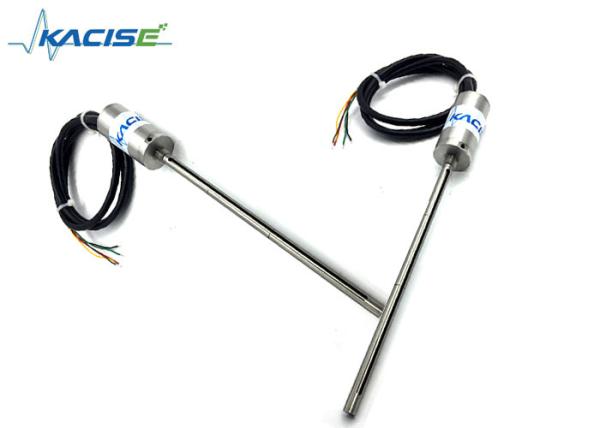

IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor
IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor
IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor
IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor
Specifications
Brand Name :
KACISE
Model Number :
KCF100
Certification :
CE
Place of Origin :
CHINA
MOQ :
0-100
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
10000pcs/month
Delivery Time :
5-8 working days
Packaging Details :
packed in standard packages or customers requests available
Level range :
0~150mm
Accuracy :
0.5%, 1%
Medium :
Liquid, Solid
Output :
4-20mA
IP Grade :
IP68
Cable :
Polyethylene cable
Description

4-20mA Temperature And Pressure Integrated Liquid Level Transmitter

Introduction

KCF100 series temperature and pressure integrated liquid level transmitter is an adjustable capacitance type liquid level transmitter developed by our company for high precision and high stability measurement of oil level and water level. It has short-circuit protection and certain over-voltage surge protection capability, and has the characteristics of fast response, wide voltage supply, strong load capacity and wide temperature measurement range. It supports two calibratable analog outputs, ModBus RTU communication protocol and fast forced zero function, the overall performance is stable and reliable.

Electronic interface and signals definition

Color Definition
Red +V
Black GND
Brown Level output 4-20mA
White Temperature output 4-20mA
Green RS485-A
Yellow RS485-B

Parameter:

IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor

Parameter:

Spec. Numerical value
Level range 0~150mm
Temperature range -30~100℃
Accuracy

Typical error of level 0.35%

Temperature error ±2.5 °C
Response time

Level measurement is typically less than 1 seconds

Temperature measurement is typically less than 3 seconds.
Load resistance ≤300Ω
Working current < 60mA (when two 4-20mA output same time)
Operating temperature -30°C~80°C
Compensation temperature -10°C~80°C
Storage temperature -40°C~125°C
Medium compatibility All Caustic Medium Compatible with 316L
Output signal 4~20mA / RS485-Modbus
Power supplies 9~24Vdc
Connection M10.00*1mm male thread
Cable Polyethylene cable
IP Grade IP68

Model Selection:

KUM-B
Measurement Range
A 5m
B 10m
C 15m
D 20m
E 30m
F 40m
G 50m
H 60m
Output Signal
A 4-20mA
Accuracy
0.5 0.5%
1.0 1%
Power Supply
A 24Vdc
B 11~30Vdc
Probe Type
A PVDF
B Aluminum alloy
C ABS
D Stainless steel 316L
E Teflon
F Titanium alloy

Applications and Installations:

  • Petroleum, chemical, electric power
  • Equipment supporting, hydraulic and other industries
