High Quality DC&AC Output GXPS100 Universal Piezoresistive Pressure Transmitter

1,Introduction

GXPS100 Series pressure transmitter is a high-volume, civil and industrial use,cost-effective products. Widely used in gas, liquid pressure detection, such as water,oil, mild corrosive liquids and gases.

The product uses 1Cr18Ni9Ti stainless steel structure, import the internationally famous brand of diffusion of oil-filled pressure core body, dedicated sensor instrumentation amplifier circuit which can facilitate to calibrate its zero and full scale.

2,Feature

• Various connector and pressure port
• Non-polarity 2 line current output
• DC&AC output
• CE certificate, intrinsically safe prevent explode
• Accuracy: 0.5%F.S
• Import high quality core
• Multiple pressure range and output signal

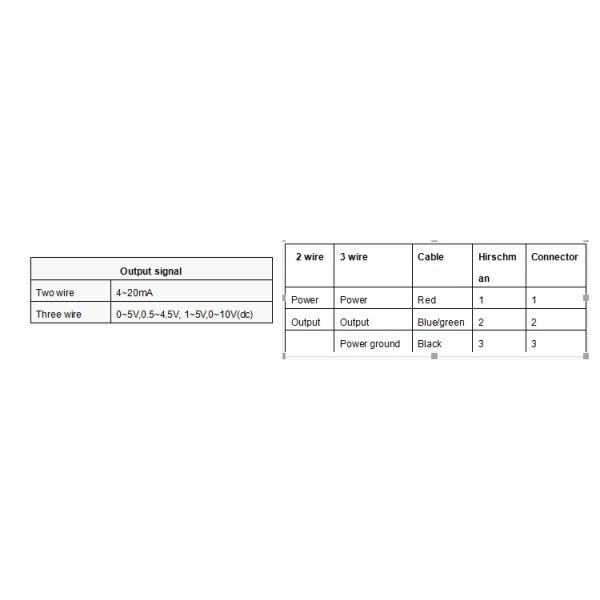

3,Electronic interface and signals definition




4,Parameter

5,Application

☆ Vessel pressure
☆ Petrochemical
☆ Industrial Process Control
☆ Gas storage facility
☆ Hydraulic and lubrication
☆ Constant pressure water supply
☆ Pipeline pressure

6,Ordering information

GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

• Type: PS100=universal type, PS100E=intrinsically safe mode, PS110=PS100+indicator
• Range: 0~0.2…60MPa, 0~2bar…600bar= the upper limitation of the range
• Output:: A=4~20mA, V=0~5Vdc, V05=0.5~4.5Vdc, V1=1~5Vdc, V2=0~10Vdc
• Power: 5Vdc, 24Vdc, 6~24Vdc, 10~30Vdc, 11~30Vdc
• Pressure port: M=M20×1.5, G=G1/4, G2=G1/2, R2=R1/2, N2=NPT1/2
• Electric connection: H=DIN43650-A, GX=GX16-7, C=fixed cable outlet, CW=waterproof joint outlet
• Cable length: XX m=XX meter 1-150m
• Package: Bb, Foam

e.g. GXPS100-3MPa- A-0.5-DC24-P-Foam

PS100, test range is 0-3MPa, accuracy is 0.5%, 24Vdc power supply 4-20mA output, pressure port with M20X1.5, foam packaged.
