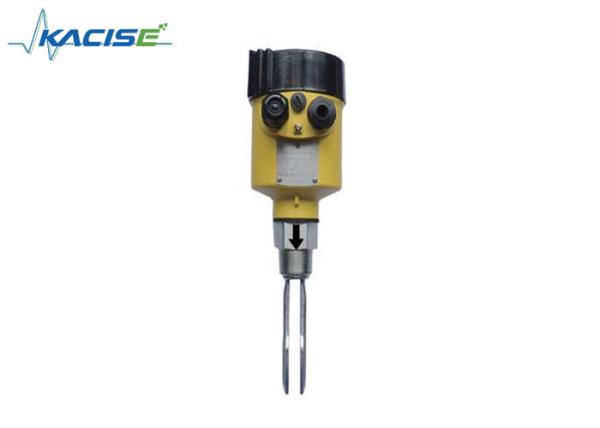

Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output
Specifications
Brand Name :
KACISE
Model Number :
KVF Series
Certification :
CE
Place of Origin :
CHINA
MOQ :
0-100
Price :
USD100-250pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
10000pcs/month
Delivery Time :
5-8 working days
Material :
Aluminum Alloy
Power Supply :
22-60VDC, 22-220VAC, 50/60Hz
Output :
DPDT 5A/250VAC or NPN/PNP
Installation :
vertical or horizonta
Description

KVF Series Vibrating Fork Liquid / Solid Level Switch Tuning Folk Liquid Level Switch

KVF series is an compact vibrating fork liquid level switch. It can be applied to the level measurement of vessels and storage tanks under difficult conditions. It is not only suitable to use in foams, air bubbles, viscous liquid and conditions with complex vibrating interference, but also particularly suitable to be installed in small containers and tanks with constricted mounting space. It measures the liquid/solid level by detecting the change of the vibration frequency when the folk body is immersed in medium.

1. Working Principle:

KVF level switch fulfills the level measurement by detecting the change of the vibration frequency when the folk body is immerced in medium. The frequency of the tuning fork will obviously decreases when it contacts the medium, and the change shall be detected by the intelligent control circuit and converted into corresponding output signal.

2. Technical Features:

  • The length can be up to 3m;
  • DPDP SPDT Relay / NPN / PNP output
  • 20~250VAC / VDC, 50/60Hz
  • Whole metal construction, sturdy and durable.
  • Self-learning function. I can directly detect the density of different medium via the buttons.
  • The vibration amplitude of the fork is large which can be up to 10mm. It can shake off the low-viscosity local hanging material on the induction rod to avoid any error thus caused;
  • Bright red LED warning light.
  • Can be used for measurement of liquid, powder, solid particals and stickly medium.

3. Technical Specification:

Item Specification
Controller Casing Material Aluminium alloy (IP65)
Power Supply 22-60VDC, 22-220VAC, 50/60Hz
Power Consumption DC-3W (MAX), AC-15W (MAX)
Output DPDT 5A/250VAC or NPN/PNP
Operating Pressure -1-40bar
Installation

vertical or horizonta

4. Spefication of Different Models:

Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output

Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output

Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output

Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output

Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output

Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output

Vibrating Fork Level Switch For Solids / Tuning Folk Liquid Level Switch KVF Series NPN / PNP output

5. Model Selection:

KVF
Model
110 standard type
111 lengthen type
120 sanitary type
130

acid and alkali resistant
140 big fork body type
141 big fork body lengthen type
150 small fork standard
151 small fork lengthen type
160 short fork standard
161 short fork sanitary joint type
180 explosion proof type
190 vibrating fork rod
Power and Output
Code Power Supply
A 224VDC-220VAC relay output
B (NPN PNP transistor output)
Code Connection Code Size
A 3/4” (20A) M 5Kg/cm2
B 1” (25A) N 10Kg/cm2
C 1-1/2” (40A) O 150Lbs
D

2” (50A)

 P

300Lbs
E 2-1/2” (65A) Q PT
F 3” (80A) R PF (G)
G 4” (100A) T NPT
H 5” (125A) U sanitary joint
I 6” (150A) W PN1.0
S customize X PN1.0
Y PN1.0
Z PN1.0
S customize
Rod Length (mm)

Note:

1. The total length of the product is affected by the function adjustment, and the tolerance is ±5mm.

2. Features, specifications and dimensions could be modified when necessary without prior notice.
