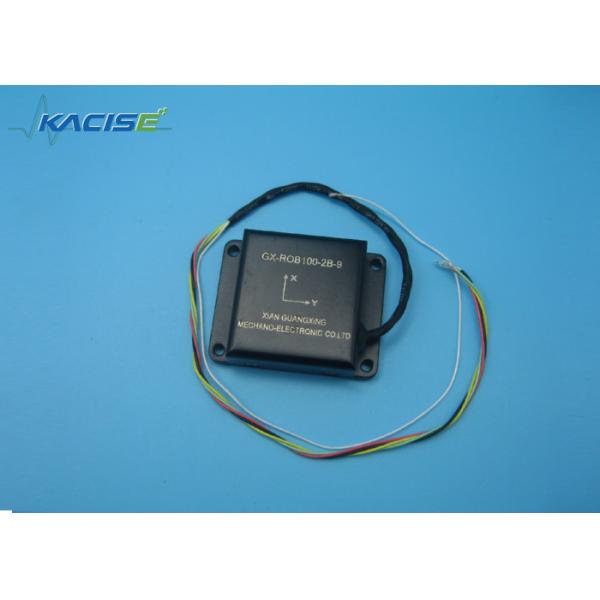

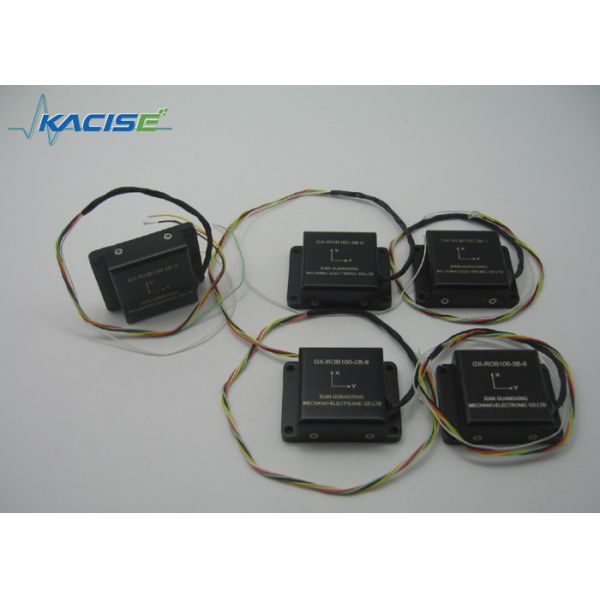

Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control
Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control
Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control
Metal Shell Mems Gyro Sensor Anti Interference With Platform Level Control
Specifications
Brand Name :
Kacise
Model Number :
GX-ROB100
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Pieces per Week
Delivery Time :
5-8 working days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Input voltage (Vdc) :
7.5 ~ 32Vdc
Measuring range (°) :
± 15 ~ ± 90
Bias :
≤ 0.2
Bias Repeatability :
≤ 0.05
Start time (s) :
<0.5s
Bandwidth :
8-28Hz
Resolution(°) :
≤ 0.03
Performace :
DIP
Description

Angel Measuring Instruments Level Measurement Platform and Platform level Control GX-ROB100 Biaxial inclination Sensor

Feature

  • Built-in angle conversion and temperature compensation, small error.
  • Data output via RS422 interface.
  • Metal shell, anti-interference

Product description

Using micro-electromechanical systems (Micro Electro-Mechanical System, MEMS) technology, which combines angular rate and linear acceleration measurement as a whole, for the roll angle, pitch angle, three-dimensional and three-dimensional acceleration angular rate measurements. Attitude angle and angular rate deviation through Kalman filter algorithm to estimate and correct.

Application field

  1. Angle measuring instruments,
  2. Level measurement platform,
  3. Platform level control,
  4. Measuring instruments and heavy mechanical stability,
  5. Acceleration and motion measurement,
  6. Automotive control, inertial navigation,
  7. Seismic monitoring and other measurement systems

Datasheet

Technical parameters performance indicators
Input voltage (Vdc) 7.5 ~ 32Vdc
Performance Dip
Measuring range (°) ± 15 ~ ± 90
Bias ≤ 0.2
Bias stability ≤ 0.05
Bias Repeatability ≤ 0.05
Start time (s) <0.5s
Bandwidth 8-28Hz
Resolution(°) ≤ 0.03
Nonlinearity (% FS) <0.05% of FS
Data refresh rate 50ms
Inter face RS422 interface
Working Temperature (℃) -40 ℃ ~ +85 ℃
Storage Temperature (℃) -55 ℃ ~ +100 ℃
Resistance Acceleration(g) 20000
Weight (g) <150
Volume (mm3) 48 * 36 * 15

Dimension (unit: mm)

Metal Shell Mems Gyro Sensor Anti Interference With Platform Level ControlMetal Shell Mems Gyro Sensor Anti Interference With Platform Level Control
