Reliable Accelerometer Impact Sensor Stainless Steel Core Materials Explosion Proof
Reliable Accelerometer Impact Sensor Stainless Steel Core Materials Explosion Proof
Reliable Accelerometer Impact Sensor Stainless Steel Core Materials Explosion Proof
Reliable Accelerometer Impact Sensor Stainless Steel Core Materials Explosion Proof
Specifications
Brand Name :
Honeywell
Model Number :
QAT-160
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Pieces per Week
Delivery Time :
5-8 working days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Name :
Accelerometer
Bias :
<20 mg
Range :
±20 g
Bandwidth :
<20 Hz
Core materials :
Stainless Steel
Type :
QAT-160
Description

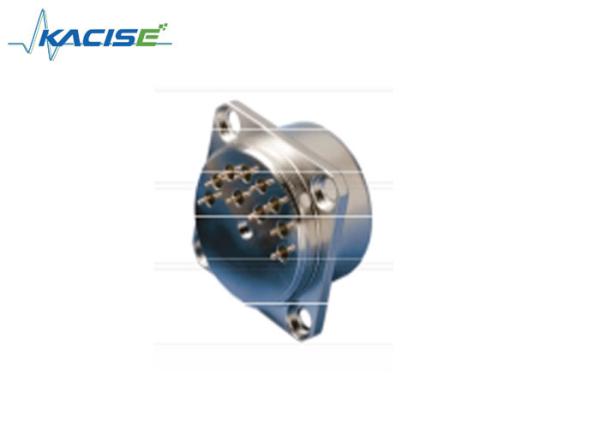

HoneywellQA-T160 and QA-T185 Accelerometer

Description

For high-temperature Q-Flex® technology in a ruggedized package, Honeywell produces the QA-T160 and QA-T185 models for down-hole measurement-while- drilling and wireline applications.

As with the entire Q-Flex accelerometer family, QA-T160 and QA-T185 feature a patented Q-Flex etched-quartz- flexure seismic system. An amorphous quartz proofmass structure provides excellent bias, scale factor, and axis alignment stability.

The integral Q-Flex electronics develop an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer-supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

The QA-T160 and QA-T185 also include a current- output internal temperature sensor. By applying temperature-compensating algorithms, bias, scale factor, and axis misalignment performance are dramatically improved.

Robust design and quality assurance provides superior reliability.

Features

· High temperature capability

· Environmentally rugged

· Analog output

· Square or round mounting flange options

· Field-adjustable range

· Internal temperature sensor for thermal compensation

· Low power electronics

· Built-in test

Configuration Drawings

Reliable Accelerometer Impact Sensor Stainless Steel Core Materials Explosion Proof

Technical Specifications

Per Performance Characteristics
Input Range ±20 g
Bias <20 mg
Residual modeling error <450 µg
Scale Factor 2.75 mA/g ±1.8%
Residual modeling error <450 ppm
Axis misalignment <20 mrad
One-year repeatability <400 µrad
Vibration rectification (50-500 Hz) <100 µg/g²
Threshold and resolution <5 µg
Bandwidth <200 Hz
Environmental
Vibration, operating & survival
Sine vibration 30g peak,50 to 800Hz
Random vibration 20 grms
Shock
Operating 1000 g
Survival (-40 to 70°) 2000 g
Electrical
Input voltage ±12.5 to ±15.5 VDC
Quiescent current 6 mA per supply
Quiescent power 180m Watts
Physical
Weight 55 grams
Size 1.0 in. dia. X 0.73 in. high
Core materials Stainless Steel
Performance by Model QAT160 QAT185
RSS Bias & Scale Factor
- One-year repeatability		 1 mg 1.5 mg
Operating temperature -40 to 160ºC —40 to 185ºC
Survival temperature 175ºC intermittent 200ºC intermittent
