Environmentally Rugged Accelerometer Sensor High Precision Compact Design，Input Range ±30
Environmentally Rugged Accelerometer Sensor High Precision Compact Design，Input Range ±30
Environmentally Rugged Accelerometer Sensor High Precision Compact Design，Input Range ±30
Environmentally Rugged Accelerometer Sensor High Precision Compact Design，Input Range ±30
Specifications
Brand Name :
Kacise
Model Number :
QA-750
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Pieces per Week
Delivery Time :
5-8 working days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Name :
Accelerometer
Bias :
<8
Input Range :
±30
Input Voltage :
±13 to±18
Case Material :
300 Series Stainless Steel
Type :
QA-750
Description

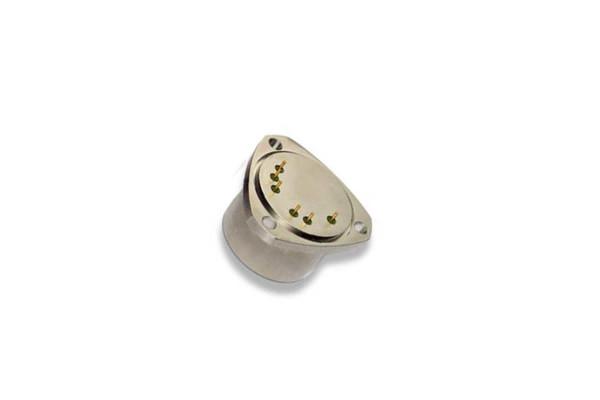

Q-Flex® QA-750 Accelerometer

Description

Cost-effective inertial-grade sensor

For Q-Flex technology in an economical package, Honeywell produces the QA750 for a broad array of moderate performance applications.

As with the entire Q-Flex family of accelerometers, the QA750 features patented Q-Flex® etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment stability.

The integral electronics develops an acceleration proportional output current providing both static and dynamic acceleration measurements. By use of a customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

As an option, the QA750 can be provided with the temperature-compensating algorithm where bias, scale factor, and axis misalignment performance are dramatically improved.

Robust design and quality assurance provides superior reliability.

Features

· High value

· Environmentally rugged

· Analog output

· Compact design

· Field-adjustable range

· Built-in test

·Optional thermal compensation

Configuration Drawings

Environmentally Rugged Accelerometer Sensor High Precision Compact Design，Input Range ±30Environmentally Rugged Accelerometer Sensor High Precision Compact Design，Input Range ±30

Environmentally Rugged Accelerometer Sensor High Precision Compact Design，Input Range ±30

Technical Specifications

Performance
Input Range [g] ±30
Bias [mg] <8
One-year Composite Repeatability [µg] <1000 (w/o model data)
Temperature Sensitivity [µg/ºC] <60
Scale Factor [mA/g] 1.20 to 1.46
One-year Colmposite Repeatability [ppm] <1000 (w/o model data)
Temperature Sensitivity [ppm/ºC] <190
Axis Misalignment [µrad] <7000
One-year Composite Repeatability [µrad] <300
Vibration Rectification [µg/g2rms] <60 (50-500 Hz)
<200 (500-2000 Hz)
Intrinsic Noise [µg-rms] <7 (0-10 Hz)
<70 (10-500 Hz)
<1500 (500-10,000 Hz)
Environment
Operating Temperature Range [ºC] —55 to +95
Shock [g] 200
Vibration Peak Sine [g] 20 @ 30-500 Hz
Resolution/Threshold [µg] <1
Bandwidth [Hz] >300
Thermal Modeling
-010 NO
-020 YES
Electrical
Quiescent Current per Supply [mA] <16
Quiescent Power [mW] @ ±15 VDC <480
Electrical Interface Temp Sensor
Voltage Self Test
Power / Signal Ground
Input Voltage ±13 to ±18
Physical
Weight [grams] 52.5 ±4
Diameter below mounting surface [inches] Ø1.07 ±0.01
Height - bottom to mounting surface [inches] .600 Max
Case Material 300 Series Stainless Steel
