Specifications
Brand Name :
Kacise
Model Number :
KWS-300
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
0-100
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
15
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests avai...
Accuracy :
1%
Resolution :
1uS/cm
Response time :
<2 sec
Ip Grade :
IP68
Maximum operating pressure :
6 bar
Temperature Range :
0~50℃
Output :
RS-485, MODBUS protocol
Power supply :
DC 5~12V, <50mA
Temperature Sensor :
NTC
Electrode material :
Nickel
Description
Product Description

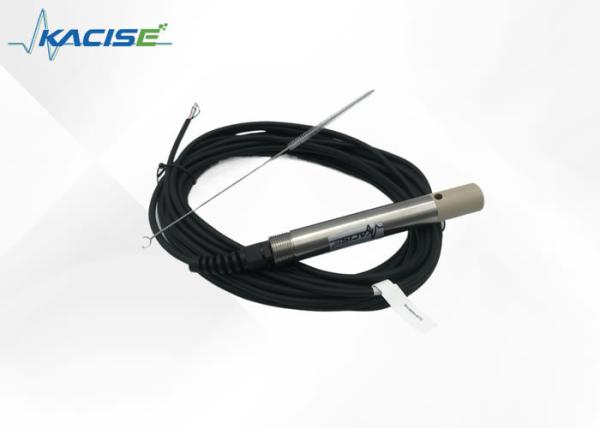

KWS-300 Digital Conductivity Sensor

Introduction

Kacise KWS-300 digital conductivity sensor with new generation of four-electrode / six-electrode
technology. Wide range of measurement, automatic switching measurement range, built-in temperature
sensor, Real-time temperature compensation. Excellent resistance to pollution, even in harsh
environments long-term online monitoring, there will be no polarization. RS485 output, can be networked
without controller

Feature

Digital sensor, RS485 output, support Modbus
Wide measuring range, automatic switching measurement range
Built-in temperature sensor, real-time temperature compensation
Four-electrode / six-electrode technology, no polarization

Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68

Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68

Specification

Item Four-electrode conductivity sensor Six-electrode condutivity sensor
Model KWS-301 KWS-302 KWS-303
Measuring Range 1uS/cm~200mS/cm 1uS/cm~100mS/cm 1uS/cm~100 mS/cm
Accuracy 1%
Resolution 1uS/cm
Response time <2 sec
Ip Grade IP68
Maximum operating pressure 6 bar
Temperature Range 0~50℃
Output RS-485, MODBUS protocol
Power Supply DC 5~12V, <50mA
Temperature Sensor NTC
Electrode material Nickel
Wetted Part Material PEEK
Sensor size Φ 22*146.5 mm Φ 22*140 mm
Cable Length Standard 10m, customizable 5m, 15m and 30m cables
Calibration Method One/Two-point calibration

Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68

Four Electrode Digital Conductivity Water Quality Monitoring Equipment For Aquaculture with Ip Grade IP68

Company Information

Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our service

  • Your inquiry will be replied in 24hours.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design product and some of our sensors.
  • Protection for your marketting area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
