10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth
10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth
10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth
10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth
10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth
10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth
Specifications
Brand Name :
Kacise
Model Number :
KUS630
Certification :
certificate of explosion-proof, CE
Place of Origin :
China (Mainland)
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
10000 Pieces per month
Delivery Time :
5 work days
Packaging Details :
gift box,carton box
Response Time :
＜50ms
Beam Angle :
7°±2
Temp. Compensation :
inside/outside/fix temp.
Operating Voltage :
14.5VDC~27VDC
Output :
RS485,0~5V
Operating Ambient Temp. :
0~70℃ (-40~85℃, -55~125℃, etc, customizable)
IP grade :
IP68
Detection Range :
200mm~3000mm
Transducer Frequency :
70KHZ
Repeatability Precision :
≤1%
Usage :
Long range object detection
Range :
10-30m
Description

10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth

Product introduction

Our 10m Ultrasonic Water Level Sensor for Tank is an exceptional device designed to accurately measure water depth within tanks. This high - performance sensor utilizes ultrasonic technology to provide reliable results.
With a maximum measuring range of 10 meters, it can handle various tank sizes and water storage capacities. It is perfect for industrial tanks, water reservoirs, and even large - scale storage facilities. The ultrasonic principle ensures non - contact measurement, eliminating the risk of interference with the water or potential damage to the sensor.
This sensor is highly accurate, providing precise water level data that is crucial for effective water management. It can be easily installed on the top or side of the tank, depending on the specific requirements. Its robust design allows it to withstand different environmental conditions, ensuring long - term stability and consistent performance. Whether for monitoring water consumption, preventing overflows, or optimizing water usage, this 10m Ultrasonic Water Level Sensor is an indispensable tool for any water - related application in tank systems.

Product features

  • High sensitivity.
  • Compact and robust structure.
  • IP68 high protection rating.
  • Corrosion resistant casing, suitable for corrosive medium and application

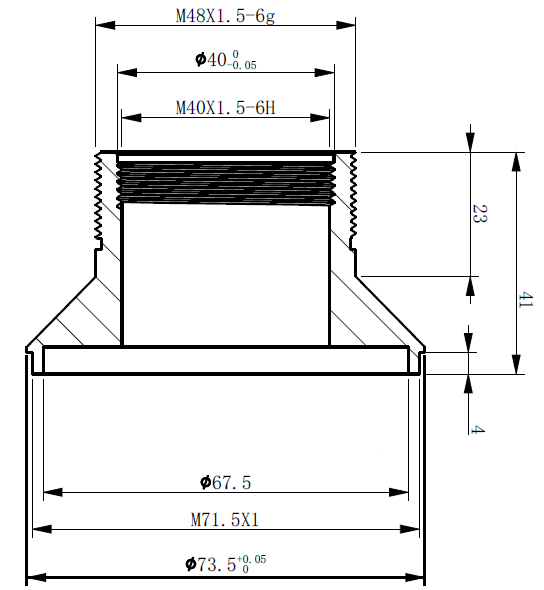

Overall Size

The unit is mm.

Electrical Connection and Signal Definition

Pin Color Define
1 red Power positive
2 black Power return ground
3 yellow Analog output,voltage output,current output switching value output
4 blue RS485 A+ or UART TXD
5 green RS485 B- or UARTRXD

Parameters

Model:KUS630
Measuring range 600... 15000 mm
Blind area 0 ... 600 mm(less than 600mm is an unstable work area, it is not recommended to work in this range);there is a 300mm blind zone version that can be customized.
Power supply 3.3 ... 30 V DC , ripple 10 %SS
Working current

≤ 45 mA(maximum measurement speed)

Low-power version: the hibernation power is less than]0.3mA, the transmit power is less than 20mA (less than 2ms), and the receive power is less than 5mA(less than 150ms).
Output

1 Programmable analog output 0-10V.

2 RS485 output.

3 UART serial port output

4 .4-20mA output

5.Switch output
Accuracy ≤1 %

Temperature

compensation

 yes

The working conditions

Operating temperature -25…70℃(248...343K)
Storage temperature -40…85℃(233...358K)

Other instructions

Electrical connection 5-wire cable
Protection grade IP68
Material Housing PTFE/PVC

Application

Product folw

10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth

Application

10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth

Company Information

10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

We supply high quality Turbine Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.

Our Services

  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.

FAQ

1. Q: What information need to be provided to choose the suitable 10m Ultrasonic Water Level Sensor For Tank instrument to measure water depth?

A: Please provide us: measuring range,medium,power supply,output, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
