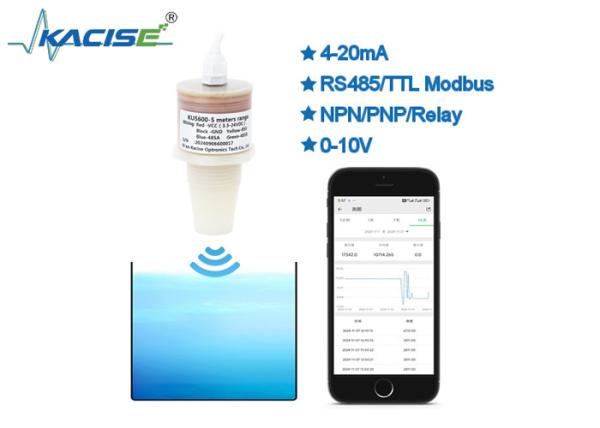

RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
Specifications
Brand Name :
Kacise
Model Number :
KUS600
Certification :
ce,ISO9001
Place of Origin :
China (Mainland)
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 Pieces per Week
Delivery Time :
5work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Product :
Ultrasonic Distance Sensor
Detection Range :
300mm~5000mm
Transducer frequency :
approx. 220kHz
Output :
RS485 + 4-20mA/0-10V
Input power :
3.3V~24V
IP grade :
IP68
Material :
PVDF
Type :
Waterproof
Theory :
Ultrasonic Sensor
Warranty :
12 Months
Product name :
PVDF 5m Ultrasonic water level meter
Description

RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank

1. Electronic interface and signals definition

Cable color Pin Description Note
Red 1 Power supply
Black 2 GND
Yellow 3 Analogue output The 600B will work in mode 1 or 0 cannot work in power save mode, if the 4-20mA, 0-3.3V 0-5V analogue output used.
Blue 4 RS485A+ TTL-TXD for ttl output signal
Green 5 RS485B- TTL-RXD for ttl output signal

For switch output

Cable color Pin Description Note
Red 1 Power supply
Black 2 GND
Yellow 3 Switch output Load current 1A@60V
White 4 Switch output
Brown 5 RS485A+ TTL-TXD for ttl output signal
Green 6 RS485B- TTL-RXD for ttl output signal

2.Parameter

Model: KUS600
Measuring range

600... 5000 mm.

The measure distance can reach 6 meters if the power supply is 24V.
Blind spot 600 mm
Supply voltage 3.3 ... 24 VDC,ripple 10 %SS
No-load supply current I0 ≤ 20 mA active period and ≤0.3mA during sleep time
Output signal 0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output.
Measurement accuracy ≤1 %F.S.
Temperature compensation Yes
Ranging resolution 0.1mm；

Working conditions

Working temperature -40…85℃(233...358K)
Storage temperature -40…85℃(233...358K)

Other instructions

Electrical connection 5-core cable (analog output), 6-core cable (switch output)；
Protection class IP68
shell material PVC /PVDF/PTFE/ABS

3. Dimensions

Unit in the diagram is mm

RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank


4. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.

5. Ordering information

RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank

RS485 5m Ultrasonic Water Level Meter Sensor KUS600 5V For Septic Tank
