KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
Specifications
Brand Name :
Kacise
Model Number :
KWS800
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100+
Delivery Time :
5-8 work days
Packaging Details :
carton
Fluorescent dissolved oxygen probe Range :
0-20mg/L
Fluorescent dissolved oxygen probe Accuracy :
±0.3mg/L
Fluorescent dissolved oxygen probe Resolution :
0.01mg/L
Fiber turbidity probe Range :
0-1000 NTU
Fiber turbidity probe Accuracy :
<5% or 0.3NTU
Fiber turbidity probe Resolution :
0.1NTU
Chlorophyll sensor Range :
0~400 ug/L or 0~100RF
Chlorophyll sensor Accuracy :
0.1 μg/L
Chlorophyll sensor Resolution :
0.1 μg/L or 0.1% RFU
Digital pH probe Range :
0-14pH
Digital pH probe Accuracy :
±0.1pH
Digital pH probe Resolution :
0.01
Power supply :
12V ±5%
Operating temperature :
0~50℃
Self-clean brush :
optional
Current :
100mA
Output :
RS485
Cable length :
Standard 10m, customizable 5m, 15m and 30m
IP Grade :
IP68
Description

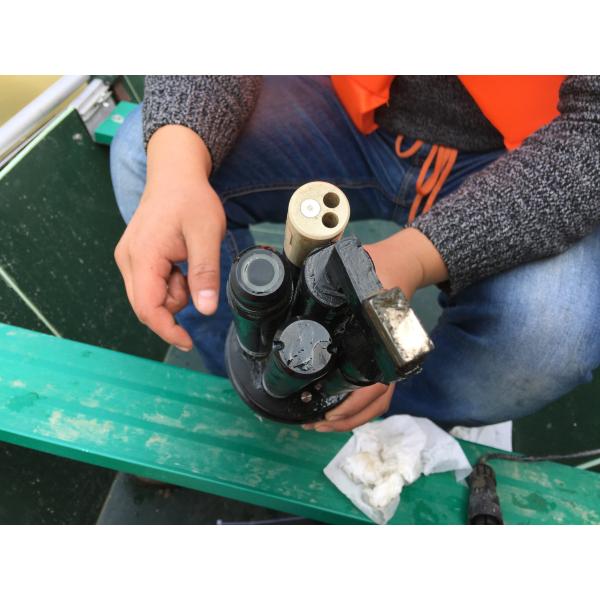

KWS-800 Online Multi-Parameter Water Quality Sensor

Introduction
The Kacise KWS-800 series of multi-parameter water quality sensors
(seven optional parameters) are designed in an all-in-one configuration.
Each sensor has a waterproof connector. Calibration data is stored in the
sensor for field calibration and replacement. Up to 6 Kacise digital sensors
can be connected at the same time, with optional fluori-dissolved oxygen,
four-electrode conductivity, fiber turbidity, digital pH, digital ORP, chlorophyll
and oil in water sensors. Equipped with an automatic cleaning device to
eliminate air bubbles and prevent microbial growth, it can easily meet the
needs of various water environment monitoring such as rivers, lakes,
oceans and groundwater. Extremely reliable, it can run for months without
maintenance in an unattended environment.

KWS800 Online Multi Parameter Water Quality Sensor For Long Term Online Monitoring
Feature
⚫ Digital sensor, RS485 output, support MODBUS
⚫ All calibration parameters are stored in the sensor, each with a waterproof connector for easy
insertion and removal.
⚫ Equipped with automatic cleaning device, it can effectively remove the surface contamination of the
sensor, prevent the growth of microorganisms, more accurate and lower maintenance.
⚫ Optional fluorimetry dissolved oxygen, four-electrode conductivity, fiber turbidity, digital pH, digital
ORP, chlorophyll, water oil and ammonia nitrogen
⚫ Sensor for long-term online monitoring.
⚫ All-in-one structure design, can connect six probes at the same time and measure seven parameters.

Technical Specifications

Fluorescent dissolved oxygen probe Range 0-20mg/L
Accuracy ±0.3mg/L
Resolution 0.01mg/L
Fiber turbidity probe Range 0-1000 NTU
Accuracy <5% or 0.3NTU
Resolution 0.1NTU
Four-electrode conductivity probe Range 1us/cm-200ms/cm 1us/cm-100ms/cm
Accuracy 1% FS
Resolution 0-1000uS/cm; 0.1uS/cm; 1mS/cm-100mS/cm
Chlorophyll sensor Range 0~400 ug/L or 0~100RF
Accuracy 0.1 µg/L
Resolution 0.1 µg/L or 0.1% RFU
Digital pH probe Range 0-14pH
Accuracy ±0.1pH
Resolution 0.01
Digital ORP probe Range -999~999mV
Accuracy ±20mV
Resolution 1mV
Oil-in-water sensor probe Range 0-500ppb or 0-5000ppb
Accuracy 5%
Resolution 0.1ppb
Multi-parameter sensor other information Power supply 12V ±5%

Operating

temperature

0~50℃
Self-clean brush optional
Current 100mA
Output RS485
Cable length Standard 10m, customizable 5m, 15m and 30m
IP Grade IP68
