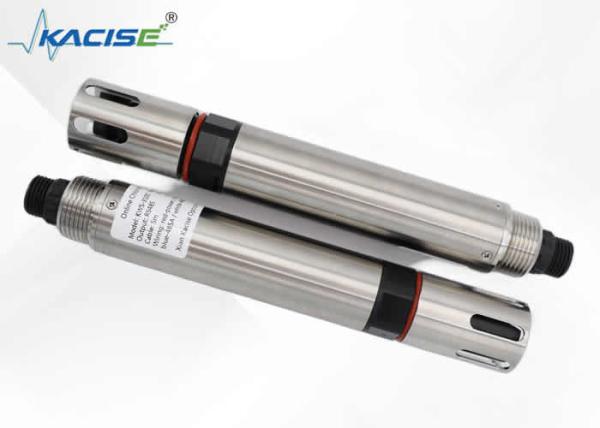

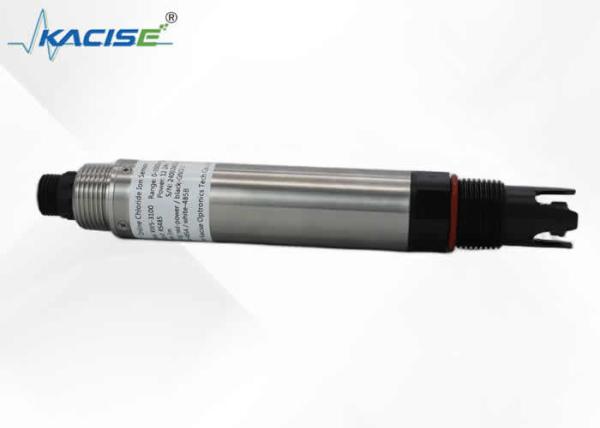

KWS-3100 In-Line Chloride Ion Sensor POM Casing Material for Streamlined Wastewater Treatment
KWS-3100 In-Line Chloride Ion Sensor POM Casing Material for Streamlined Wastewater Treatment
KWS-3100 In-Line Chloride Ion Sensor POM Casing Material for Streamlined Wastewater Treatment
KWS-3100 In-Line Chloride Ion Sensor POM Casing Material for Streamlined Wastewater Treatment
KWS-3100 In-Line Chloride Ion Sensor POM Casing Material for Streamlined Wastewater Treatment
KWS-3100 In-Line Chloride Ion Sensor POM Casing Material for Streamlined Wastewater Treatment
KWS-3100 In-Line Chloride Ion Sensor POM Casing Material for Streamlined Wastewater Treatment
KWS-3100 In-Line Chloride Ion Sensor POM Casing Material for Streamlined Wastewater Treatment
Specifications
Brand Name :
KACISE
Model Number :
KWS-3100
Certification :
CE
Place of Origin :
china
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Precision :
±5% or ±0.05mg/L
Working Pressure :
＜0.2MPa
Ph Range of the Medium :
2~12 pH
Signal Output :
RS-485 bus, Modbus/RTU protocol
Casing Material :
POM
Storage Temperature :
-5～65℃
Power Supply :
12～24VDC
IP Rating :
IP68
Description

The KWS-3100 integrated in-line chloride ion sensor with RS-485 output is used for industrial wastewater treatment

Introduction

The KWS-3100 Integrated In-line Chloride Ion Sensor with RS-485 output is an essential device in industrial wastewater treatment. It is engineered with advanced technology and high-precision components. The integrated in-line design allows for seamless installation and continuous real-time monitoring of chloride ion levels directly within the industrial wastewater stream. The RS-485 output facilitates efficient data transmission to a central control system or other monitoring equipment. This sensor offers excellent stability and reliability, even in the harsh and complex environment of industrial wastewater. It provides accurate and timely data, enabling operators to make informed decisions regarding treatment processes, ensuring compliance with environmental regulations and optimizing the overall efficiency of industrial wastewater treatment.

Features

  • Signal output: RS-485 bus, Modbus/RTU protocol, easy to connect to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.
  • Patented chloride ion electrode, the internal reference solution seeps out from the microporous salt bridge extremely slowly under the pressure of at least 100KPa (1Bar). Such a reference system is very stable, and the electrode life is longer than that of ordinary industrial electrodes.
  • Easy to install: 3/4NPT pipe thread, easy to submerge or install in pipes and tanks.

Technical Specifications

Model KWS-3100
Range and Resolution

0~3500.0mg/L

0~35000mg/L

0.1mg/L

1mg/L
Precision ±5% or ±0.05mg/L
Calibration Function Two-point calibration (zero and slope)
Working Pressure ＜0.2MPa
Ph Range of the Medium 2~12 pH
Temp. Compensation Automatic temperature compensation (Pt1000)
Signal Output RS-485 bus, Modbus/RTU protocol
Casing Material POM
Storage Temperature -5～65℃
Power Supply 12～24VDC
IP Rating IP68

Dimension

KWS-3100 In-Line Chloride Ion Sensor POM Casing Material for Streamlined Wastewater Treatment

Production Flow
