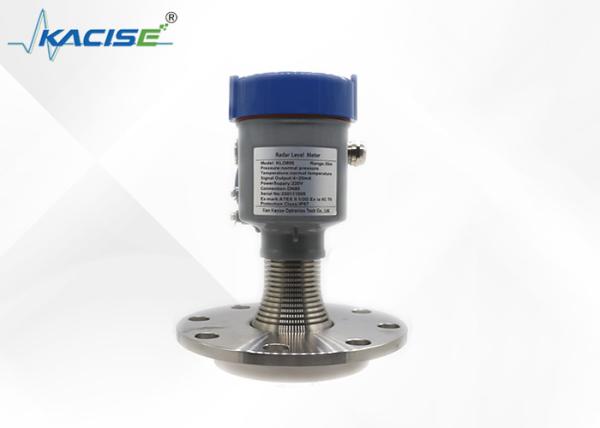

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring
Specifications
Brand Name :
KACISE
Model Number :
KLD800 Series
Certification :
CE
Place of Origin :
china
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measuring range: :
0.05m～10/20/30/60/100m
Protection class :
IP67
Center frequency: :
80GHz
Antenna material: :
PTFE
Description

Radar level gauge with small blind area and high precision is used for liquid level monitoring in chemical industry

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring

Principle

The radar level gauge, which features a small blind area and high precision, has become an essential instrument for liquid level monitoring in the chemical industry. In chemical plants, accurate measurement of liquid levels in various tanks and vessels is crucial for process control and safety. This radar level gauge utilizes advanced microwave technology to emit and receive signals. The small blind area allows it to detect liquid levels even in confined spaces or close to the tank walls with remarkable accuracy. It can provide highly precise readings, minimizing errors and ensuring reliable data for operators. With its non-contact measurement principle, it is not affected by the corrosive or viscous nature of the chemicals, reducing maintenance requirements and enhancing durability. This enables continuous and stable liquid level monitoring, which in turn helps in optimizing chemical production processes, preventing overflows or shortages, and maintaining the overall integrity and efficiency of the chemical plant's operations.

Feature

  • Millimeter wave radar, the measurement accuracy can reach up to ±2mm, and the minimum measurement blind zone is 0.05m.
  • The smaller antenna size satisfies the measurement of more working conditions.
  • A variety of lens antennas, smaller launch angles, more concentrated energy, stronger echo signals, and higher reliability than other radar products under the same industrial and mining conditions.
  • It has stronger penetration and can be used normally in the case of adhesion and condensation.
  • The dynamic signal range is larger, and the measurement of low dielectric constant media is more stable.
  • Multiple measurement modes, radar response in fast measurement mode

Model Introduction

KLD801

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring

Medium: liquid, non-corrosive

Measuring range: 0.05m～10/20/30/60/100m

Process connection: G1½A / 1½NPT thread / flange ≥ DN40

Process temperature: -40～80℃

Process pressure: -0.1～0.3 MPa

Antenna size: 32mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 8°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire / 4...20mA/ RS485 Modbus

KLD802

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring

Medium: non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN80

Process temperature: -40～110℃

Process pressure: -0.1～1.6MPa

Antenna size: 32mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 8°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire / 4...20mA/ RS485 Modbus

KLD803

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring

Medium: strong corrosive liquid, steam, foam

Measuring range: 0.1m～10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～2.5MPa

Antenna size: 34mm lens antenna (according to flange size)

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 8°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

KLD804

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring

Medium: non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN50

Process temperature: -40～130℃

Process pressure: -0.1～1.0MPa

Antenna size: 76mm lens antenna

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

KLD805

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring

Medium: strong corrosive liquid, steam, foam,

high temperature. and high pressure

Measuring range: 0.1m~10/20/30/60/100m

Process connection: flange ≥ DN80

Process temperature: -40～200℃

Process pressure: -0.1～2.5MPa

Antenna size: 76mm lens antenna (according to flange size)

Antenna material: PTFE/overall filling

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum / plastic / stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus

KLD806

IP67 Protection Class Radar Level Gauge High Precision And Small Blind Area For Chemical Industry Liquid Level Monitoring

Medium: solid, storage container, process container,

strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: flange ≥ DN100

Process temperature: -40～110℃

Process pressure: -0.1～0.3MPa

Antenna size: 76mm lens antenna (purge optional)

Antenna material: PTFE

Accuracy: ±1mm

Protection class: IP67

Center frequency: 80GHz

Launch angle: 3°

Power supply: two-wire /DC24V

four-wire /DC12~24V

four-wire /AC220V

Casing: aluminum/plastic/stainless steel

Signal output: two-wire /4...20mA/HART protocol

four-wire 4...20mA/ RS485 Modbus
Production Flow

Packaging & Shipping

Cases

Certificates

Company Information

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services

  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
  • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
FAQ

1. Q: What information need to be provided to choose the suitable radar level sensor?

A: Please provide us: application field, medium, measuring range, output signal, power supply,

temperature, installation method, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ for the KLD800series 80G High Frequency Radar Level Mete?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.
