Industrial Storage Tank Level Monitoring Wireless Remote Water Level Sensor with Alarm Linkage and Data Statistical Analysis
Industrial Storage Tank Level Monitoring Wireless Remote Water Level Sensor with Alarm Linkage and Data Statistical Analysis
Industrial Storage Tank Level Monitoring Wireless Remote Water Level Sensor with Alarm Linkage and Data Statistical Analysis
Industrial Storage Tank Level Monitoring Wireless Remote Water Level Sensor with Alarm Linkage and Data Statistical Analysis
Industrial Storage Tank Level Monitoring Wireless Remote Water Level Sensor with Alarm Linkage and Data Statistical Analysis
Industrial Storage Tank Level Monitoring Wireless Remote Water Level Sensor with Alarm Linkage and Data Statistical Analysis
Specifications
Brand Name :
KACISE
Model Number :
KUS-660
Certification :
CE
Place of Origin :
china
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Measurement Range :
Max.15m
Accuracy :
±0.5%~±1%FS
Communication :
RS485
Casing Material :
PVDF (default) / PVC / PTFE
Temperature Range :
-40℃~85℃
Protection Level :
IP65 (IP68 can be customized).
Description

Wireless remote water level sensor that supports alarm linkage and data statistical analysis of intelligent cloud platform is used for industrial storage tank level monitoring

Introduction

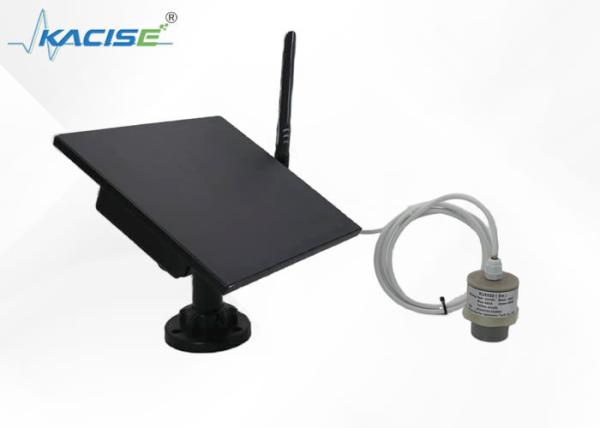

The Wireless Remote Water Level Sensor, which supports alarm linkage and data statistical analysis on an intelligent cloud platform, is an essential tool for industrial storage tank level monitoring. This sensor is designed with high-precision sensing components to accurately measure the liquid level within industrial storage tanks. The wireless remote feature allows for convenient and flexible installation, eliminating the hassle of complex wiring. It can instantly transmit data to the intelligent cloud platform, where comprehensive data statistical analysis can be carried out. When abnormal liquid levels are detected, the alarm linkage function is activated, promptly notifying relevant personnel to take necessary actions. This sensor not only improves the efficiency and safety of industrial tank level monitoring but also provides valuable data support for optimizing production and management processes.

Features

  • Real-time monitoring of level data through networked devices
  • Self-powered, no external power supply required, simple installation, not afraid of rain, convenient for outdoor use.
  • Supports driving multiple sensors at the same time.
  • Supports remote configuration parameters to minimize maintenance costs.
  • Supports various IoT platforms.
  • Large battery capacity, low power consumption, can continue to work on cloudy days.
  • Supports customized communication mode.
  • High sensitivity, high resolution, with temperature compensation function.
  • The sensor part is a PVDF casing, resistant to corrosion environment, can be customized to IP68 protection level, no fear of immersion.

Applications

The KUS660 series is used to indicate and monitor the changes in sensor values at the installation site. It uploads real-time data to the centralized management platform through the built-in wireless transmission module, facilitating intelligent centralized management by users. It is mainly applied in the following industries:

  • Aquaculture
  • Sewage treatment
  • Food industry
  • Industrial storage tanks
  • Water supply systems
  • Mining distance measurement
  • Chemical and energy industries
  • Paper mills

Technical Parameters

Solar Wireless Module
Acquisition Interface RS485
External Output Voltage 5V / 12V @1A
Solar Panel Power 4.2W
Power of the Module ≤3W
Battery Capacity 4Ah(expandable.)
Communication 4G default. WiFi/LoRa can be customized.
Dimensions 175×165×45mm
Protection Level IP65
Temperature Range -20℃~60℃
Ultrasonic Level Sensor
Measurement Range Max.15m
Accuracy ±0.5%~±1%FS
Temperature Range -40℃~85℃
Communication RS485
Output 4 - 20 mA, 0 - 10 V, 0 - 5 V, relay
Power Supply 3.3~30VDC
Protection Level IP65 (IP68 can be customized).
Casing Material PVDF (default) / PVC / PTFE
Resolution 0.1mm
Temperature Compensation Support
Installation Thread NPT1

Note: Please explain any special requirements to the sales staff before making a purchase and clearly indicate them on the order.

Cases

Production Flow

Company Information

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services
  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
Feedback

FAQ

1. Q: What information need to be provided to choose the suitable model Wireless remote water level sensor that supports alarm linkage and data statistical analysis of intelligent cloud platform is used for industrial storage tank level monitoring?

A: Please provide us: measuring range,medium,power supply,output, so we can choose model and quote for you quickly.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

A: Yes, we have the warranty of 12 months.
