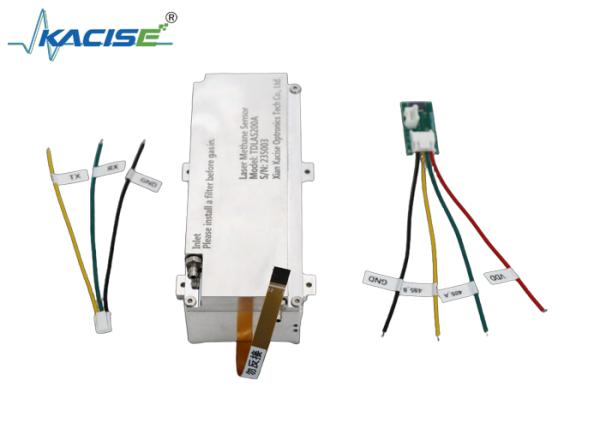

TDLAS200 Auto-Calibrating Laser Methane Sensor

1.Introduction

The KACISE TDLAS200 Auto-Calibrating Laser Methane Sensor is designed for hassle-free and accurate methane detection. It features a built-in reference cell for automatic calibration, ensuring consistent performance over time. With a detection range of 0~5000ppm and a response time of 0.1 seconds, it provides reliable data for safety and environmental monitoring. The sensor is compact and easy to integrate, with an operating temperature range of -20~50℃. KACISE combines advanced TDLAS technology with user-friendly features for superior methane detection.

2.Features

1. High sensitivity, only responds to the target gas
2. Built-in reference cell, can be automatically calibrated
3. Easy to integrate, digital interface directly outputs status and concentration

3.Measuring Principle

"Methane molecules absorb light of a specific wavelength" --Molecular absorption spectrum
"The amount of light absorbed by a transparent medium (methane gas mass) is proportional to the thickness and concentration of the gas mass" --Beer-Lambert's law
According to the above physical principles, a beam of light of a specific wavelength can be used to penetrate the leaking methane gas mass. According to the degree of weakening of the beam, the concentration of methane in the gas mass can be measured, and it only responds to methane (unique selectivity).
Using a detection cell with multiple reflections and allowing the laser to repeatedly pass through the gas being measured can multiply the detection sensitivity.

4.Technical Parameters

*1 Please ensure that the power input voltage of the module is not less than 5V

*2 Pump selection recommendation <500ml/min

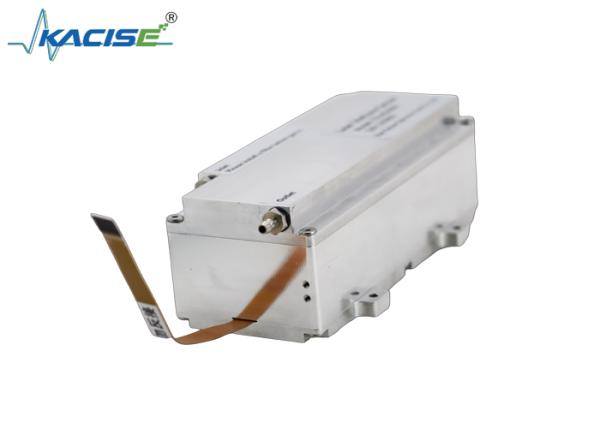

5.Dimensions of the detection module

Dimensions of the detection module host: 115×59×38mm (excluding cables and gas connectors)
