Specifications
Brand Name :
KACISE
Model Number :
LSBM-100
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Description :
Long Measuring Range 100m
measuring range :
0.03... 90% reflectivity in the 100m room
frequency :
1...20Hz
accuracy :
±3mm
Size / Dimension :
63x40x18mm
weight :
13g
Description

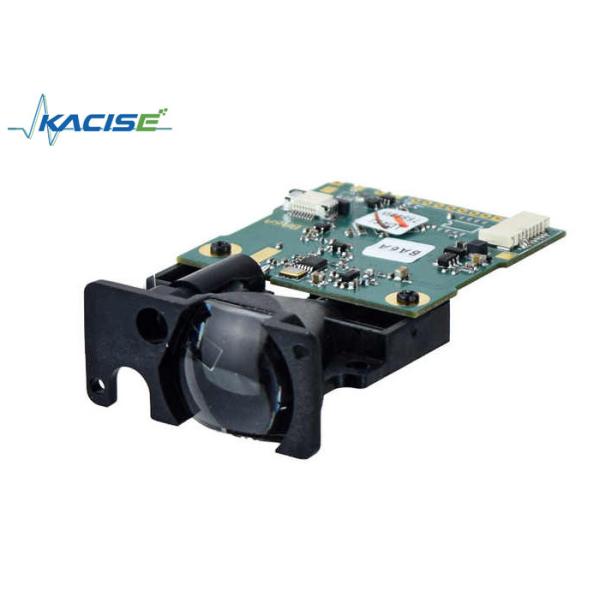

High - Precision Laser Ranging Module

1.Overview

KACISE's LSBM-100 High - Precision Laser Ranging Module is a top - notch product. It uses advanced ITOF technology for fast response and high - accuracy ranging. With a measuring accuracy of ±3mm and a data update frequency up to 20Hz, it can measure up to 100 meters. Its compact 63×40×18mm size and 13g weight, along with UART digital interface, make system integration easy. Suitable for industrial automation, robot navigation, etc., it has a long laser life over 10,000 h, operates in - 20~60℃, and offers a great performance - to - cost ratio.High - Precision Laser Ranging Module，Support secondary development, easy to integrate

2.Product Features

  • Advanced Technology
  • High Precision
  • High Data Update Frequency
  • Large Measuring Range
  • Compact Design
  • Convenient Interface
  • Long Laser Life
  • Wide Operating Conditions
  • Good Performance/Cost Ratio

3.Technical Parameters

Measurement 0.03... 90% reflectivity in the 100m room
Duplicate accuracy 2mm
Absolute accuracy ±3mm
Measuring rate 3...20Hz
Measure the target object natural target
Laser life Over 10,000 h
light source 635nm red visible laser
Laser safety level 2
Typical light spot size 10m: 5x3mm; 25m: 10x6mm; 50m: 15x10mm 100m: 30x20mm
Interface UART
Working voltage DC2.5…3.3 V
Working temperature -20~60℃
power dissipation ＜0.27W
size 63×40×18mm
weight 13g
