LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser
LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser
LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser
LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser
LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser
LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser
Specifications
Brand Name :
KACISE
Model Number :
LSBM-60
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Output :
UART
Detection Range :
60m
Accuracy :
±3mm
Illuminant :
635nm red visible laser
Power dissipation :
<0.27W
Working temperature :
-20~60℃
Description

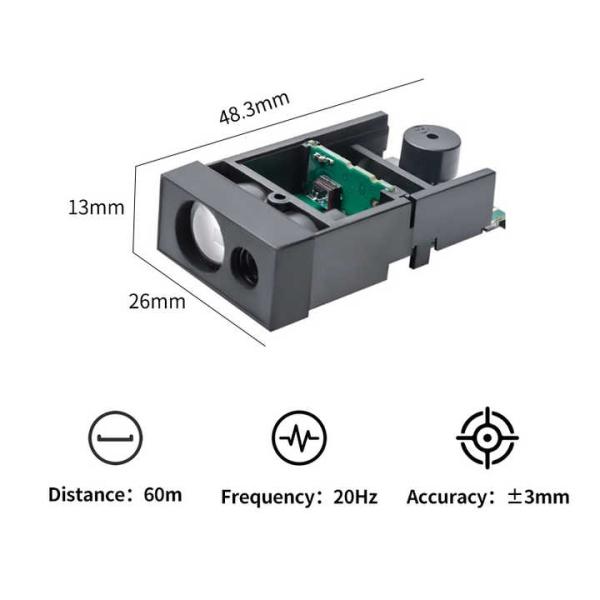

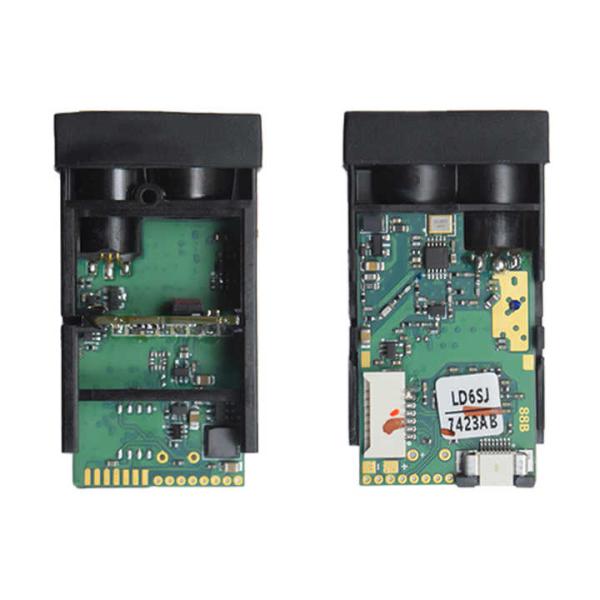

LSBM-60 High - Precision ITOF Laser Ranging Module

1.Overview

KACISE's LSBM-60 High - Precision ITOF Laser Ranging Module is a top - tier product. Leveraging advanced ITOF technology, it provides rapid response and pinpoint - accurate ranging. With an accuracy of ±3mm and a 2 - mm repeatability precision, it ensures reliable data. It can measure up to 60 meters, updating data at 3 - 20Hz. Weighing just 9g and featuring a UART interface, it's easy to integrate into systems. Operating from - 20 to 60℃ and consuming <0.27W, it suits industrial automation, robot navigation, and more, offering a great performance - price ratio.LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser

2.Product Features

  • Advanced ITOF Technology
  • High Precision Ranging
  • Good Data Update Rate
  • Sufficient Measuring Range
  • Compact Design
  • Convenient Interface
  • Energy - Efficient
  • Wide Operating Temperature
  • Safe Light Source
  • High Performance - to - Price Ratio

3.Wide Operating Conditions

Mounting Type Manual Installation
Description Laser Distance Measuring Sensor 60m
Model Number LSBM-60
Type Distance Sensor
Series Laser Distance Module 60m
Features Small Size, High Precision, High Stability
Manufacturing Date Code 202501
Brand Name Siman
Theory ITOF
Output UART
Description LSBM-60
Detection Range 60m
Frequency 3-20Hz
Repeatability precision 2mm
Accuracy ±3mm
Illuminant 635nm red visible laser
Service voltage DC3.3V
Power dissipation <0.27W
Weight 9g
Working temperature -20~60℃
Interface UART

LSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laserLSBM-60 High - Precision ITOF Laser Ranging Module,Illuminant 635nm red visible laser
