KFBH-60 Fixed Gas Detector WIth Display For LPG Station
KFBH-60 Fixed Gas Detector WIth Display For LPG Station
KFBH-60 Fixed Gas Detector WIth Display For LPG Station
KFBH-60 Fixed Gas Detector WIth Display For LPG Station
KFBH-60 Fixed Gas Detector WIth Display For LPG Station
KFBH-60 Fixed Gas Detector WIth Display For LPG Station
Specifications
Brand Name :
KACISE
Model Number :
KFBH-60
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Explosion proof grade :
Ex db IIC T6 Gb
Response time :
30S
Power supply :
DC24V±10%
Working temperature :
-20℃～50℃
Output current :
4-20mA
Working humidity :
0-95%RH
Description

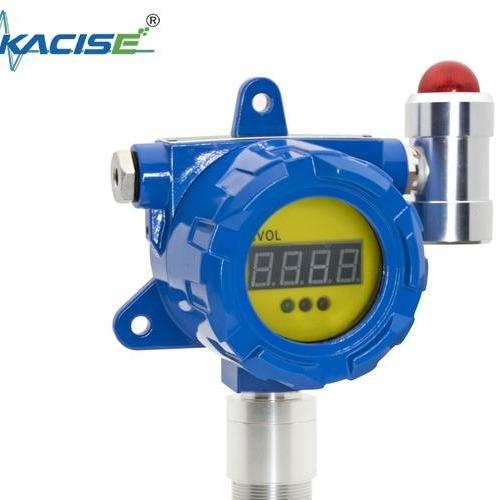

KFBH-60 Fixed Gas Detector WIth Display

Introduction

KFBH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.

Technical Parameters

Product type KFBH-60 fixed gas detector/transmitter
Explosion proof grade Ex db IIC T6 Gb
Response time 30S
Power supply DC24V±10%
Working temperature -20℃～50℃
Output current 4-20mA
Working humidity 0-95%RH
Contact output Free contact output, max power 1kW
Single input 4~20mA and RS485
Installation method Wall-mounted
Shell material Aluminum
Dimensions 190x150x95mm(L×W×H)

Detailed Images

KFBH-60 Fixed Gas Detector WIth Display For LPG Station

KFBH-60 Fixed Gas Detector WIth Display For LPG Station

Specifications

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
