KLBH90E Portable Gas Leak Detector for Oil and Gas Applications
KLBH90E Portable Gas Leak Detector for Oil and Gas Applications
KLBH90E Portable Gas Leak Detector for Oil and Gas Applications
KLBH90E Portable Gas Leak Detector for Oil and Gas Applications
KLBH90E Portable Gas Leak Detector for Oil and Gas Applications
KLBH90E Portable Gas Leak Detector for Oil and Gas Applications
Specifications
Brand Name :
KACISE
Model Number :
KLBH90E
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Accuracy :
≦±5% F.S.
Response Time :
≦30s
Sensor :
-20℃～50℃, ＜95%RH (no dew)
Working environment :
DC3.7V Li-on battery, 1800mAh
Alarm Type :
6h~8h
Backlight :
≧8h continuously (without alarming)
Description

KLBH90E Portable Gas Leak Detector

Introduction

KLBH90E portable gas detector is a new type of gas leak detector that adopts LSI technique and meets international smart technology standards. With imported high quality semi-conductor sensor and embedded microcontroller, it detects gas leakage with high sensitivity and strong adaptive ability. Being waterproof, dustproof, explosion-proof, and easy to use with high reliability, the detector is widely used in oil, coal, municipal construction, chemical engineering, environmental protection, metallurgy, refining, gas transmission and distribution, biochemistry, agriculture, pharmaceutical industries. We provide gas detector OEM/ODM service.

Product Features

*Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.

*32-bit built-in MCU, high reliability and self-adaptation ability.

*Full functions, easy operation.

*Large LCD, more intuitionistic, abundant and clear indication.

*Compact design, easy carrying.

*High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

Technical Parameters

Target gas Combustible gas
Range 0-10,000ppm (μmol/mol)
Sampling method Natural diffusion
Alarm point Default: Low alarm: 500ppm; High alarm: 2000ppm.
Support personalized setting.
Alarm types Audible buzzer alarm; Visual LED light alarm; Vibration alarm
Warm-up time 60S
Response time ＜30s
Sensor type Imported FIGARO sensor
Sensor life 2 years
Power supply Rechargeable lithium battery, DC3.7V 1800mAH
Charging time 6h-8h
Continuous working hours No less than 8 hours (normal working environment)
Working condition Temperature: -10～40℃ Humidity: ≤95% RH with no condensation.
Storage condition Temperature: -20～50℃ Humidity: ≤85% RH, avoid caustic gases or substances.
Weight Approx. 300g (excluding accessories)
Dimension Approx. 210mm(L)×66mm(W)×30mm(H)
Packing list Detector, Carrying case, Charger, USB cable, Warranty card, Thank-you card.

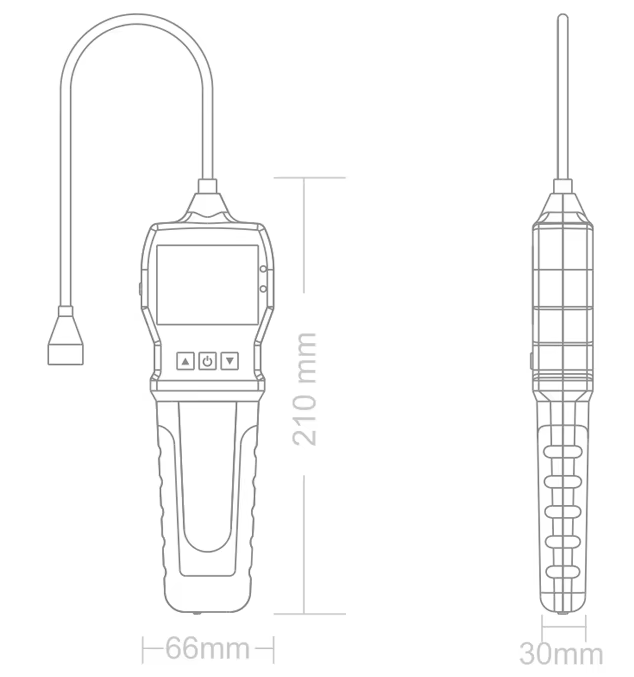

Dimension

KLBH90E Portable Gas Leak Detector for Oil and Gas Applications

KLBH90E Portable Gas Leak Detector for Oil and Gas Applications
