KMBH-4A Portable Multi Gas Detector Large LCD Accuracy ≦±5% F.S.
KMBH-4A Portable Multi Gas Detector Large LCD Accuracy ≦±5% F.S.
KMBH-4A Portable Multi Gas Detector Large LCD Accuracy ≦±5% F.S.
KMBH-4A Portable Multi Gas Detector Large LCD Accuracy ≦±5% F.S.
KMBH-4A Portable Multi Gas Detector Large LCD Accuracy ≦±5% F.S.
KMBH-4A Portable Multi Gas Detector Large LCD Accuracy ≦±5% F.S.
Specifications
Brand Name :
KACISE
Model Number :
KMBH-4A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Accuracy :
≦±5% F.S.
Response Time :
≦30s
Sensor :
-20℃～50℃, ＜95%RH (no dew)
Working environment :
DC3.7V Li-on battery, 1800mAh
Alarm Type :
6h~8h
Power Source :
2 years
Description

KMBH-4A Portable Multi Gas Detector

Introduction

KMBH-4A portable multi-gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers' life and avoid damage on the relevant equipments.

Detailed Images

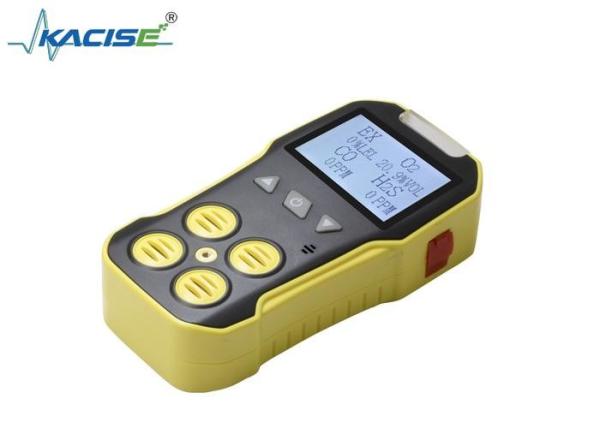

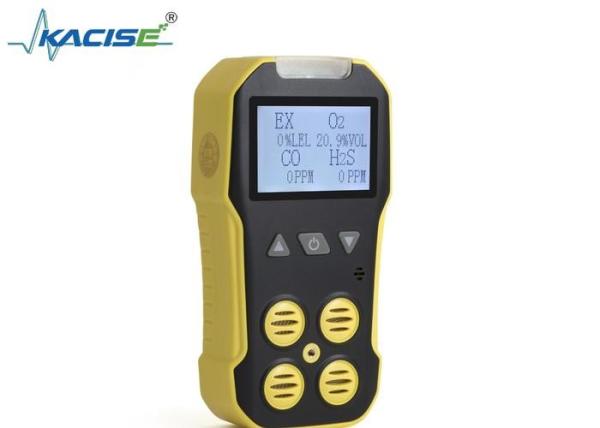

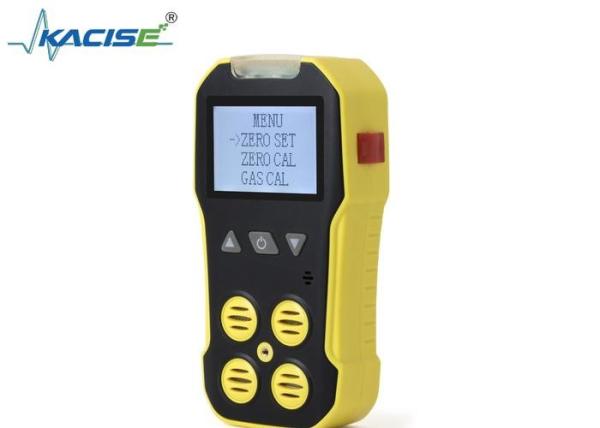

KMBH-4A Portable Multi Gas Detector Large LCD Accuracy ≦±5% F.S.

Product Features

*Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.

*32-bit built-in MCU, high reliability and self-adaptation ability.

*Full functions, easy operation.

*Large LCD, more intuitionistic, abundant and clear indication.

*Compact design, easy carrying.

*High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

Technical Parameters

Accuracy ≦±5% F.S.
Response Time ≦30s
Indication LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage.
Sensor -20℃～50℃, ＜95%RH (no dew)
Working environment DC3.7V Li-on battery, 1800mAh
Alarm Type 6h~8h
Backlight ≧8h continuously (without alarming)
Power Source 2 years
Charging time Appr. 400g (with battery)
Working time 130mm×67mm×30mm(L × W × H)
Gas Sensor Life Suit case packaging, 1pc; Charger, 1pc; Calibration cap, 1pc; Communications cable, 1pc; User manual, 1pc.

Specifications

Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
