Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S
Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S
Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S
Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S
Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S
Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S
Specifications
Brand Name :
KACISE
Model Number :
KSBH-90A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Accuracy                                    :
≦ 5% F.S.
Response time :
T＜30s
Humidity :
＜95%RH non-condensing
Operating voltage :
DC3.7V Li battery 1500mAh
Working time :
≧8h continuously
Charging time :
4h～6h
Description

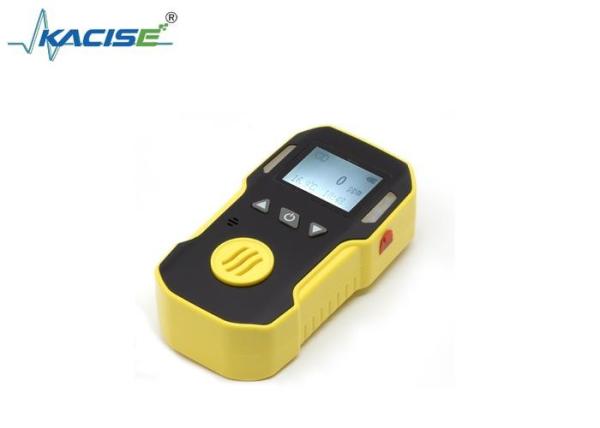

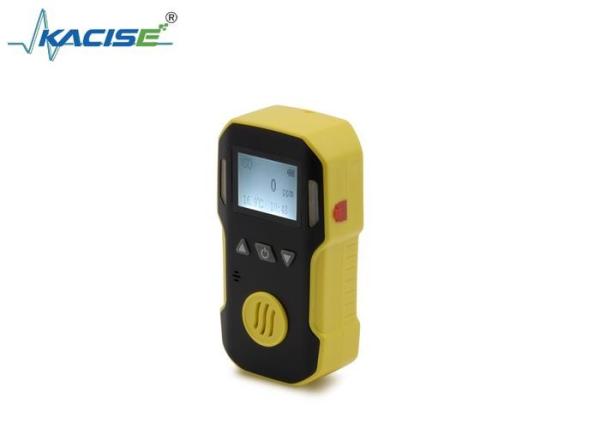

KSBH-90A Single Gas Detector
Introduction
KSBH-90A portable single gas detector can make continuous detection to combustible and toxic gases. It is suitable for combustible and toxic gas leakage detection in underground pipe or mines, and keeps the workers safe, prevents the facilities from being destroyed.The detector, adopting excellent-quality sensor, makes detection in the way of natural diffusion. It has good sensitivity and reproducibility. The detector adopts embedded MCU controller, easy to operate.

Technical Parameters

Accuracy≦ 5% F.S.
Response timeT＜30s
IndicationLCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration
Operating EnvironmentOperating temperature -40℃～70℃ (for combustible gas)
Operating temperature: -20℃～50℃ (for toxic gas)
Humidity＜95%RH non-condensing
Operating voltageDC3.7V Li battery 1500mAh
Working time≧8h continuously
Charging time4h～6h
Sensor life2 years
Weightabout 130g (including battery but without accessories)
Explosion proofEx ib llB T3 Gb
Dimension100mm×60mm×30mm

Product Features
*Advanced MCU control with low power consumption;
*Adjustable low and high alarm level;
*Adjustable calibrating level;
*High concentration protection for combustible gas;
*Self test for the combustible gas sensor;
*Low battery indication;
*Self-adjustment function
*Visual and audible alarm with vibration;
*Advanced self-examination and self-renovation function
*Password management to avoid wrong operation;
*Explosive proof housing.

Application
Operating Voltage DC3.7V Li Battery 1500mAh KSBH-90A Single Gas Detector Accuracy ≦ 5% F.S

Specifications

ModelRangeResolutionL-alarmH-alarm
O20-30%vol0.1%vol19.5%vol23.5%vol
H2S0-100ppm0.1ppm10ppm20ppm
C2H4O0-100ppm1ppm10ppm20ppm
HC0-2%vol0.01%vol00
NH30-100ppm1ppm10ppm20ppm
O30-20ppm0.1ppm5ppm10ppm
PH30-20ppm0.1ppm5ppm10ppm
NO0-250ppm1ppm50ppm150ppm
HCN0-50ppm0.1ppm5ppm10ppm
HF0-10ppm0.1ppm3ppm5ppm
