Specifications
Brand Name :
KACISE
Model Number :
KLS109
Certification :
CE
Place of Origin :
china
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Accuracy :
±1mm
Average current :
100mA@10V
Working temperature :
20~60℃
Power consumption :
＜1.5W
Measurement :
0.05…30/60/100/150/200m
Shell material :
aluminum
Description

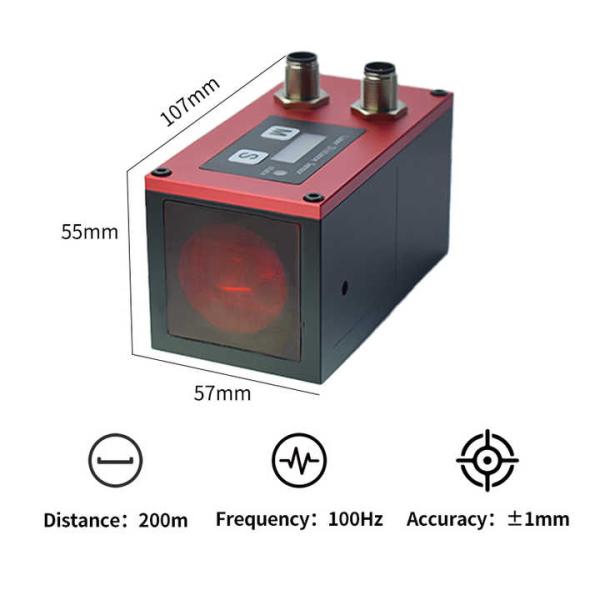

KLS109 High - Precision Industrial Laser Ranging Sensor

1.Overview

The KLS109 is a state - of - the - art industrial - grade laser ranging sensor. Developed by sensing technology, it utilizes advanced ITOF technology. With a measurement frequency up to 100Hz and an accuracy of ±1mm over a maximum range of 200m, it meets the demanding requirements of high - speed and high - precision industrial measurements. It supports multiple industrial communication interfaces like RS485, SSI, Ethernet, CANBUS, and 4 - 20mA analog output, enabling easy integration. The built - in high - definition OLED display shows real - time distance, and button - based parameter settings make it user - friendly. Its IP67 protection grade ensures excellent dustproof and waterproof performance, allowing stable operation in harsh environments. Ideal for stacking machines, warehousing logistics, and automated production lines, it offers accurate distance measurement and location control for industrial automation.

KLS109 High - Precision Industrial Laser Ranging Sensor，Accuracy ±1mm

2. Product Features

  • High - precision measurement with ±1mm accuracy.
  • High measurement frequency of up to 100Hz.
  • Multiple industrial communication interfaces for seamless integration.
  • IP67 protection grade for dustproof and waterproof performance.
  • Real - time display on a high - definition OLED and easy parameter settings.

3.Technical Specifications

Specifications
Measurement 0.05…30/60/100/150/200m
Frequency 0.1mm
Duplicate accuracy 0.5mm
Accuracy ±1mm
Measuring frequency 1…30…100Hz
Response time Min 10ms
Exercise target speed ＜5m/s
Measure the target object Natural surface or dedicated reflex board
Environmental light effect Anti -outdoor sunlight 1000klux
Light source 650 ~ 660nm,<1mW,II class
Light spot size diameter 6mm@10m；30mm@50m:60mm@100m
Power supply voltage DC7~26V
Average current 100mA@10V
Power consumption ＜1.5W
Shell material aluminum
Dust -proof lens material PC
Specification 57*57*108mm
Shell protection level IP67
weight 445g
Working temperature 20~60℃
Laser life 100,000h or more
Install With installation brackets, can be equipped with anti -light board

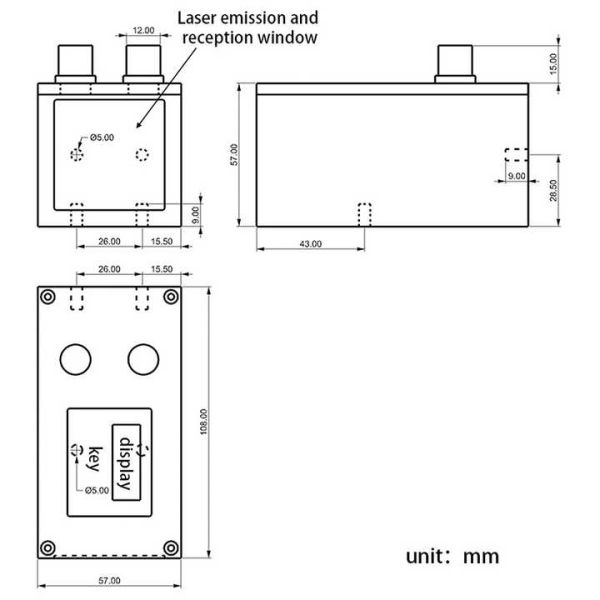

4.Dimensions

KLS109 High - Precision Industrial Laser Ranging Sensor，Accuracy ±1mmKLS109 High - Precision Industrial Laser Ranging Sensor，Accuracy ±1mm
