SBWZ-PT100 Integrated Temperature Transmitter Module
SBWZ-PT100 Integrated Temperature Transmitter Module
Specifications
Brand Name :
KACISE
Model Number :
SBWZ-PT100
Certification :
CE
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Piece/Pieces per Week negotiable
Delivery Time :
5-8 work days
Packaging Details :
each unit has individual box and all boxes are packed in standard packages or customers requests available
Working Power Supply :
24V
Sensor :
Various thermal resistances
Measurement Accuracy :
0.002
Operating and Storage Temperature :
-40℃ - 120℃
Excitation Current :
0.2mA
Housing Material :
PA66
Description

SBWZ-PT100 Integrated Temperature Transmitter Module

Introduction

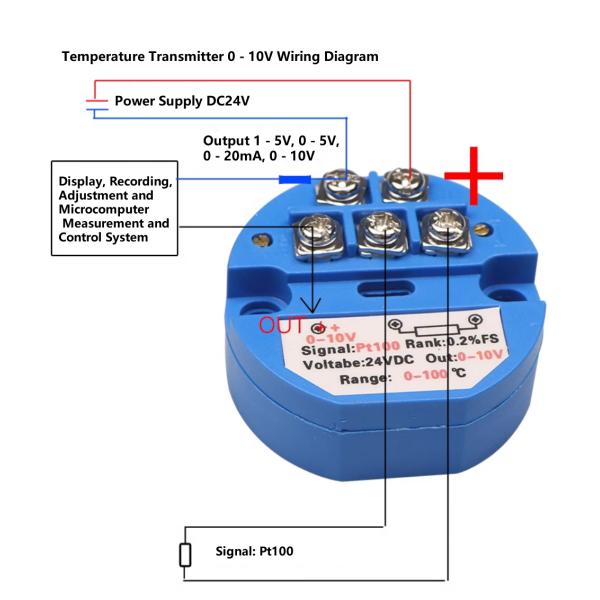

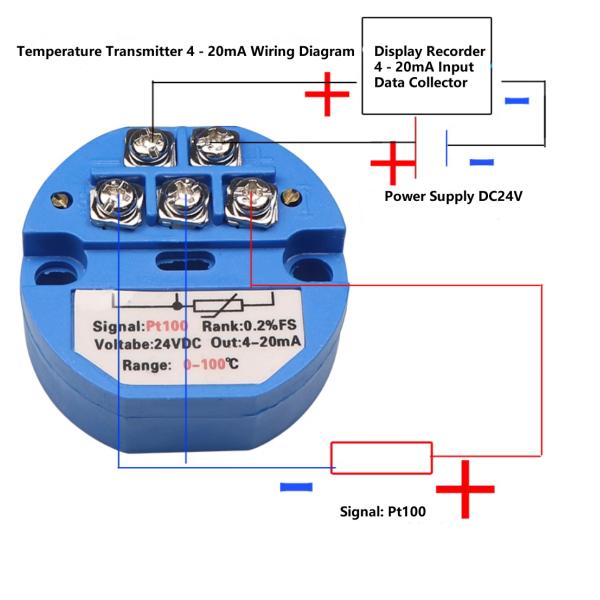

The SBWZ-PT100 integrated temperature transmitter module is a temperature transmitter with a PT100 thermal resistance, and it outputs a signal of 4 - 20mA.

Product Technical Parameters

Working Power Supply: 24V

Sensor: Various thermal resistances

Measurement Accuracy: 0.2%

Operating and Storage Temperature: -40℃ - 120℃

Excitation Current: 0.2mA

Housing Material: PA66

Load: 250Ω or 500Ω

Mounting Screw: M3*5

Temperature Coefficient: ≤25ppM/CF.S

Working Temperature: -30℃ - 80℃

Output: Two-wire system, 4 - 20mA
