Electrical fire monitoring system

Introduction

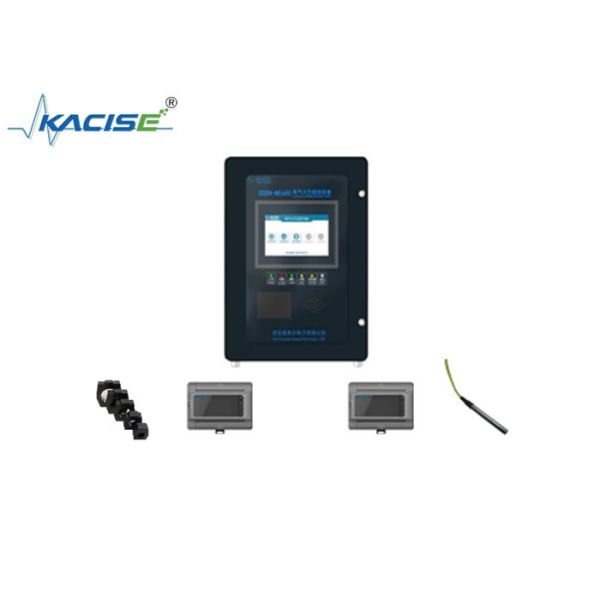

The XSS-FS series fire equipment power supply monitoring system adopts non-polarity Powerbusi two-wire communication mode, with low cost, easy wiring, matrix display, host protection level P65, effectively adapt to harsh environments, and comply with GB28184-2011 standards. The system is mainly composed of fire equipment power supply monitoring status monitor and different types of voltage, voltage/current sensors and current transformers of various specifications.

The monitor does not need to be equipped with an extension, has 4 circuits, 128 points per circuit, and a total of 512 points. A single host can meet the use of most projects. A single host can be monitored by multiple total monitors at the same time, or multiple monitors can be networked to form a monitoring system, which greatly meets the needs of super large projects. It can quickly reflect the power supply status of the monitored equipment at the first time and display it on the graphic display device, thereby effectively avoiding the situation where the fire equipment cannot be used normally due to power supply failure when a fire occurs. Maximize the safety and reliability of the fire linkage system.

Features

• Adopting non-polar two-line Powerbus communication method
• Developing software based on the Linux platform makes the system more stable and networking more convenient
• The host adopts 7-inch LCD touch display
• The host has 4 loops, each loop can carry 128 detectors, and a single host can have up to 512 points.
• The detector has different combinations of voltage and current detection
• The host obtains protection level 1P65 certification

Application

Shopping malls, airports, hospitals, hotels, pipe galleries, factories, subways, etc.
