PTFE Molding Powder SF-10GR
PTFE Molding Powder SF-10GR
Specifications
Brand Name :
Sinof
Model Number :
SF-10GR
Place of Origin :
China
Description

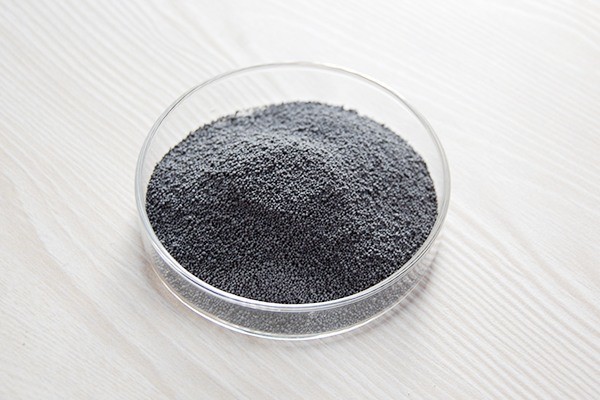

PTFE Molding Powder (SF-10GR)

Composition: 90% virgin PTFE, 10%±1% graphite powder

Technical Properties

Mechanical Properties Units Test Method Free Flow NFF
Specific Gravity g/cm³ ASTM D4894 2.15±0.05 2.15±0.05
Tensile strength MPa ASTM D4894 ≥18 ≥20
Elongation at break % ASTM D4894 ≥200 ≥230
Bulk Density g/L ASTM D4894 700±50 /
Hardness Shore D NEEDLE 58-53 58-53
Diametric Shrinkage % INTERNAL 2.0±0.5 2.0±0.5
Flow Sec/120g INTERNAL ≤5 /
Average Particle Size μm ASTM D4894 550±100 /
Recommended Molding Pressure 300-350kg/cm2
Max Sintering Temp. 370-375℃

Attention:

This product is a fluoroplastic material. Normal precautions observed with fluoroplastics should be followed.

Packaging, Storage and Transportation:

1. The product is packed in two layers of plastic bags in a hard bucket with a net content of 25kg per barrel.

2. The products shall be transported as non-dangerous chemical. During transportation, prevent from humidity, intense vibration and package damage.

3. Products should be stored in a clean, cool and dry warehouse to prevent the mixing of dust, moisture and other impurities.
