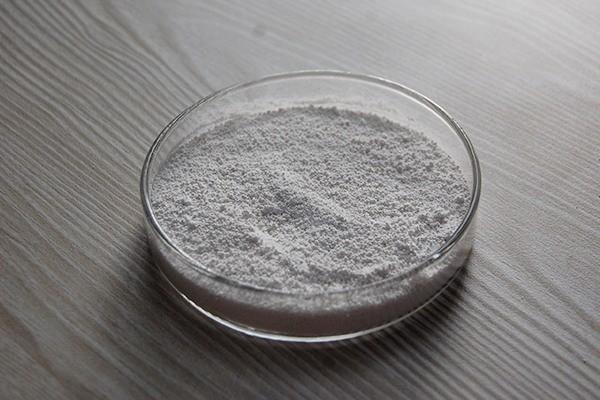

80% PTFE Molding Powder SF-20EK With 20%±1% Ekonol
80% PTFE Molding Powder SF-20EK With 20%±1% Ekonol
Specifications
Brand Name :
Sinof
Model Number :
SF-20EK
Place of Origin :
China
Description

PTFE Molding Powder (SF-20EK)

Composition: 80% virgin PTFE, 20%±1% ekonol

Technical Properties

Mechanical Properties Units Test Method Non Free Flow
Specific Gravity g/cm³ ASTM D4894 1.95±0.05
Tensile strength MPa ASTM D4894 ≥12
Elongation at break % ASTM D4894 ≥150
Bulk Density g/L ASTM D4894 /
Hardness Shore D NEEDLE 60-55
Diametric Shrinkage % INTERNAL 2.0±0.5
Flow Sec/120g INTERNAL /
Average Particle Size μm ASTM D4894 /
Recommended Molding Pressure 350-400kg/cm2
Max Sintering Temp. 370-375℃

Attention:

This product is a fluoroplastic material. Normal precautions observed with fluoroplastics should be followed.

Packaging, Storage and Transportation:

1. The product is packed in two layers of plastic bags in a hard bucket with a net content of 25kg per barrel.

2. The products shall be transported as non-dangerous chemical. During transportation, prevent from humidity, intense vibration and package damage.

3. Products should be stored in a clean, cool and dry warehouse to prevent the mixing of dust, moisture and other impurities.
