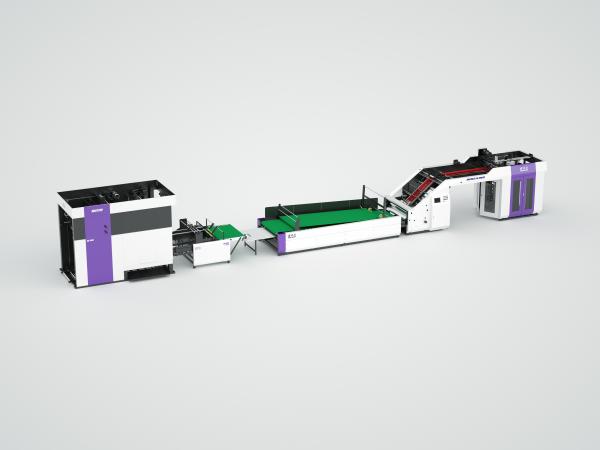

1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour
1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour
1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour
1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour
1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour
1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour
1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour
1650*1400mm Flute Lamination Pasting Machine 5000 Sheets / Hour
Specifications
Brand Name :
DINGXING/DINGYI
Model Number :
DW-1650
Certification :
ISO/CE
Place of Origin :
China
MOQ :
1
Price :
USD 20000-60000/SET
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5 SET/MONTH
Delivery Time :
70 DAYS
Packaging Details :
Meteorological anti-rust film and steel bottom bracket
Max. Speed :
5000 Piece/Hour
Top Sheet GSM :
120-600
Bottom Sheet GSM :
300-800
Lamination Accuracy :
±1.5mm
Description

DW-1650 Two Flute One Sheet Laminator

Model

Modelo

 DW-1650

Max. SheetSize(WxL)

Tamaño máximo (WxL)

1650x1400mm(65x55’)

Min. Sheet Size(WxL)

Tamaño mínimo de tabla

 450x450mm(18x18’)

Thickness of litho

Espesor de Litho

 150~800gsm

Thickness of middle

Espesor de medio

 300-800gsm(single flute)

Thickness of substrate

Espesor del sustrato

300~800gsm (Up to 10mm Thick)

A~N Single Layer/ 3/5Layers Corrugated Boards, Grey Paperboards and Cardboards

Accuracy

Precisión de laminado

 ±2mm(Subject to Paper Quality and Specifications)

Speed

velocidad

 0 -5000sheets/hour(Subject to Paper Quality and Specifications)

Power

Longitud total

 AC~380V(30HP)

Total weight

Peso todo

 9800kg

Main Features

  • Automatic 5Ply Flute Laminator is fortified model adopting two bottom feeders and one top feeder, especially suitable for laminating two single flutes and one top cardboard into 5 ply or two single flutes into corrugated boards, also acting as a regular flute laminator to transfer thicker and large-sized boards smoothly and freely, operator friendly.

  • Automatic 5Ply Flute Laminator is applied in broad scope of papers, substrate papers from cardboards, grey paperboards, single layer/ three/five layers corrugated boards which can be laminated easily and accurately, and total boards from 2 bottom feeders are maximum 8 layers
