Specifications
Brand Name :
Lead Laser
Model Number :
LD-EG-602B-S
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 set
Price :
Price can be negotiated
Payment Terms :
L/C. T/T, Western Union
Supply Ability :
600 SET per year
Delivery Time :
20 working days
Packaging Details :
standard wooden case as 750 ×780×900mm
Laser Wavelength :
532nm
Laser Source :
Diode Pumped
Engraving Speed :
2000Dots/Second
Engraved Solution :
1200dpi
Warranty :
2 Years
Technical Support :
Whole Life
Engraving Range :
300x200x150mm
Power Consumption :
1KW
Description

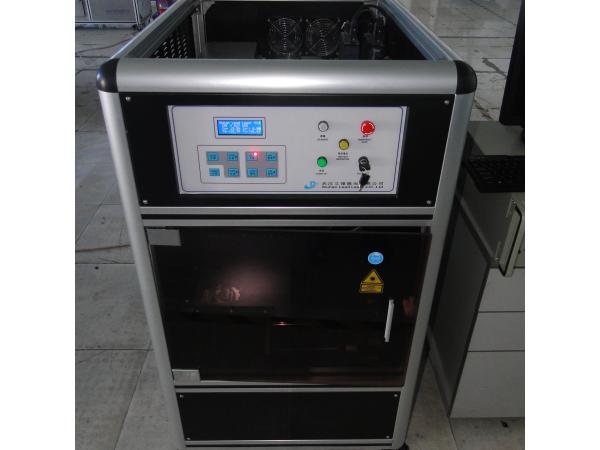

LD-EG-602B-S Medium Size High Speed Scanner 3D Laser Glass Engraving Machine

Function:

LD-EG-602B-S Rapid Scanner Laser Subsurface Engraving Machine is used to engrave 2D, 3D images or individual figures in crystal and glass products. It could work for a large scale production of 2D, 3D animals & plants, architectures, models such as car, boat, airplane etc, and 3D scene show.

Advantage:

LD-EG-602B-S Rapid Scanner Laser Subsurface Engraving Machine adopts the advanced galvanometer scanner technology together with 2KHz diode-pumped YAG frequency doubling laser which is faster, the laser point is more thin and bright, the image also will be more elaborate and lively. The key parts of the apparatus mainly come from Germany and the USA. It is more reasonable and steady for long-term production. This machine has the software developed independently connected with 3D Camera what can fine engrave 3D portrait. The smaller size and lighter weight can be carried and fixed easily, and the protective package can keep the machine well. This machine is suitable for individual production and batch fast process. Just one machine could be satisfied with capacity for both storefronts network distribution and electric-business distribution.

Technique Specification:

Model LD-EG-602B-S
Laser medium YAG
Laser wavelength 532nm (green laser)
Max. pulse energy 1mJ(0.5mJ)
Max. laser power 2W
Frequency

2000 Hz
Pump source Diode/USA

Pump source lifetime
useful life

 20000hours

Original place of
Laser medium

 German

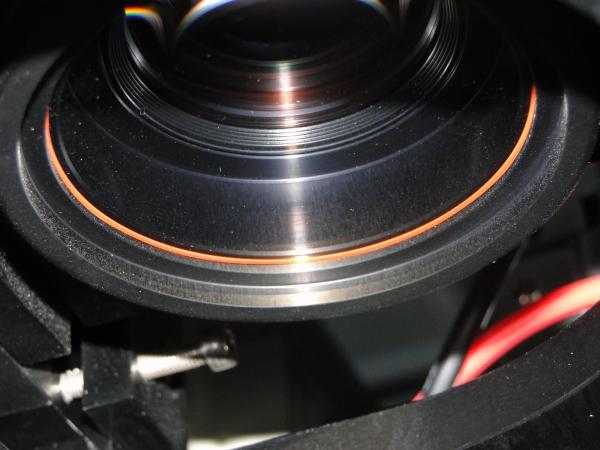

F-theta lens(mm)

German
F:160
Laser heads 1
Resolution (DPI) 800-1200

Engraving speed
(dots/min)

 100,000-120,000/min
Working way 1 scanner
Drive System servo motor ( Japan)

Engraving range(mm)

300*200*150
F-theta lens 160
Engraving time

558 crystal(400,000points)
About 3.5 min.

321keychain(140,000ponits)
About 1.5 min.
Repeated location accuracy 5μm
Continuous working time >12hours
Power consumption 1KW
Cooling way Air Cooling
Power supply 220V or 110V±10% 50Hz or 60Hz
Warranty 2 years

Machine Dimension (mm)

 750 ×650×1150
Total Weight (kg) 200( machine 160KG with package, Camera 40KG with package)
Computer CPU:P4 2.8G, Memory 4G,Harddisk 400G,17”LCD
Software Laser image, Laser control (The software is developed by lead laser)
Circumstance temperature 15-30℃
Relative humidity <75%
Training time 3 days
Laser class laser 1
Laser class system 1
Remark This quotation included 1 set engraving system, one operating computer for machine, operating software installed in the computer, more than 2000pcs 2D/3D images data installed, free training at our side, whole life maintenance and technological support, manual and spare parts.

After-Sales Service

1. Machine will be carefully test and adjust before package,

most of the parameters will be set so customer can use the machine directly without adjustment.

2. Training in factory for free.

3. whole machine warranty for one year.
