Bottle Glass Engraving Machine , High Stability Glass Laser Printing Machine
Bottle Glass Engraving Machine , High Stability Glass Laser Printing Machine
Bottle Glass Engraving Machine , High Stability Glass Laser Printing Machine
Bottle Glass Engraving Machine , High Stability Glass Laser Printing Machine
Bottle Glass Engraving Machine , High Stability Glass Laser Printing Machine
Bottle Glass Engraving Machine , High Stability Glass Laser Printing Machine
Specifications
Brand Name :
Lead Laser
Model Number :
LD-FEM-G3010
Certification :
CE, FDA, ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Price can be negotiated
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Sets per year
Delivery Time :
20 working days
Packaging Details :
Standard exported wooden case at 1250×750 ×1450 mm
Laser Wavelength :
532nm
Laser Source :
Diode Module
Marking Range :
100x100mm
Marking Speed :
8m/Minute
Marking Depth :
0.1mm
Applied Material :
Glass Bottle and Materials
Warranty :
2 Years
Maintenance :
Free
Description

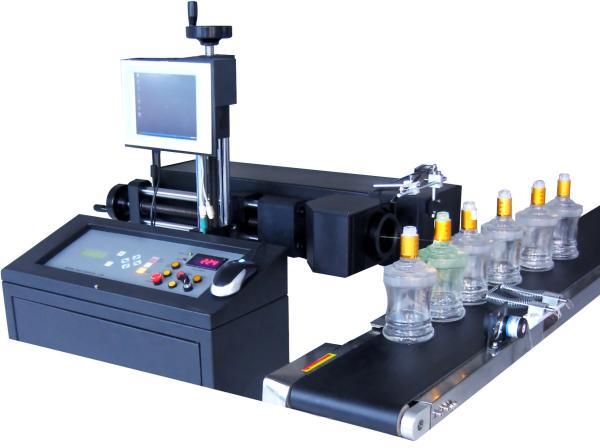

10W Glass Bottle and Package Material Applied Flying Green Laser Matking Machine

Description


Flying Green Fiber laser marking machine is the most acknowledged innovation technology among the industrial laser marking, Its flexibility, less support, and no prerequisite of consumables. Dissimilar to Co2. It utilizes optical fiber doped with uncommon earth component as a laser source and can check with considerably more force relatively. It gives the best modern answer for item distinguishing proof and traceability. At the point when 20w fiber laser marking machine is utilized as metal checking machine, it is utilized to check standardized identifications, serial numbers, QR codes, individual subtle elements, designs and so on materials like auto segments, steel marks, and so forth.

Features:

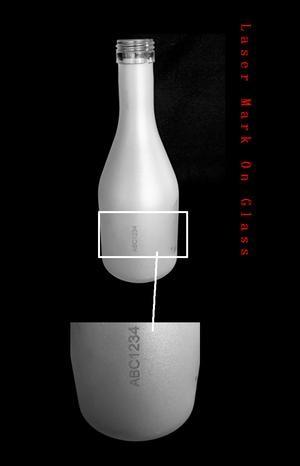

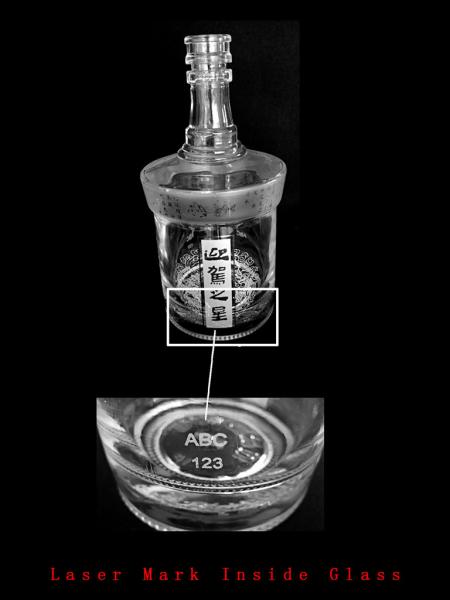

1. Used for subsurface engraving the code in glass wine bottle, cosmetic bottle, chemical product bottle, medical bottle and other glass packing materials, etc., also it can surface marking code on bottle lid, label, packing box and other metal or nonmetal materials, etc.

2. On-line full automatic marking code at 2000-4000 bottles each hour, working for 20000 hours without consumable.


fiber Laser marking Features
1. High electro-optic conversion efficiency
2. Low power consumption, stability laser output
3. High quality beam, consumable free,small machine dimension
4. Smaller output laser beam,finer marking line.suitable high precision marking

Technical data:

Max. Laser Average Power 10W
Laser Wavelength 532nm
Quality of The Laser (M2) ＜1.5
Repeat Frequency ≤50kHz
Standard Subsurface Engraving Range 100x100mm (Static)
Engraving Depth ≤0.1mm
Engraving Speed 8m/min @ 3 character height 3mm simplex
Min. Character Size 2mm
Repeat Accuracy ±0.001mm
Input Power 1KW
Electrical Source 220V/single-phase/50Hz/10A
Machine Dimensions 1135x635x1310mm
Cooling System 670x300x475mm
