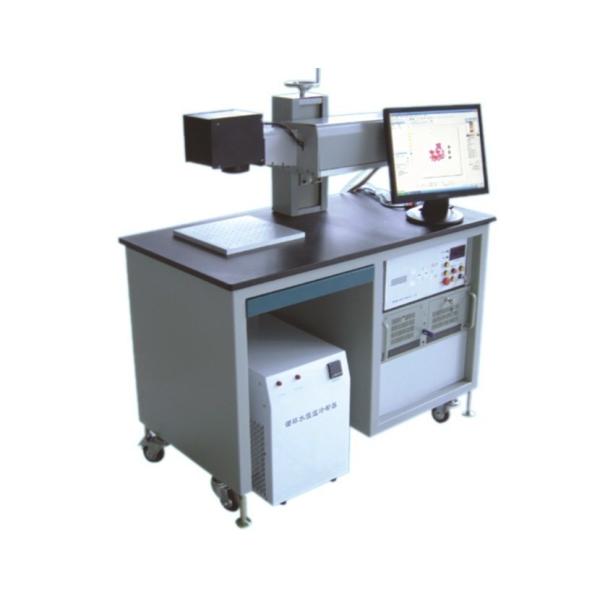

Computer Controlled Tabletop Laser Engraver , Precision Marking Laser Carving Machine
Computer Controlled Tabletop Laser Engraver , Precision Marking Laser Carving Machine
Specifications
Brand Name :
LEAD LASER
Model Number :
LD-EMK-CO2-45
Certification :
CE,FDA, ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
Price can be negotiated
Supply Ability :
500SET per year
Delivery Time :
15-20 working days
Packaging Details :
Standard wooden case at 550x750x550mm
Laser Wavelength :
932nm
Laser Source :
CO2 Metal Tube
Marking Range :
100x100mm
Marking Speed :
0-90M/Minute
Laser Deflexion System :
High Speed Scanner
Warranty :
2 Years
Working Method :
Computer Controlled
Maintenance :
Daily Free
Laser Power :
45W
Certificate :
FDA, ISO9001
Description

LD-EMK-CO2-45 45W Desk Style CO2 Laser Marking Machine For PET, PVC And Other Nonmetal Materials

Product Description


This type of marking is mainly used for continuous manufacturing processes where any standstills of the manufacturing plants would be uneconomical.

The highest demands on precision and speed of the marking laser. On the one hand, the laser machine must be designed for continuous industrial use. On the other hand, laser marking requires a specific software that takes the speed of the work pieces into account in order to ensure distortion-free marking.

Our marking lasers have been designed for continuous industrial operation and come with a sophisticated laser software to ensure distortion-free results when marking-on-the-fly. Moreover, our laser machines and the software have been designed for integration into existing plants and processes.

This laser markers are developed for efficient laser marking of metals and plastics along the industrial production chain. They offer the perfect combination of intelligent software with highest quality hardware.

It is available in different sizes with various configurations to meet individual requirements. Additionally, a broad range of options to customize your laser marking system is available.
Thanks to their thoughtful and robust design our laser markers guarantee absolute reliability and precision even in demanding environments. The galvo laser head is practically maintenance free.

Technical Data:

Max. Laser Power 45W
Laser Wavelength 1064nm
Repeat Fequency 20kHZ
Marking Range 100x100mm
Marking Contents Characters, symbol, logo, bar code, two-dimension code, graphics, image, full automatism serial number, batch number, real time clock, automatism date of manufacture and encrypt number at will
Marking Speed 0-70M/Minute (optional)
Min. Line Width 0.1mm
Marking Depth 3mm
Repeat Accuracy ±0.01mm
Min. Character Size 0.3mm-60mm (optional)
Marking Lines 1-10
Style of Characters Chinese, English, Figures and Logo
Image Direction 0o-360o (optional)
Scanner Direction 0o-90o (optional)
Information Memory Absoluteness
Character Height Absoluteness within marking range
Laser Deflexion System High Speed Scanner
Control System: Standard computer, true color LCD, Windows XP editor interface, operation in English, can editor figure, character and images.
Input Port Input interface of production inductor, non normal working input of on-line production
Output Port Alarm signal output for laser fault and environment exceed standard
Working Method Using equipped with customer’s product line or customized at the customer’s option
Input Power 700W
Electrical Source 220V/single-phase/60Hz/5A
Cooling System Air cooling
Machine Dimensions 350X550X320mm

Packaging Details
1. Inner package:plastic transparent film and white foam
2. Middle package:small pieces of wood and screws
3. Outside package:standard export wooden case
4. Customize according to your need.

Our Services

Professional sales representivie

We promise our customer that reply mail within 12 hours, respond online inquiry within 2 hours. Our professional sales

will help you choose the profer machine you need, not leading you to buy machine that we want to sale.
