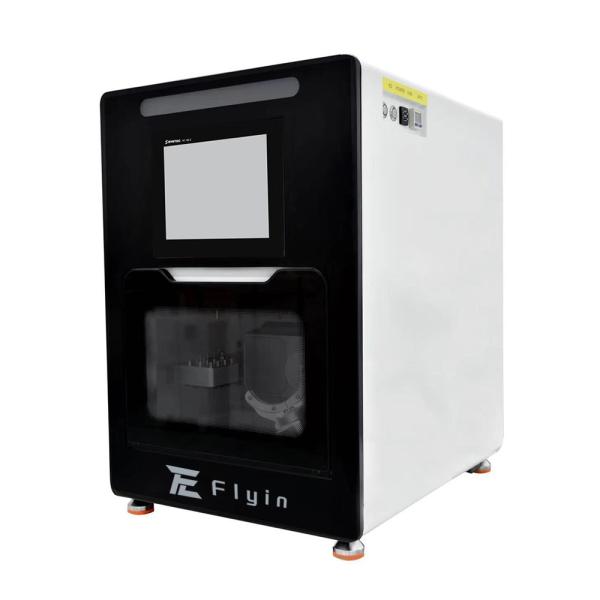

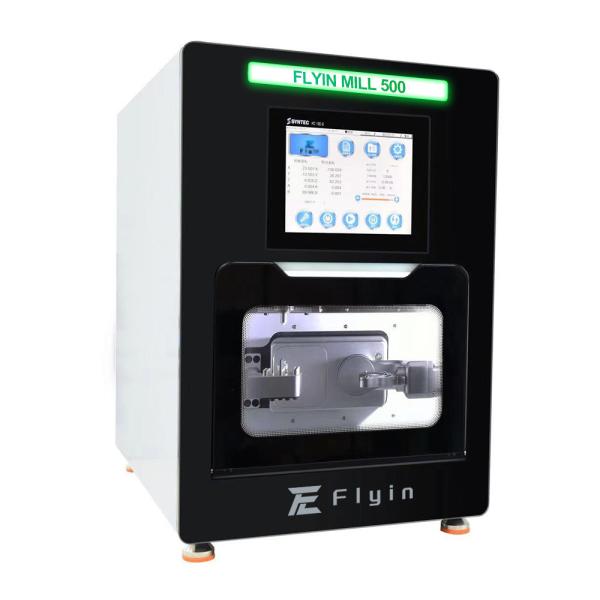

CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine
Specifications
Brand Name :
FLYIN
Model Number :
5Axis dental milling machine
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
USD 10000-15000 /pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5 work days
Material :
Acrylic+Metal
Gross Weight :
148Kgs
Processing Method :
five-axis linkage, manual milling
Main Engine Size :
450*250*450mm
Axis Movement :
X, Y, Z, A, B
Axis :
4 Axis 5 Axis
Quality :
high quality
Instrument Classification :
Class II
Certifications :
CE, FDA, ISO 13485
Dimension Whd :
55*56.5*46cm+45*25*45cm
Power :
800W
Milling Precision :
0.2mm
Power Requirements :
AC 100-240V, 50/60 Hz
Tool Changer :
Automatic 15-station tool changer
Drill Speed :
0-60000rpm / 500w
Description

High quality hot sale CAD CAM 5 axis dry milling machine Flyin dry milling machine Dry Cut Zirconia dental milling machine

Product Description:

FLYIN dental milling machine is a dry cutting equipment with five-axis linkage, designed
with micron-level high-precision cutting and high-reliability performance to provide you with a
more efficient, powerful, accurate and stable processing experience.

CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine

Advantage:

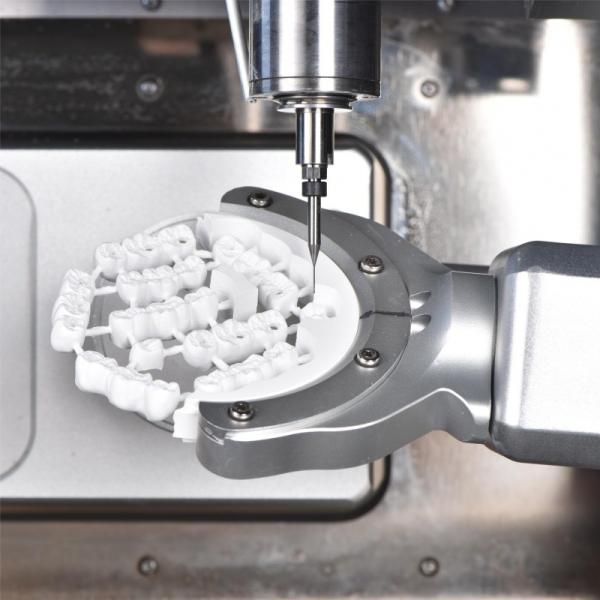

*90° Vertical Milling
The 90°Vertical Milling is good for milling of the anterior and allows for a fine texturing of the denture, providing the customer with a more perfect result.

*Large B-axis rotation
B-axis rotation angles up to +35°, -91°, so large angle implants can be processed

* 20% increased in material utilisation
The C-Clamp Adapter allowing the use of material edges and a 20% increase in material utilisation.

*Resume when interrupted
In case of an unexpected situation, processing can be automatically resumed from the last interrupted step, avoiding duplication of work and improving processing efficiency
CAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling MachineCAD CAM Dry Cut Zirconia Milling Machine 5 Axis Dry Milling Machine

Specifications:

Name:dental cad cam milling machine

Axis 5 Axis
Cut Method dry milling
Milling Materials zirconia block, pmma, pmma, wax
Size of milling materials φ98, thickness(10-30mm)
Range of rotation & tling rotation x/y/z: 105 / 135/ 90 A:360° B:120°
Speed of Principal axis 0-60000rpm / 500w
Driver Full rotation servo motor drive

cutters 10 tools; φ4mm
Compressed Air: 4.5-7.5bar;50ml/min
Min Capacity-Dry: 3000L/min
Power requirment : 800W;220-230v AC,56/60 hz

Machinable denture type:

It can work on crown, bridge,coping,veneer, inlay, onlay, large-angle implants, abutment and other dental restoration case.

Pre-sale and after-sale service:

*Quality control department

Testing of all products before shipping

*Strict and complete production system
Efficient delivery, all orders delivered within a week
* After-sales guarantee
One year free replacement of spare parts, lifetime after-sales service
*Perfect after-sales system
After-sales service personnel, including mechanical engineers, software engineers, dental technicians, are available for you 24 hours a day, 7 days a week.
